Main Relay: Removal

  1. Disconnect battery ground cable.

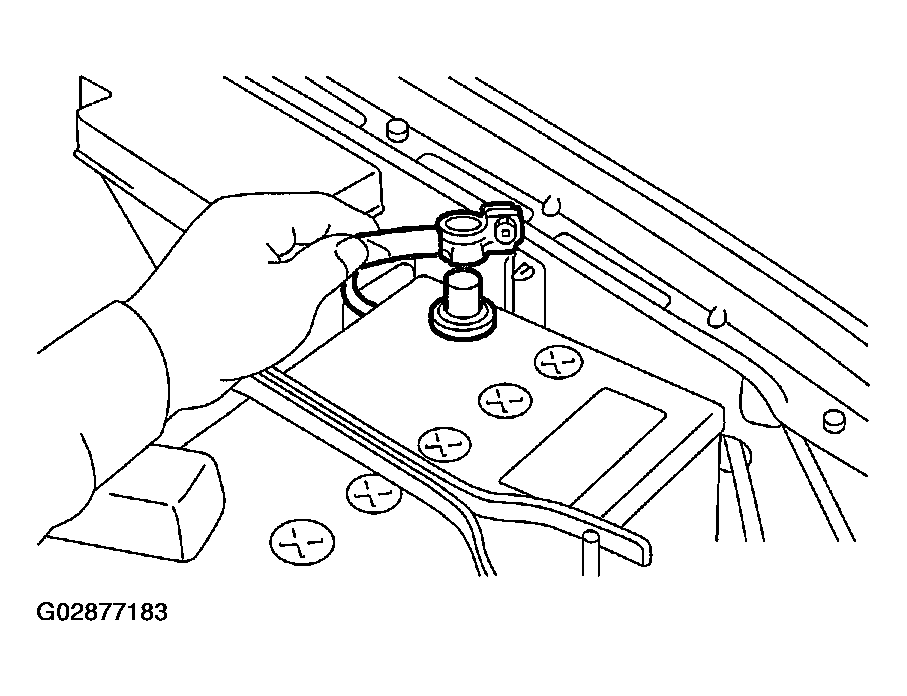

    Fig 1: Disconnecting Battery Ground Cable
    G02877183Courtesy of SUBARU OF AMERICA, INC.
  2. Remove lower inner trim of passenger side. < Ref. to REMOVAL , Lower Inner Trim.>
  3. Disconnect connectors from main relay.
  4. Remove bolt which holds main relay bracket on body.

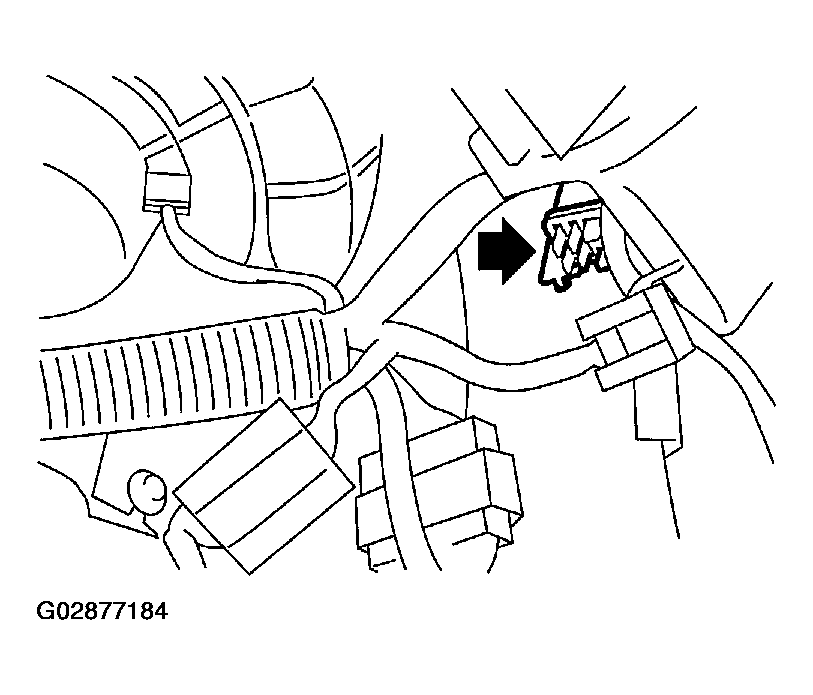

    Fig 2: Removing Main Relay Bracket Bolt
    G02877184Courtesy of SUBARU OF AMERICA, INC.
