1. Impact Sensitivity

NOTE: Before adjustment, make sure the security control module has been securely installed on the bracket.
  1. Remove the security control module. Refer to REMOVAL , Security Control Module.
  2. Adjust the sensitivity adjust screw in the security control module.
    NOTE: After adjusting, be sure to plug the adjust screw hole.

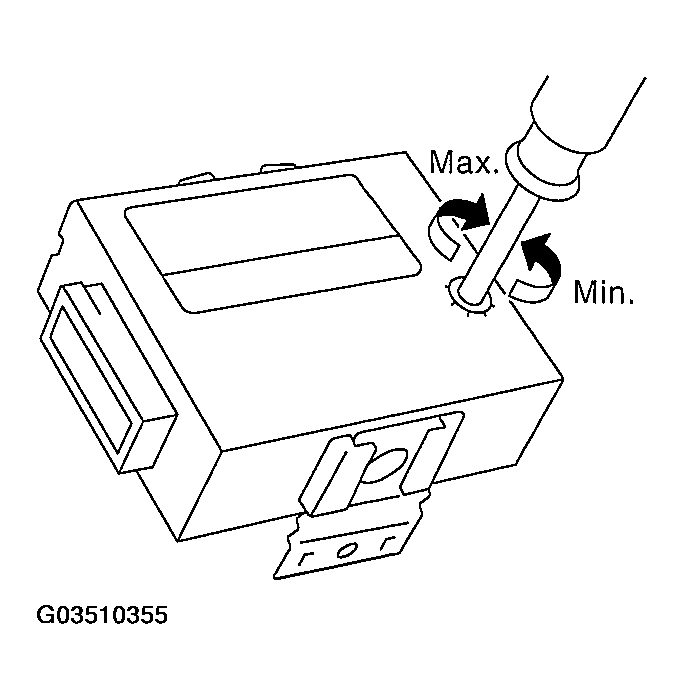

    Fig 1: Adjusting Sensitivity Adjust Screw In Security Control Module
    G03510355Courtesy of SUBARU OF AMERICA, INC.
  3. Install the security control module.
  4. Perform the impact sensitivity test.
