Control Module I/O Signal: Schematic

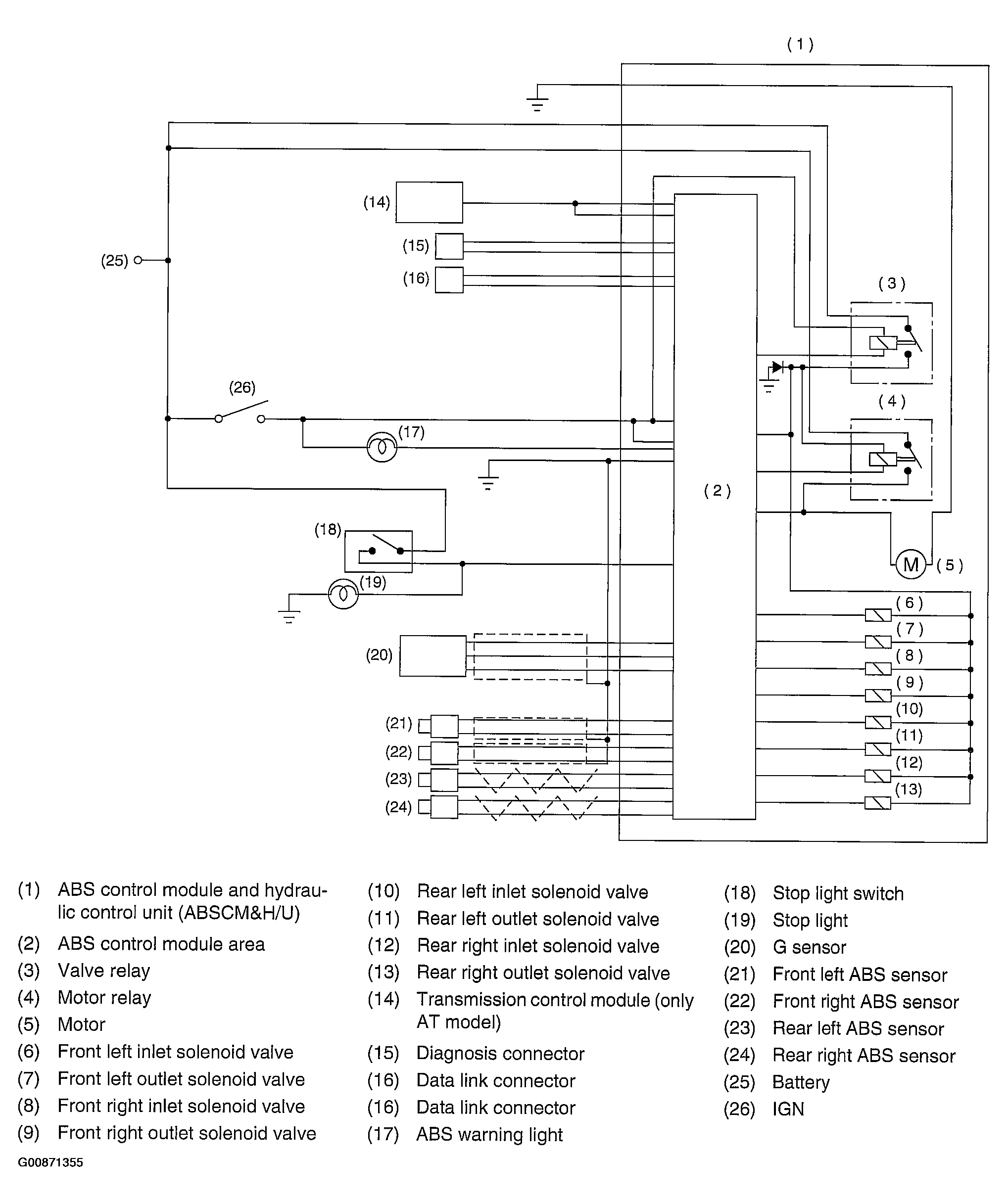

Fig 1: Schematic

G00871355

Courtesy of SUBARU OF AMERICA, INC.
