Crankshaft Position Sensor: Installation

Install in the reverse order of removal.

1. Tightening torque:

   T:  6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

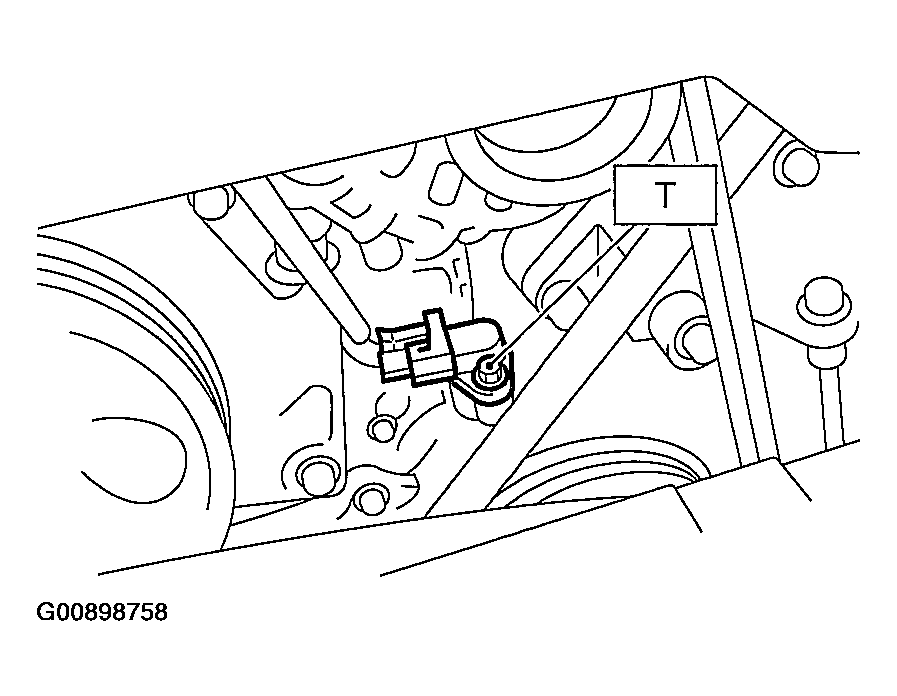

   Fig 1: Installing Crankshaft Position Sensor

   Courtesy of SUBARU OF AMERICA, INC.
