Engine Coolant Temperature Sensor: Removal

  1. Disconnect ground cable from battery.

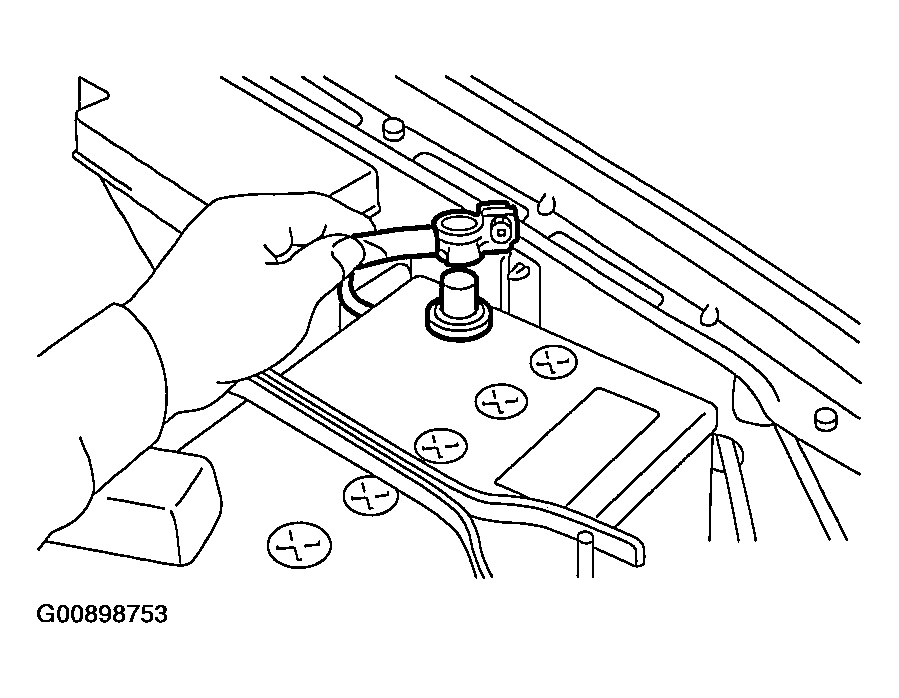

    Fig 1: Disconnecting Ground Cable From Battery
    G00898753Courtesy of SUBARU OF AMERICA, INC.
  2. Remove air intake duct and air cleaner case. Refer to REMOVAL , Air Intake Duct and REMOVAL , Air Cleaner Case.
  3. Disconnect connector from engine coolant temperature sensor.

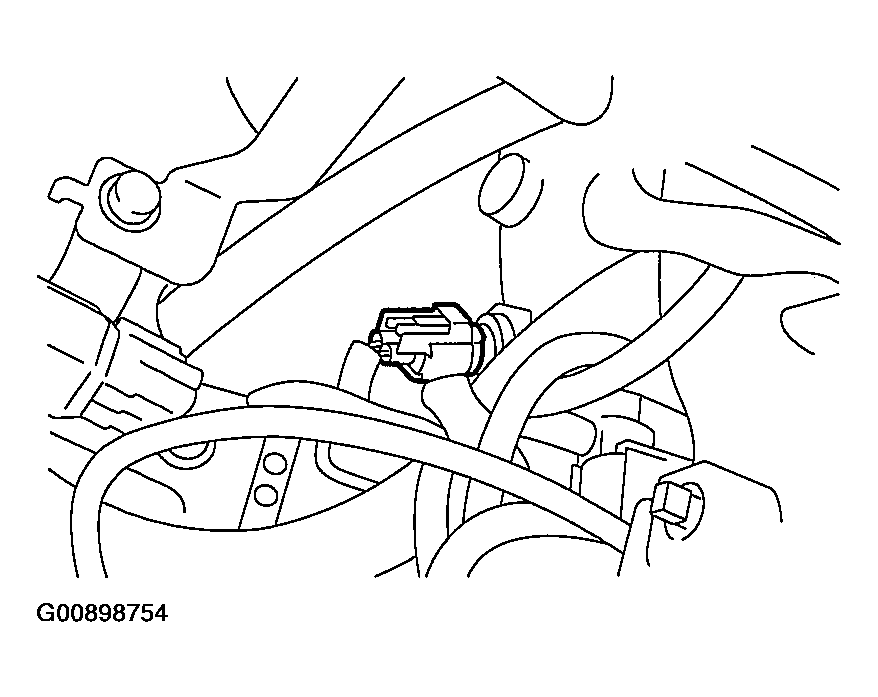

    Fig 2: Disconnecting Connector From Engine Coolant Temperature Sensor
    G00898754Courtesy of SUBARU OF AMERICA, INC.
  4. Remove engine coolant temperature sensor.
