Fuel Pump: Disassembly

  1. Remove fuel pump and pump holder.
    NOTE: When disassembling pump holder, be careful as it is installed with two pawls.

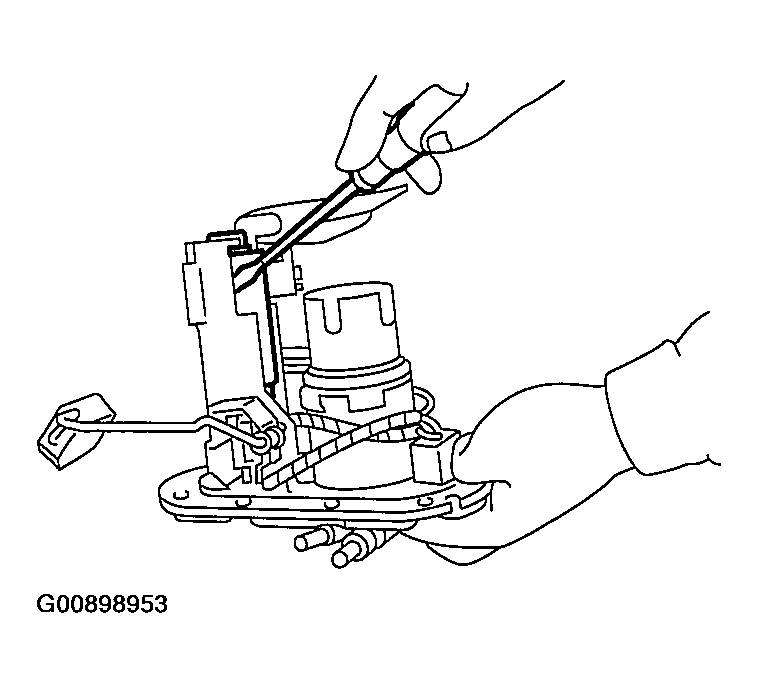

    Fig 1: Removing Fuel Pump & Pump Holder
    G00898953Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from fuel pump.

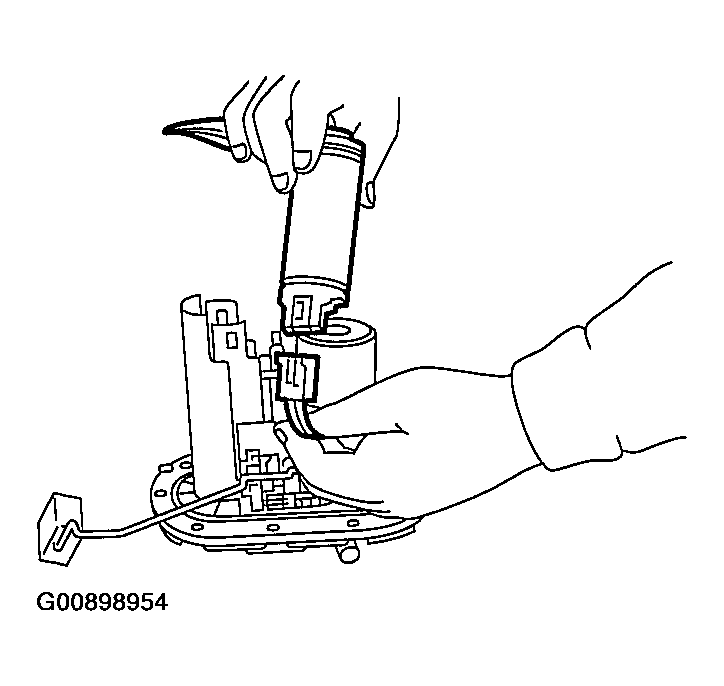

    Fig 2: Removing Connector From Fuel Pump
    G00898954Courtesy of SUBARU OF AMERICA, INC.
