Intake Air Temperature Sensor: Removal

  1. Disconnect ground cable from battery.

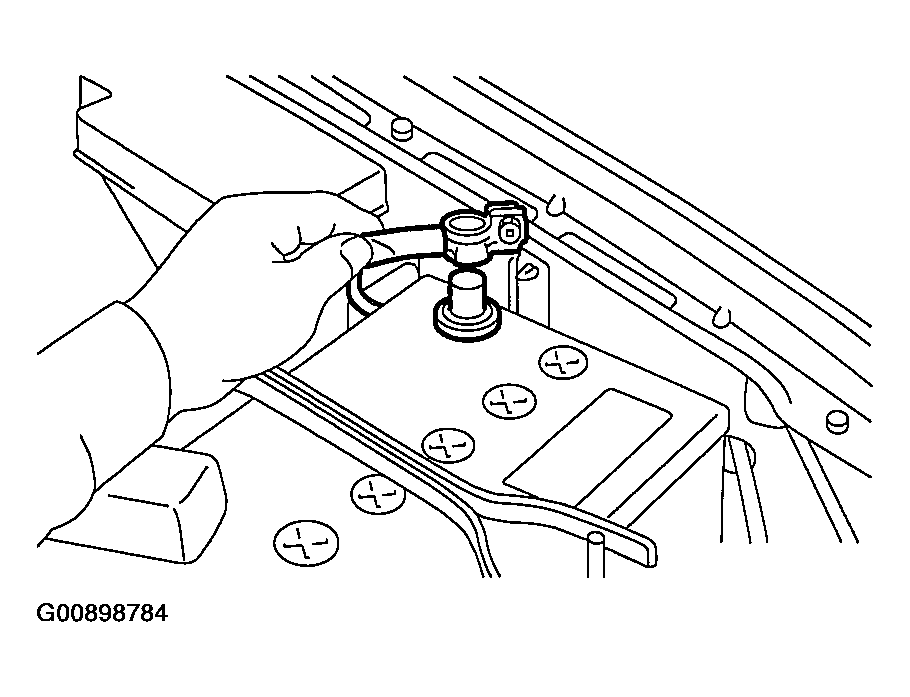

    Fig 1: Disconnecting Ground Cable From Battery
    G00898784Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from the intake air temperature sensor.
  3. Remove the intake air temperature sensor from air cleaner case.

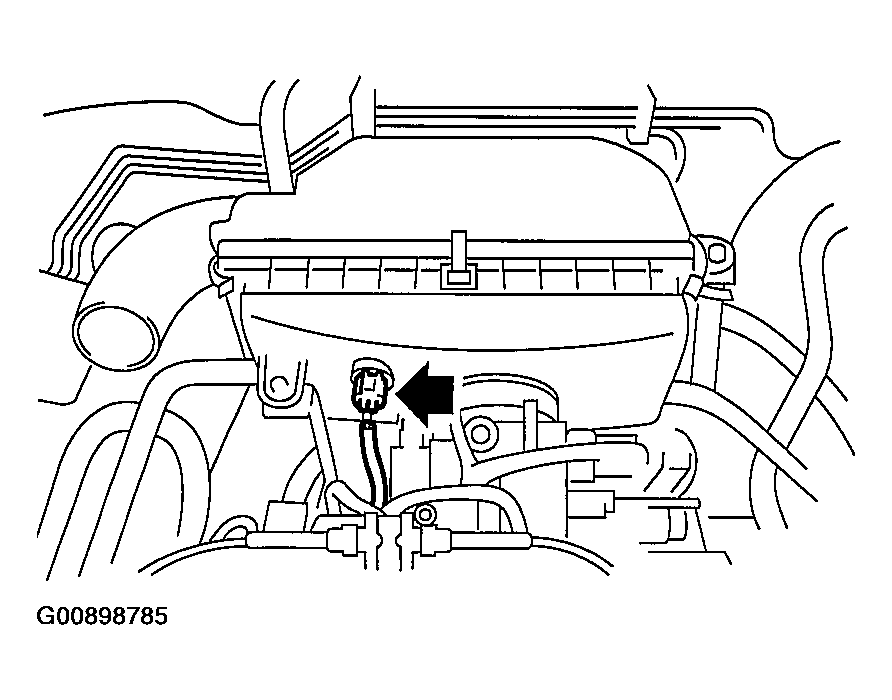

    Fig 2: Removing Intake Air Temperature Sensor From Air Cleaner Case
    G00898785Courtesy of SUBARU OF AMERICA, INC.
