Electrical Components Location: Location: Engine

MODULE

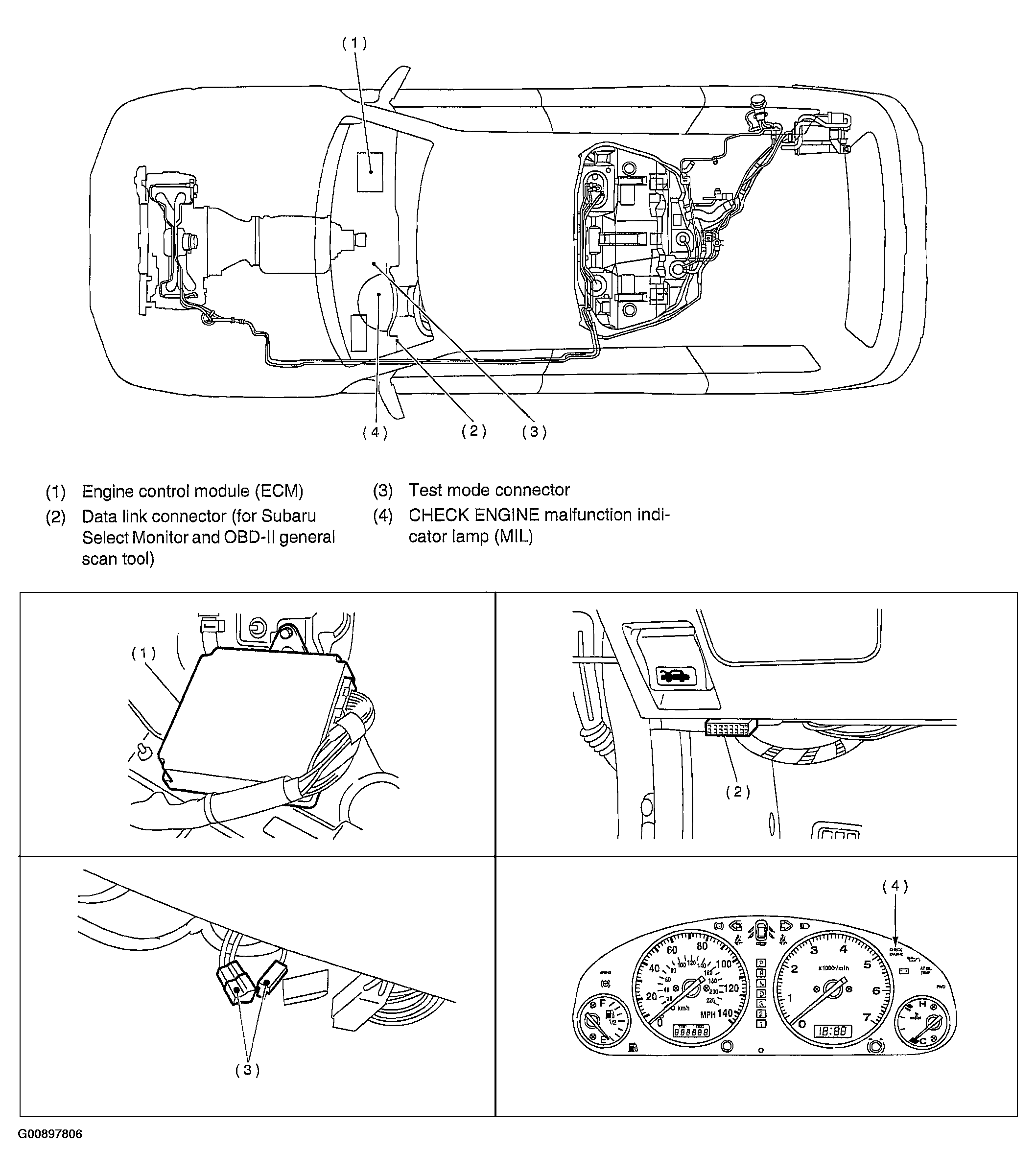

Fig 1: Identifying Engine Module (Electrical Components Location)
Courtesy of SUBARU OF AMERICA, INC.
SENSOR

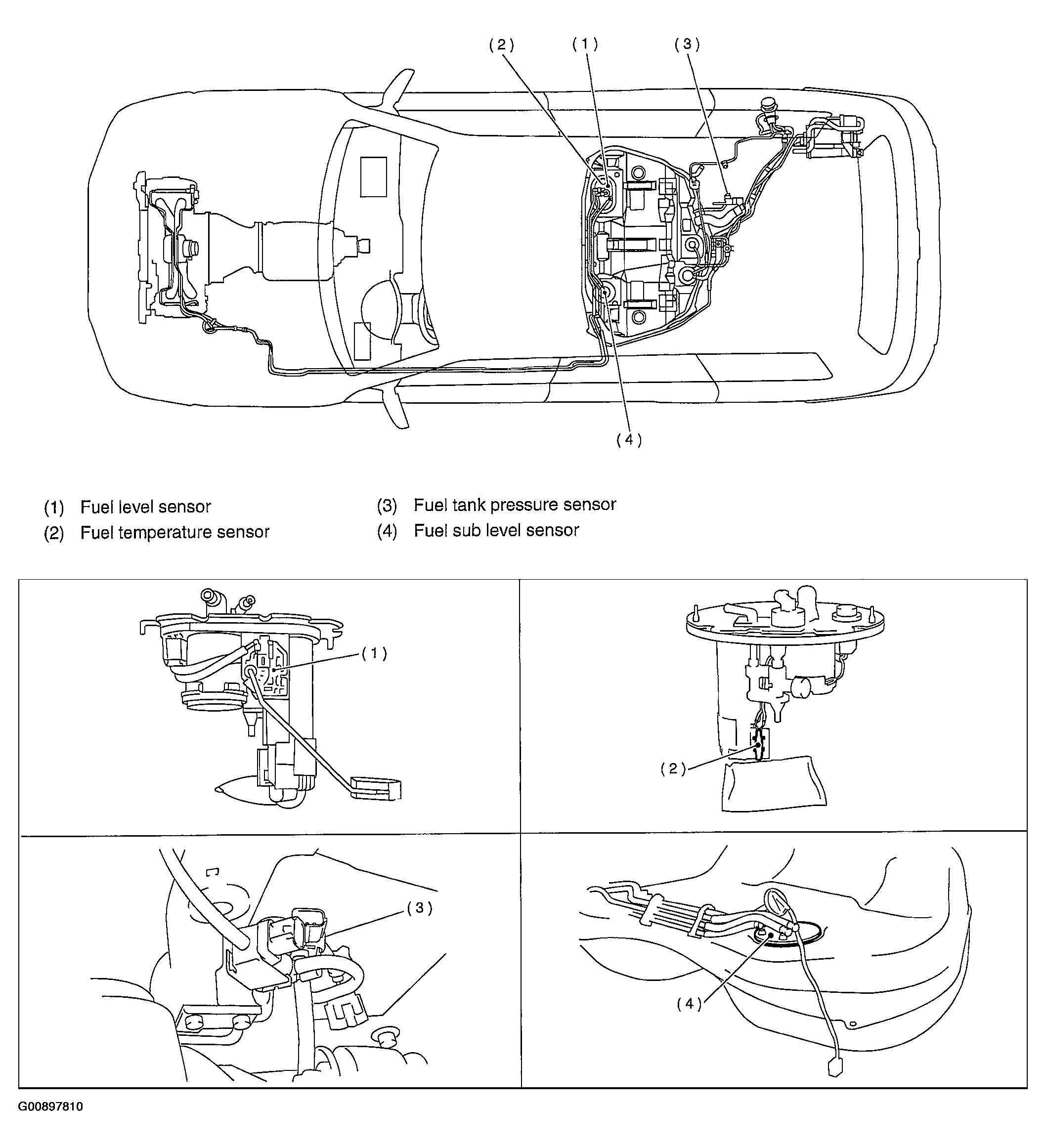

Fig 2: Identifying Sensor (Electrical Components Location) (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

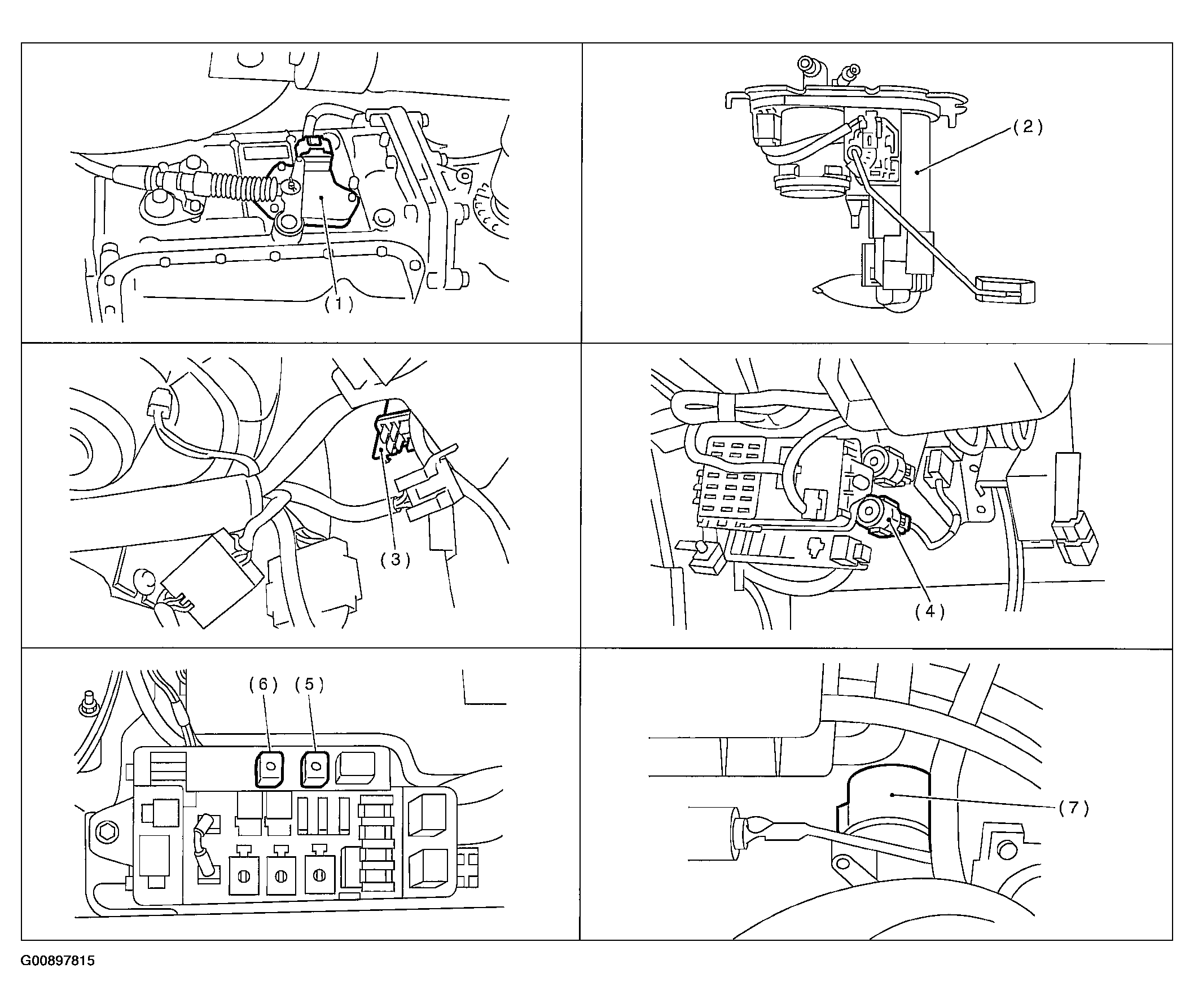

Fig 3: Identifying Sensor (Electrical Components Location) (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

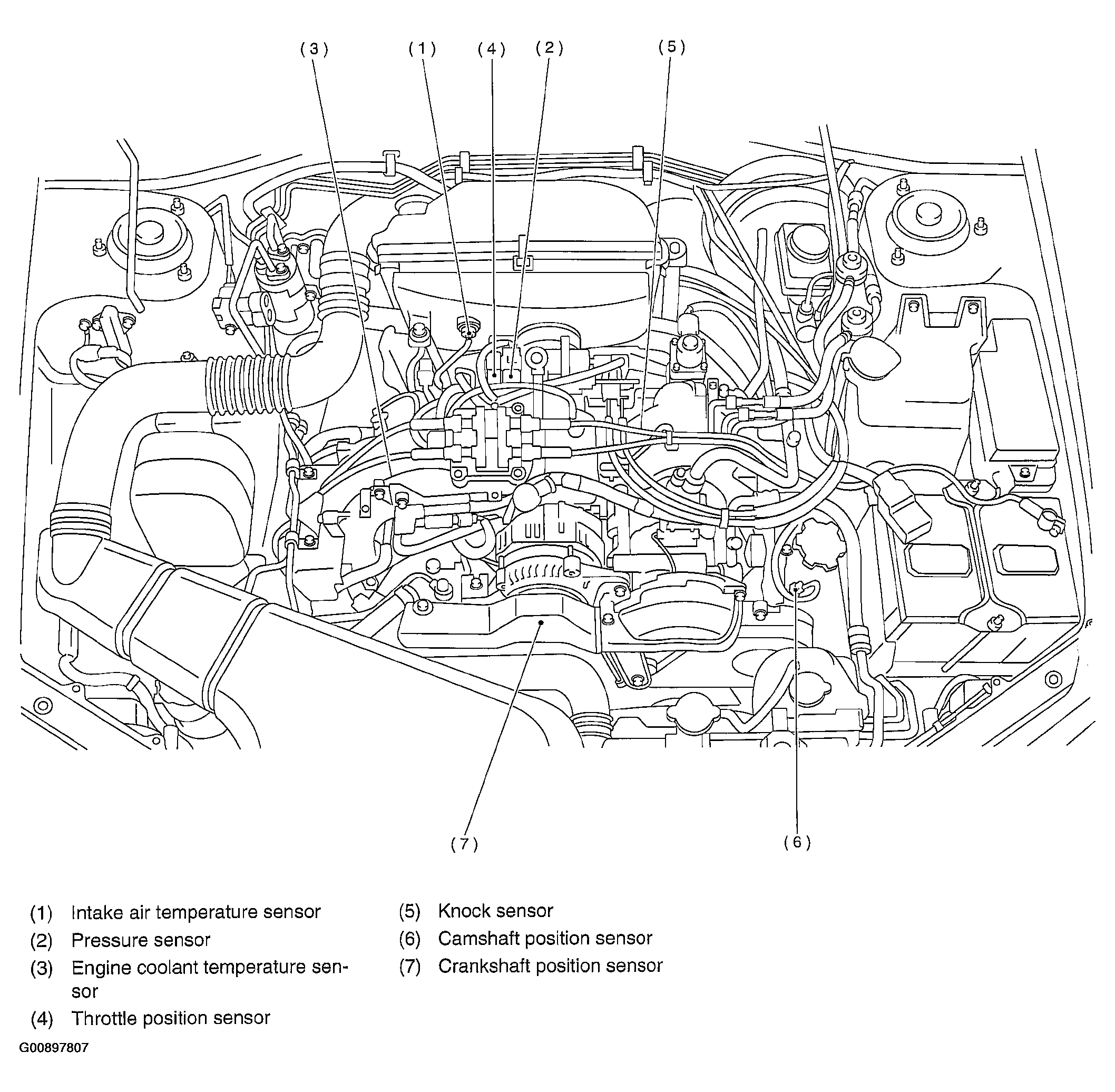

Fig 4: Identifying Sensor (Electrical Components Location) (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Sensor (Electrical Components Location) (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

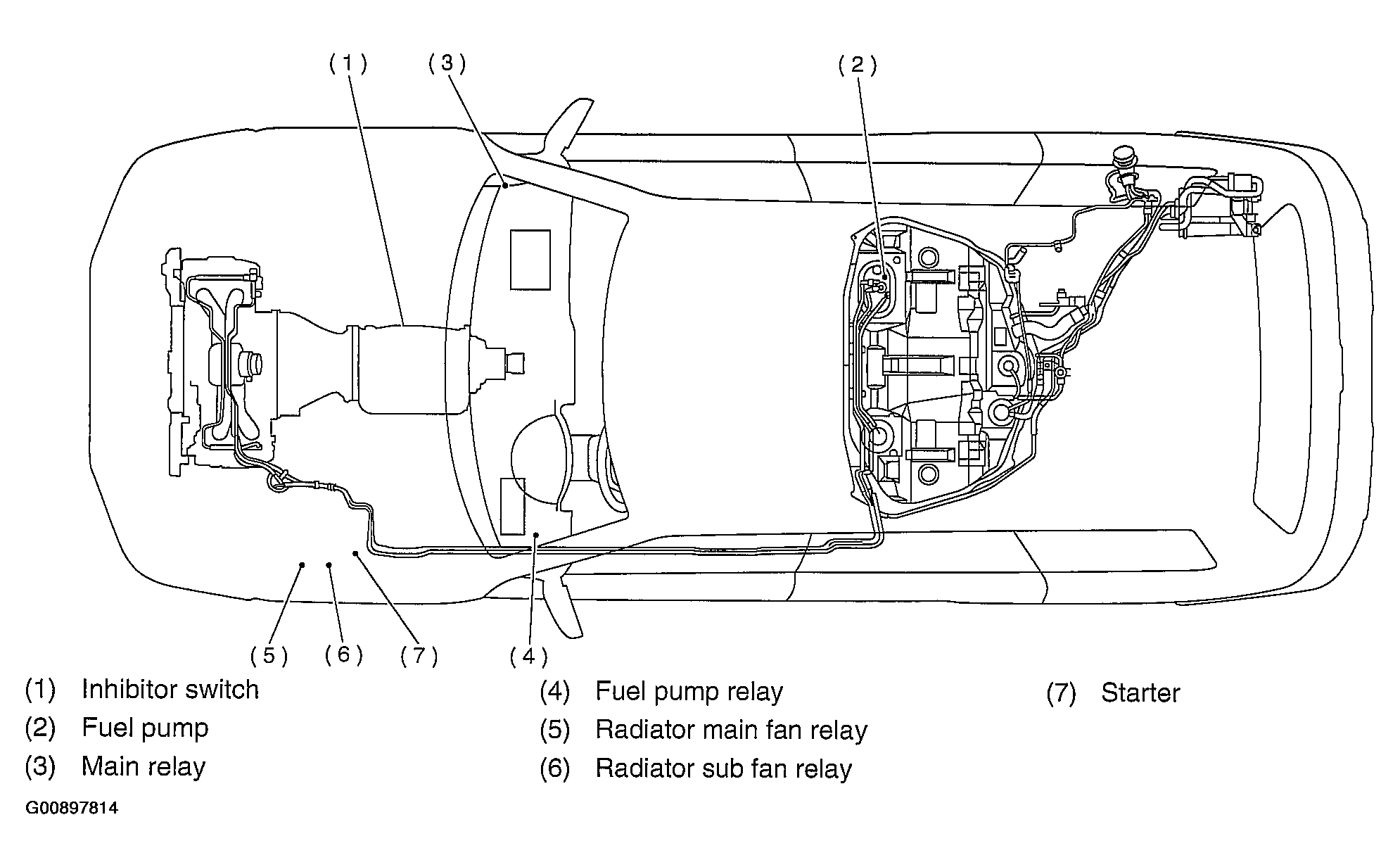

SOLENOID VALVE, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS

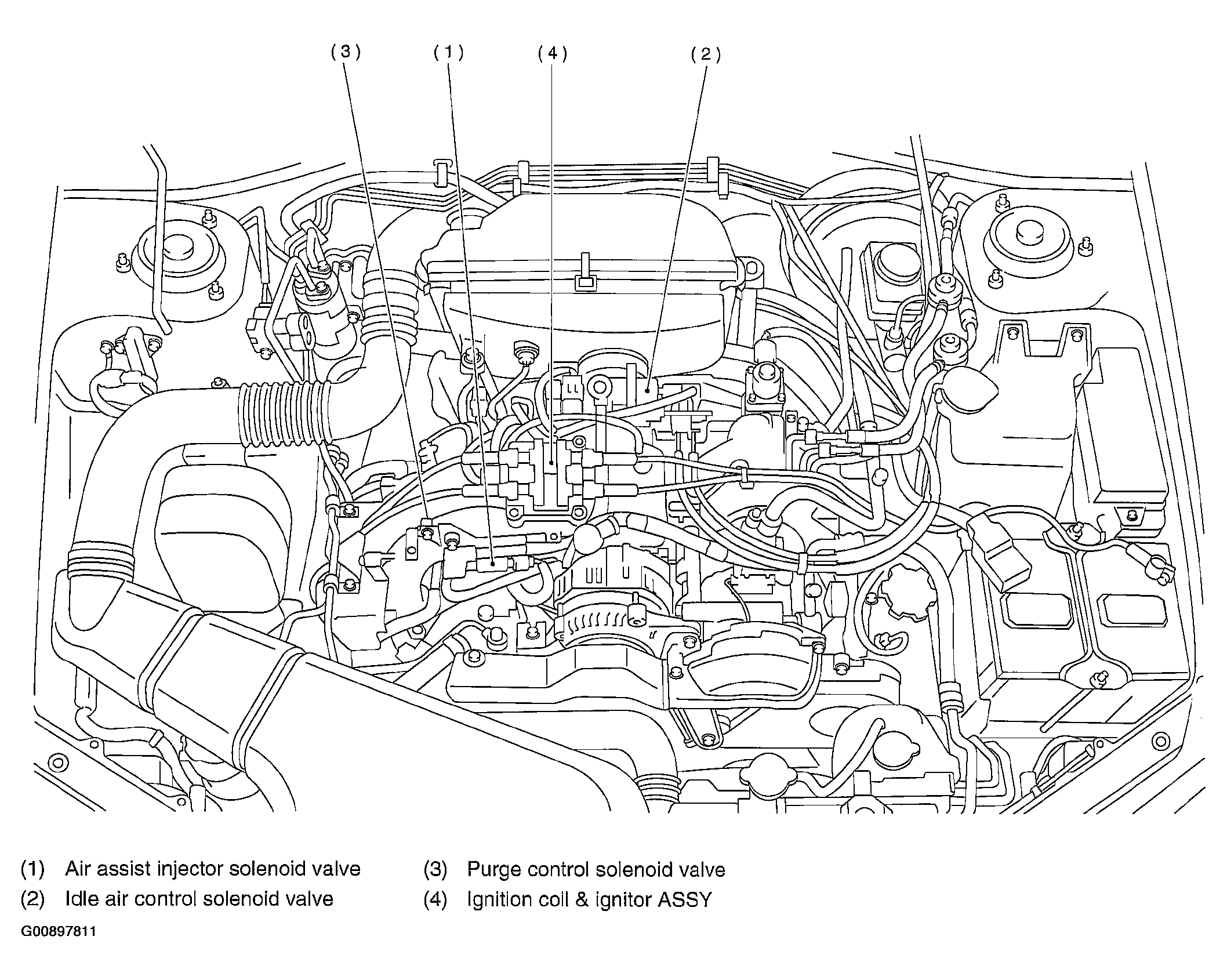

Fig 6: Identifying Solenoid Valve, Emission Control System Parts & Ignition System Parts (1 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

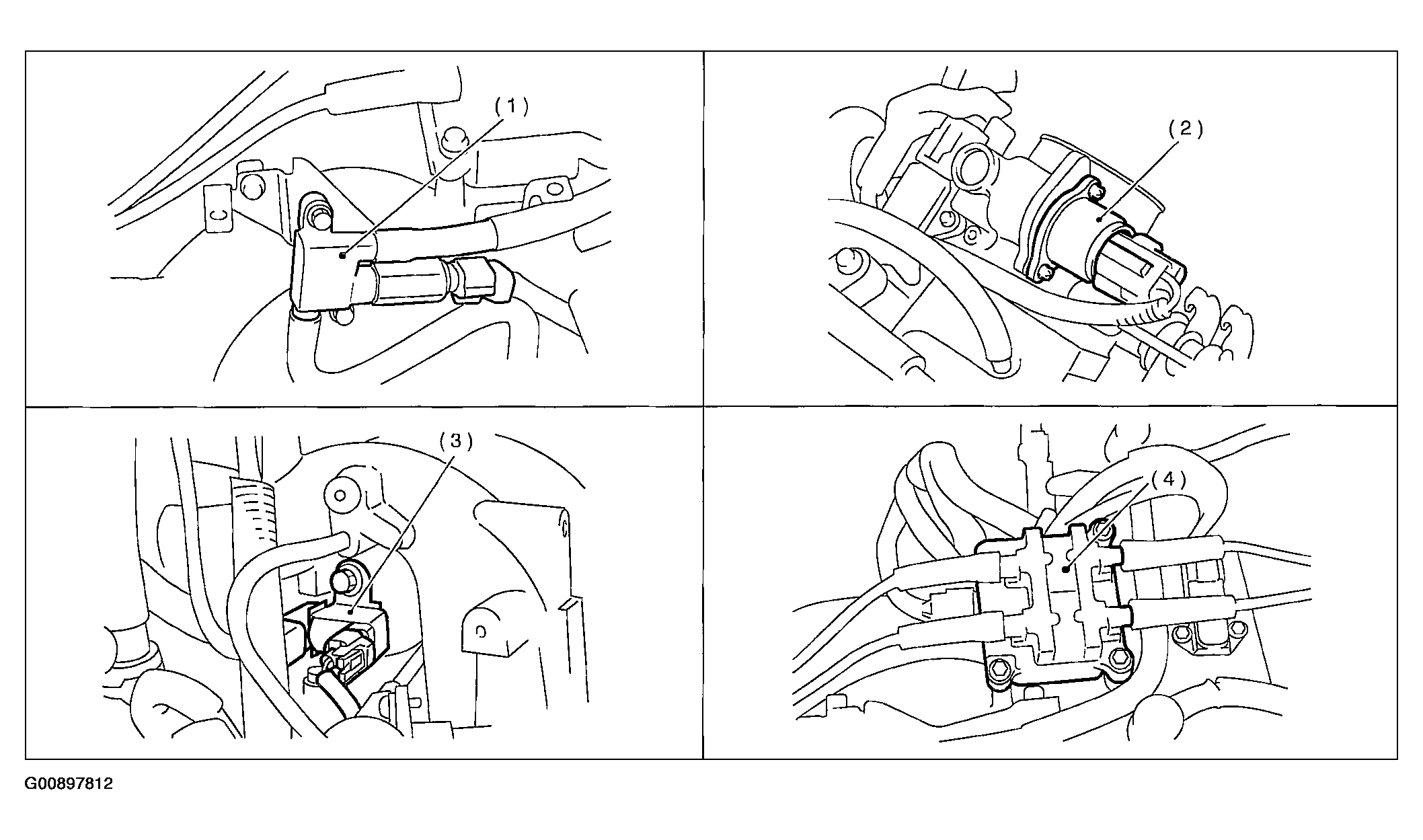

Fig 7: Identifying Solenoid Valve, Emission Control System Parts & Ignition System Parts (2 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Solenoid Valve, Emission Control System Parts & Ignition System Parts (3 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

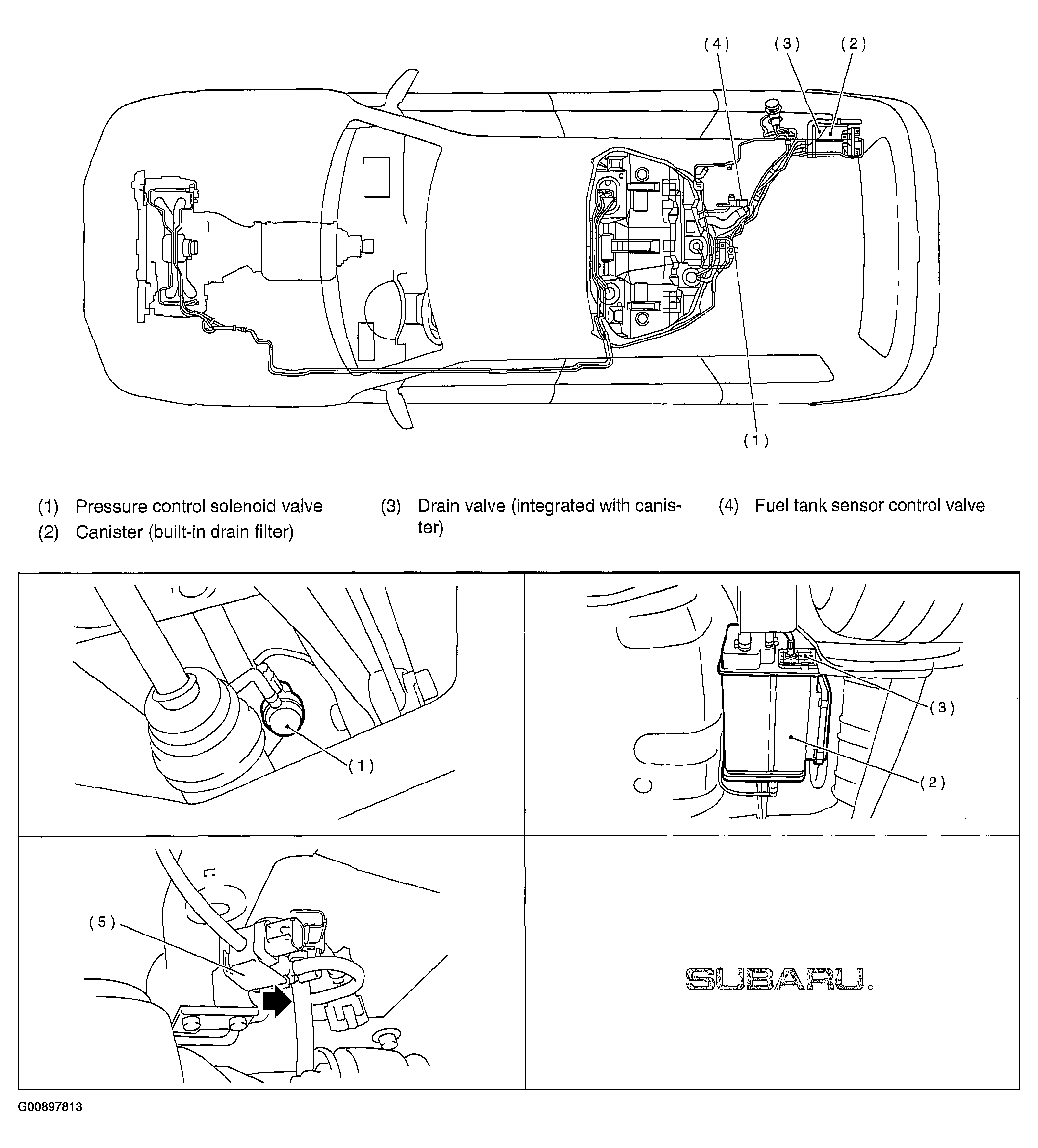

Fig 9: Identifying Solenoid Valve, Emission Control System Parts & Ignition System Parts (4 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Identifying Solenoid Valve, Emission Control System Parts & Ignition System Parts (5 Of 5)
Courtesy of SUBARU OF AMERICA, INC.
