Dropping Resistor: Installation
Install in the reverse order of removal.
Tightening torque: 13 N.m (1.3 kgf.m, 10 ft.lb)

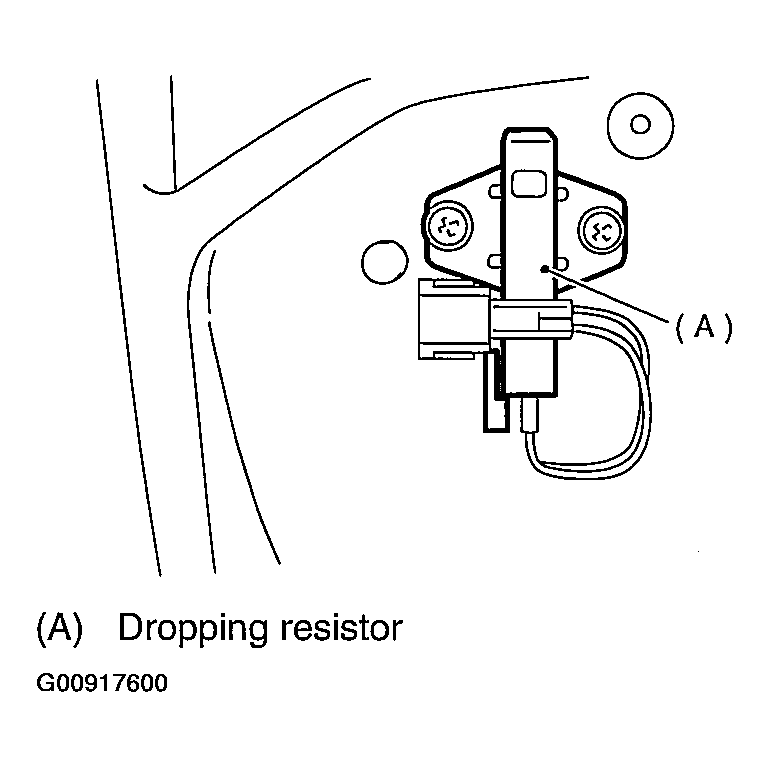

Fig 1: Installing Dropping Resistor
Courtesy of SUBARU OF AMERICA, INC.
