Dropping Resistor: Removal
NOTE:
Dropping resistor is installed except VDC or SPORT shift and U5 model.

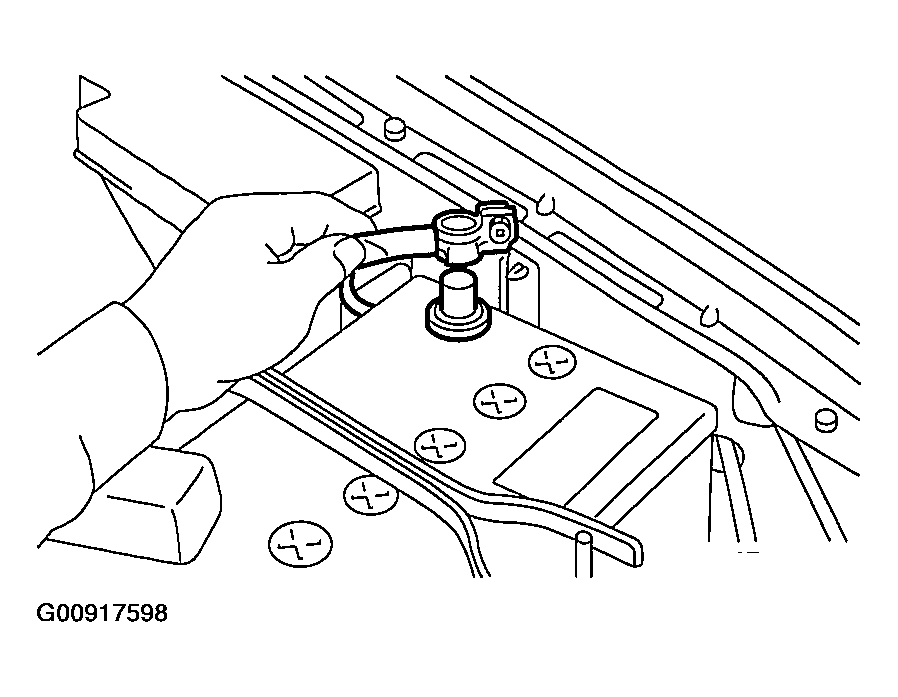

- Disconnect the ground cable from battery.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the air intake duct.
2.5 L model
Refer to
REMOVAL
, Air Cleaner Case.
3.0 L model
Refer to
REMOVAL
, Air Intake Duct.
- Disconnect the connector from dropping resistor.

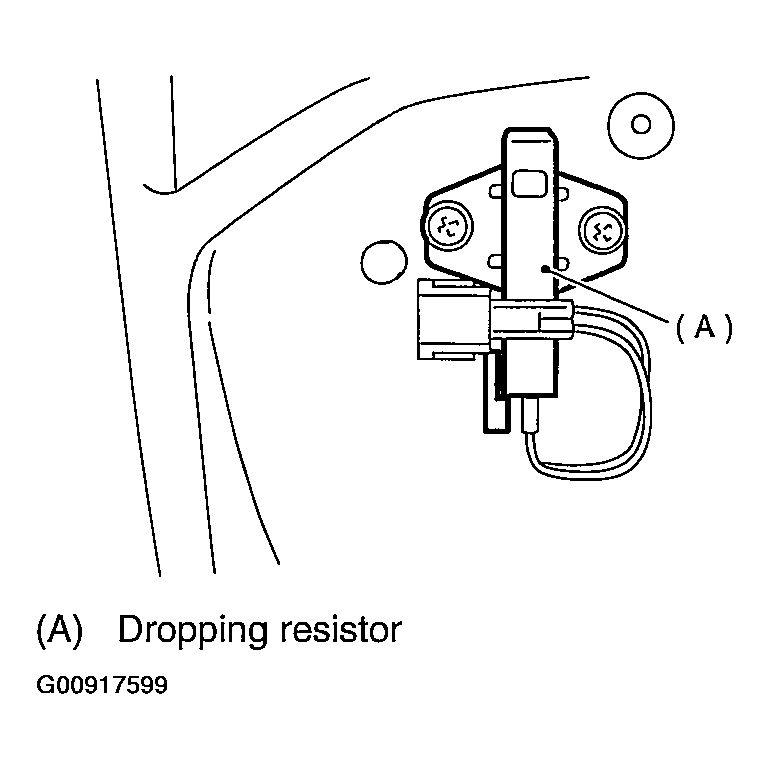

- Remove the dropping resistor.
Courtesy of SUBARU OF AMERICA, INC.
