Reduction Drive Gear: Assembly
- Press-fit the reduction drive gear to the shaft.
- Press-fit a new ball bearing to the reduction drive gear.

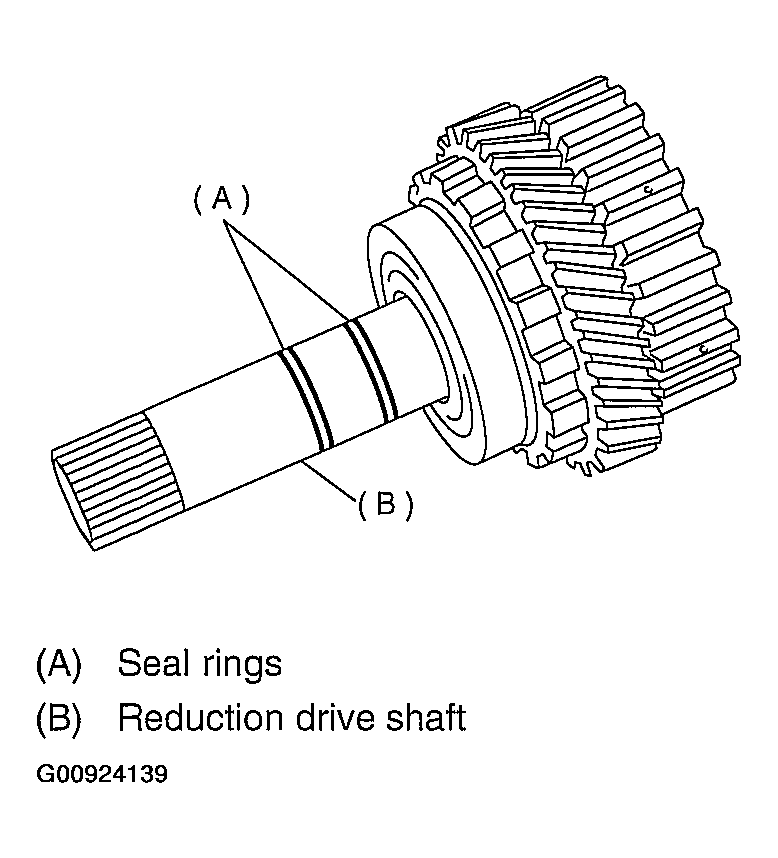

- Apply vaseline to the outer surface of seal ring and shaft groove.
- Attach a new seal rings.
Courtesy of SUBARU OF AMERICA, INC.
