Reduction Driven Gear: Assembly

  1. Install snap ring to reduction driven gear.
  2. Using a press, install a new ball bearing to reduction driven gear.

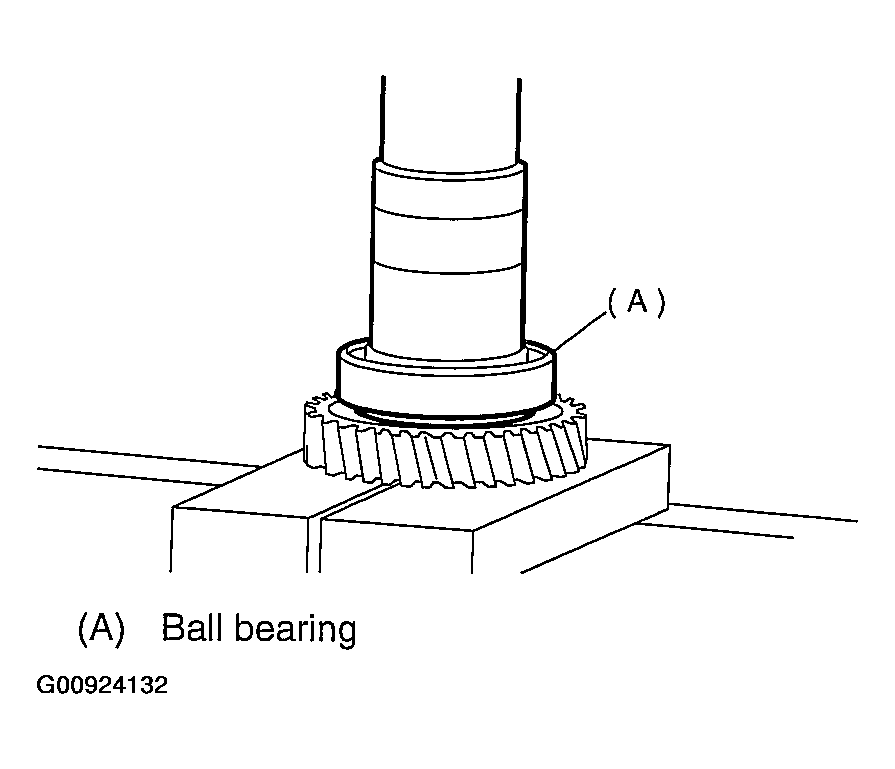

    Fig 1: Installing Ball Bearing To Reduction Driven Gear Using Special Tool
    G00924132Courtesy of SUBARU OF AMERICA, INC.
  3. Install snap ring to reduction driven gear.

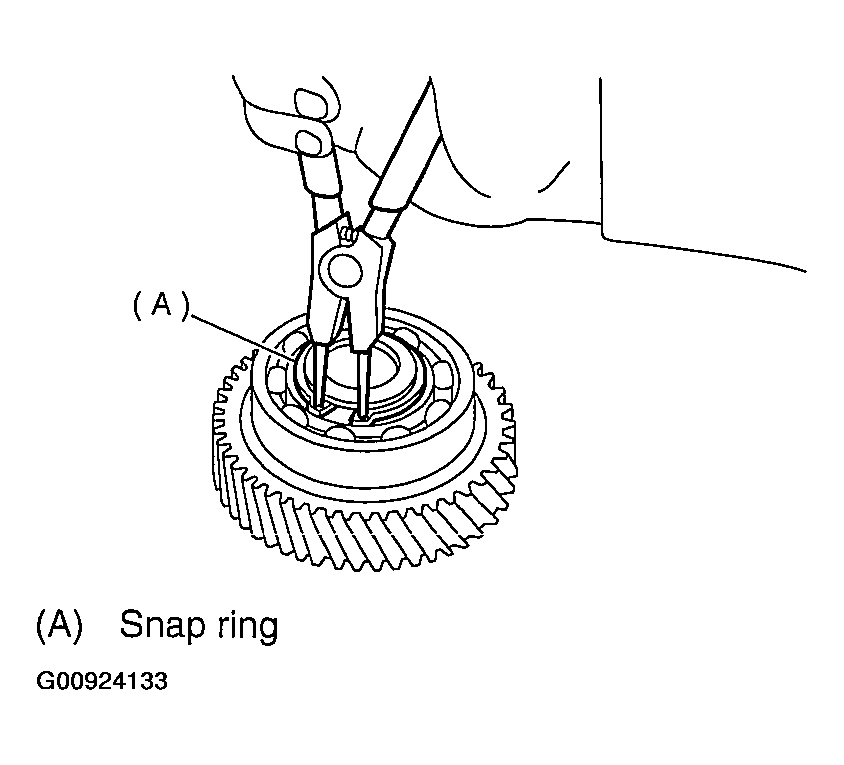

    Fig 2: Installing Snap Ring To Reduction Driven Gear
    G00924133Courtesy of SUBARU OF AMERICA, INC.
