Reduction Driven Gear: Disassembly

  1. Remove snap ring from reduction driven gear.
    Fig 1: Removing Snap Ring From Reduction Driven Gear
    G00924130Courtesy of SUBARU OF AMERICA, INC.
  2. Using ST, remove ball bearing from reduction driven gear.

    ST 498077600 REMOVER

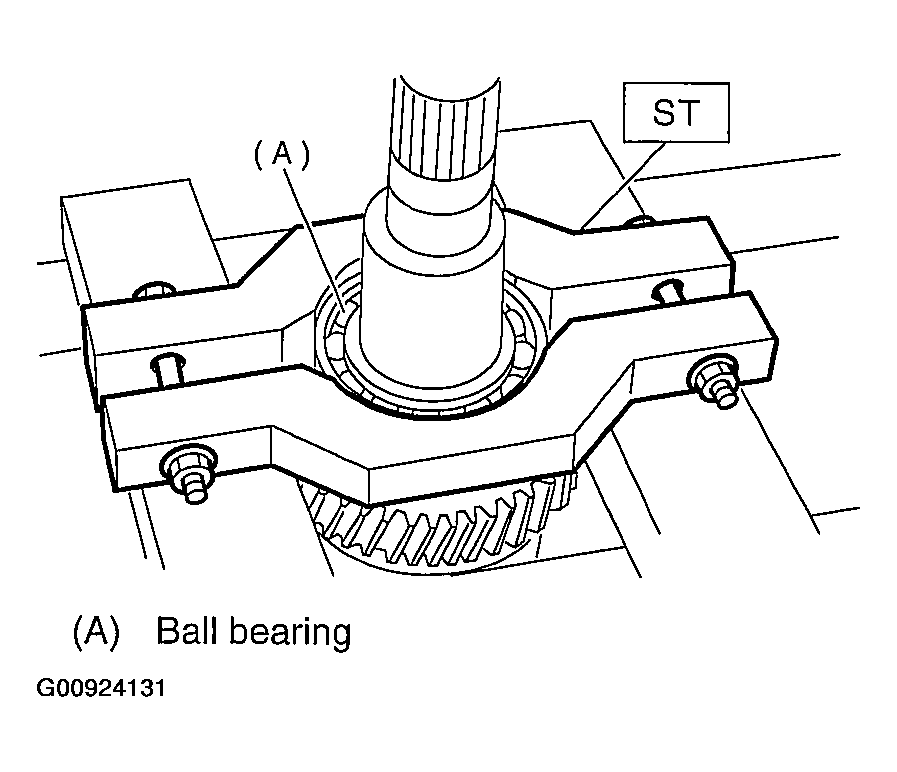

    Fig 2: Removing Ball Bearing From Reduction Driven Gear Using Special Tool
    G00924131Courtesy of SUBARU OF AMERICA, INC.
  3. Remove snap ring reduction driven gear.
