Reduction Driven Gear: Installation

MPT MODEL
1. Set the select lever to "P" range.
2. Using a plastic hammer, install reduction driven gear assembly and new washer, and tighten new drive pinion lock nut.
  1. Tightening torque: 100 N.m (10.2 kgf-m, 73.8 ft-lb)

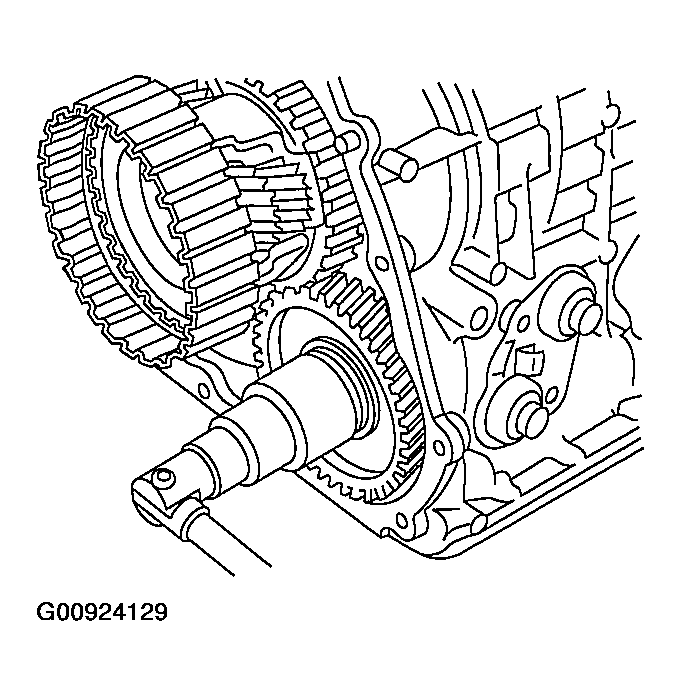

  Fig 1: Tightening Drive Pinion Lock Nut Using Special Tool
  Courtesy of SUBARU OF AMERICA, INC.
3. After tightening, stake the lock nut securely.
4. Combine the transmission case with the extension case, and install rear vehicle speed sensor. Refer to INSTALLATION .
5. Install the transmission assembly to vehicle. Refer to INSTALLATION .
VTD MODEL
1. Set the select lever to "P" range.
2. Using a plastic hammer, install reduction driven gear assembly.
3. Using a plastic hammer, install the center differential assembly.
4. Install a new self-lock nut and a washer.
  1. Tightening torque: 100 N.m (10.2 kgf-m, 73.8 ft-lb)
  Fig 2: Installing Self-Lock Nut & Washer
  Courtesy of SUBARU OF AMERICA, INC.
5. After tightening, stake the lock nut securely.
6. Insert the rear drive shaft assembly. Refer to INSTALLATION .
7. Combine the transmission case with the extension case, and install rear vehicle speed sensor. Refer to INSTALLATION .
8. Install the transmission assembly to vehicle. Refer to INSTALLATION .
