Transfer Clutch: Assembly

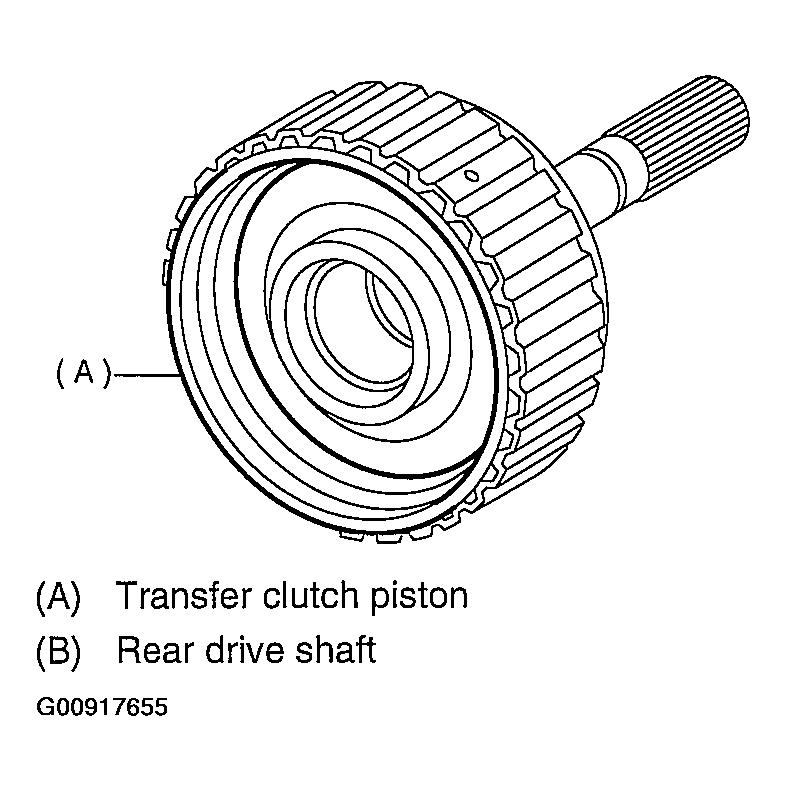

Install the transfer clutch piston.

Fig 1: Installing Transfer Clutch Piston
Courtesy of SUBARU OF AMERICA, INC.

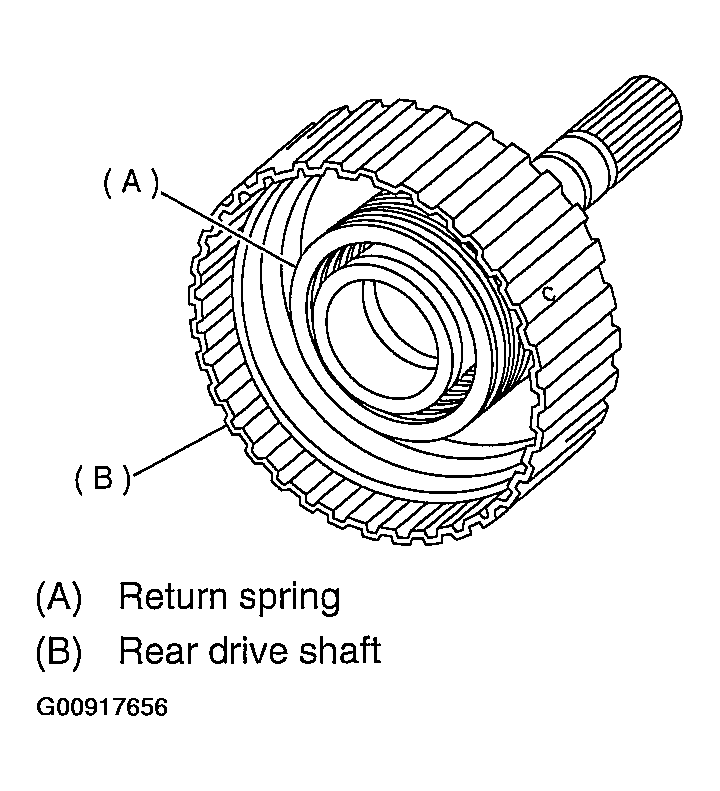

Install return spring to transfer piston.

Fig 2: Installing Return Spring To Transfer Piston
Courtesy of SUBARU OF AMERICA, INC.

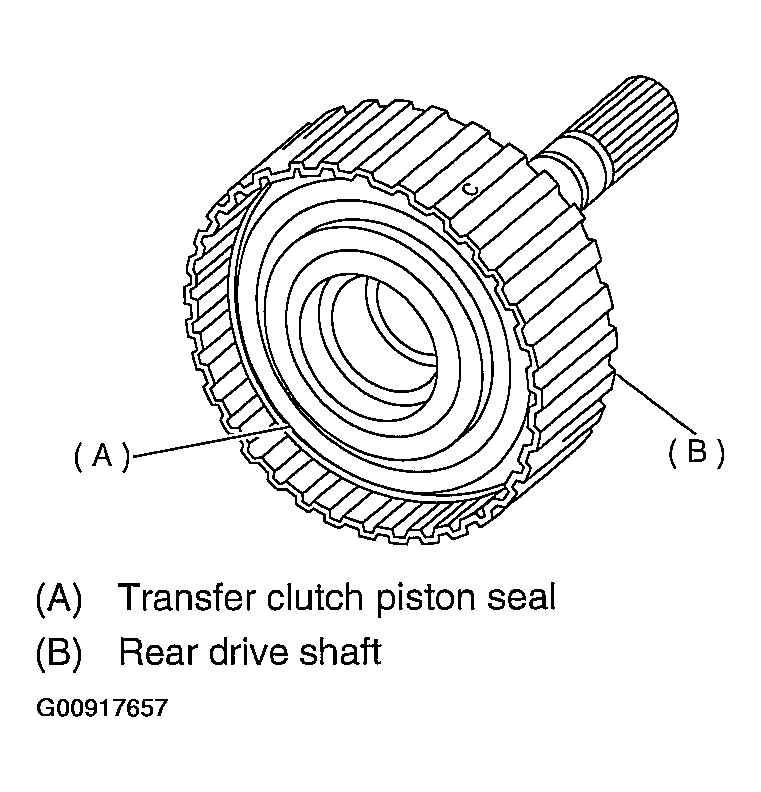

Install transfer clutch piston seal.

Fig 3: Installing Transfer Clutch Piston Seal
Courtesy of SUBARU OF AMERICA, INC.

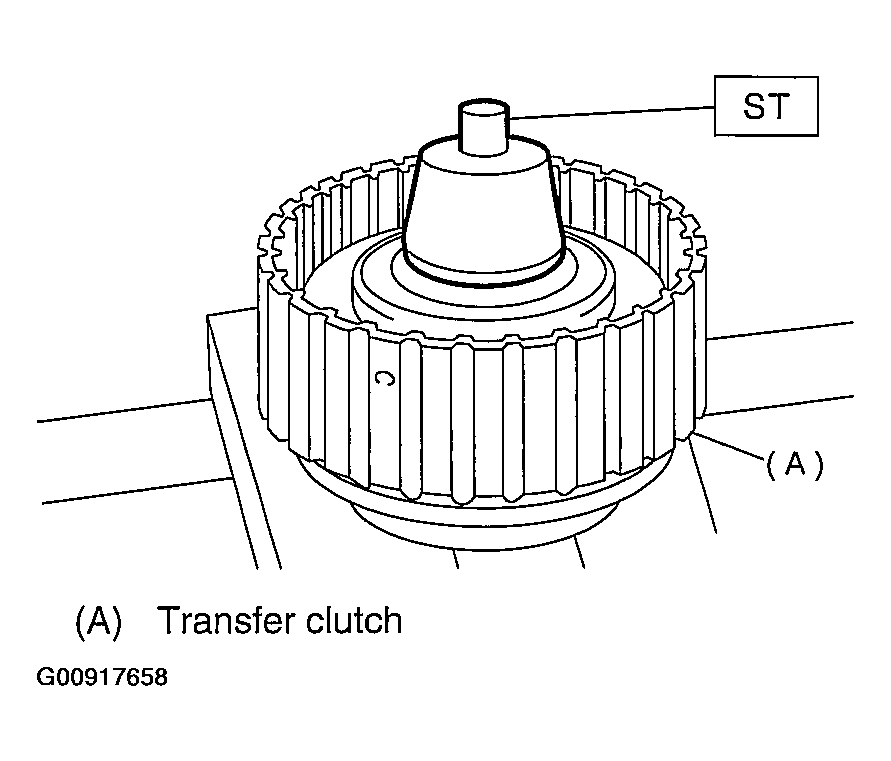

Install ST to rear drive shaft.
1. ST 499257300 SNAP RING OUTER GUIDE
Fig 4: Installing ST To Rear Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.

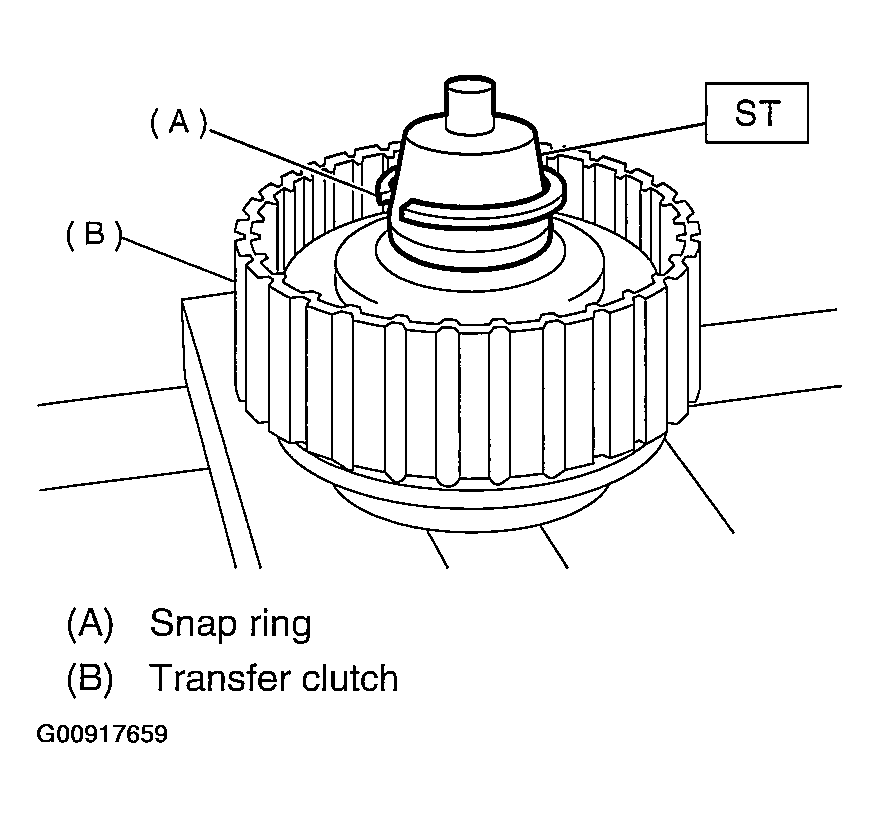

Install snap ring to ST.

Fig 5: Installing Snap Ring To ST
Courtesy of SUBARU OF AMERICA, INC.

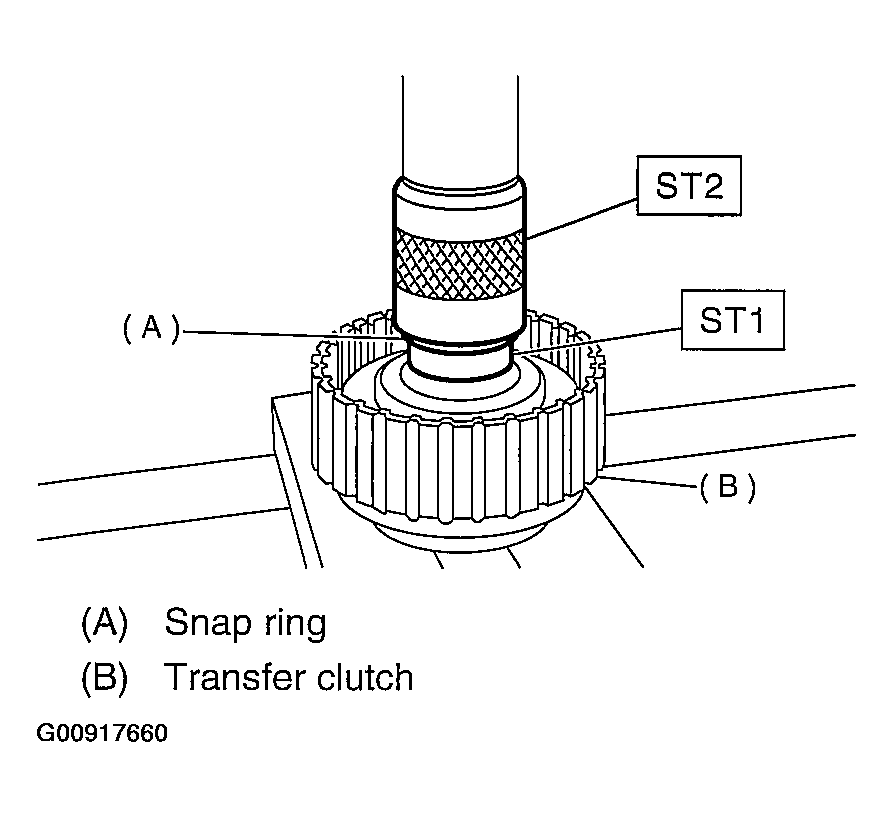

Using ST1 and ST2, install snap ring to rear drive shaft.

Fig 6: Installing Snap Ring To Rear Drive Shaft Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.

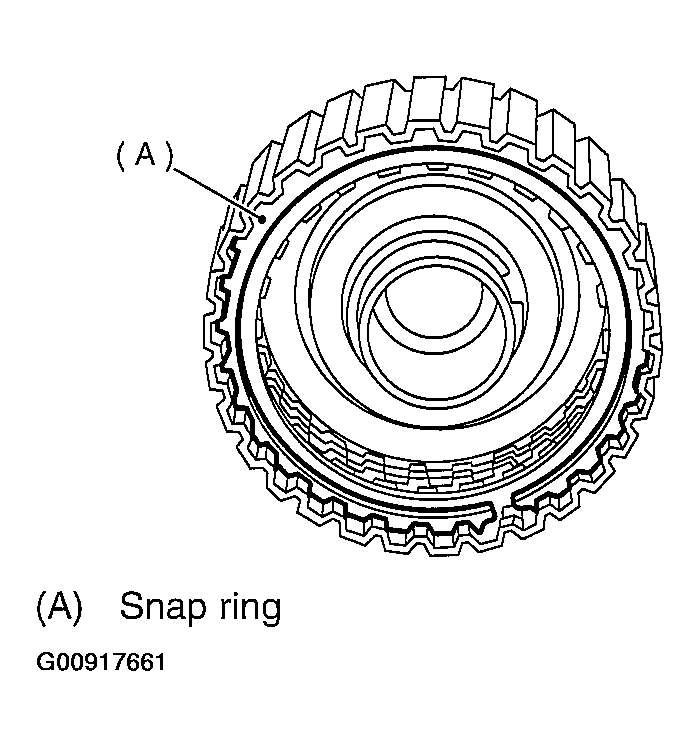

Install the driven plates, drive plates, pressure plate and snap ring.

Fig 7: Installing Driven Plates, Drive Plates, Pressure Plate & Snap Ring
Courtesy of SUBARU OF AMERICA, INC.

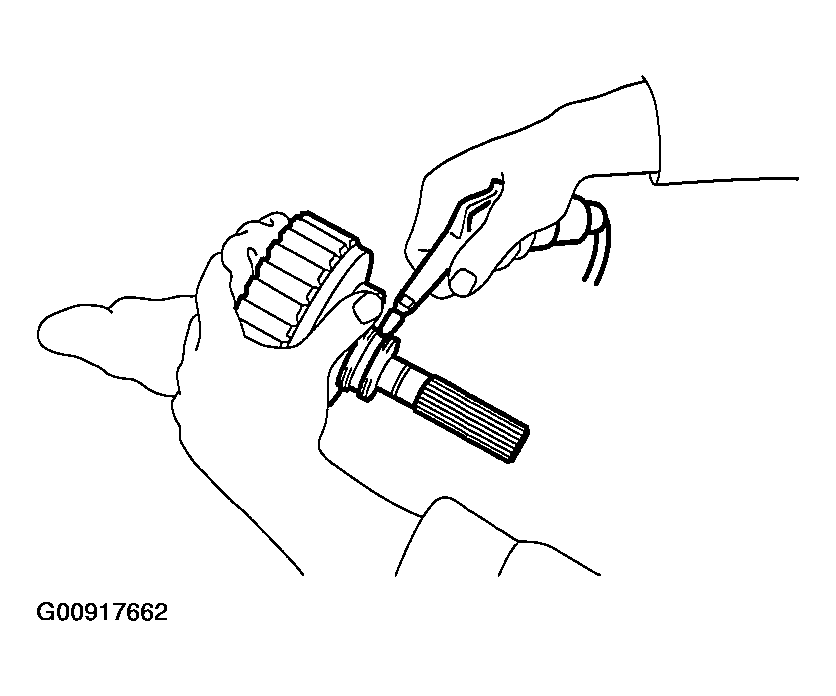

Apply compressed air to see if the assembled parts move smoothly.

Fig 8: Applying Compressed Air
Courtesy of SUBARU OF AMERICA, INC.
Check clearance between snap ring and pressure plate. Refer to INSPECTION .

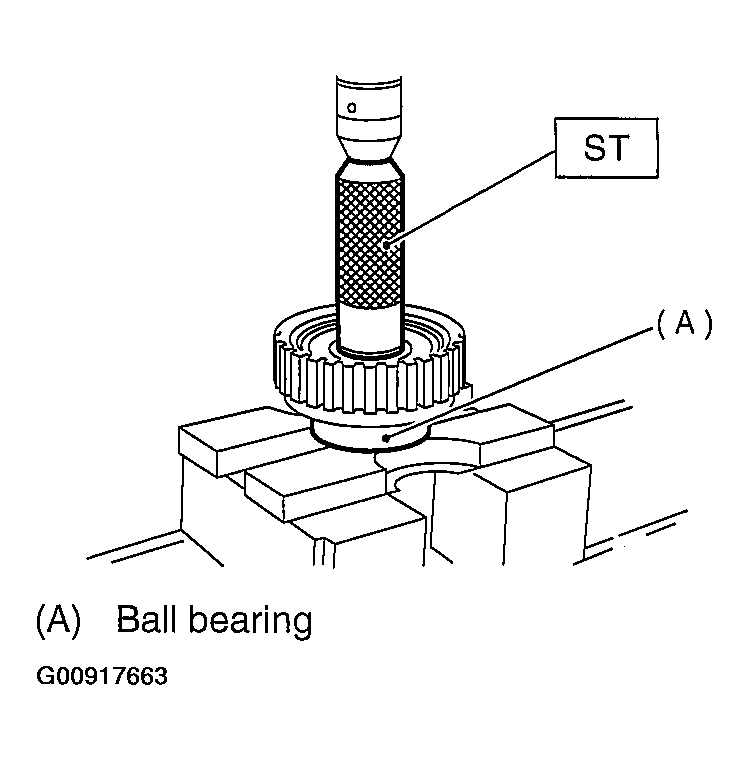

Press-fit a new ball bearing with ST.

Fig 9: Pressing Ball Bearing Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.

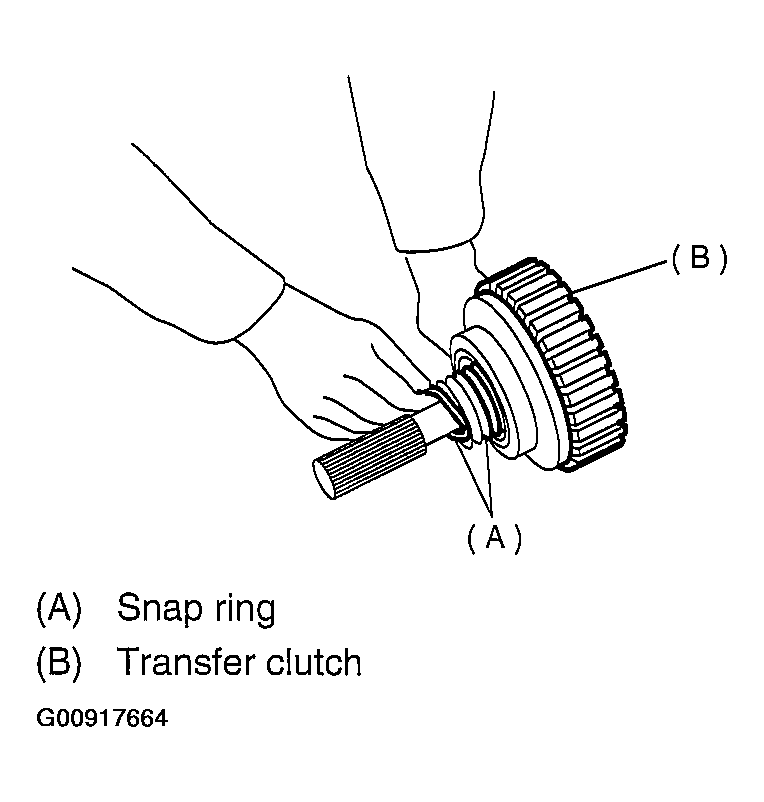

Coat a new seal ring with vaseline, and install it in the seal ring groove of the shaft.
NOTE: Do not expand the seal ring excessively when installing.

Fig 10: Installing Seal Ring In Seal Ring Groove Of Shaft
Courtesy of SUBARU OF AMERICA, INC.

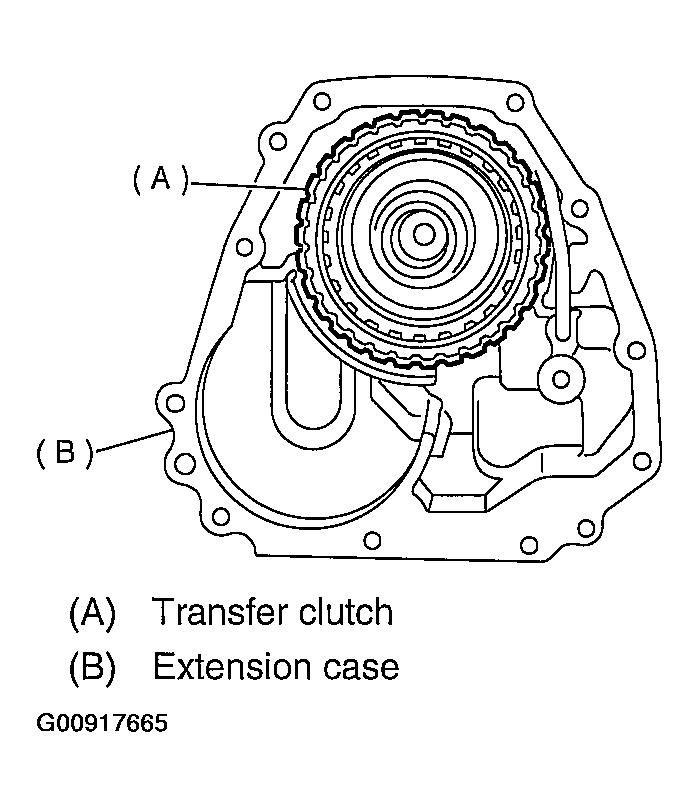

Install the transfer clutch assembly without damaging seal ring.

Fig 11: Installing Transfer Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
