Transfer Clutch: Disassembly

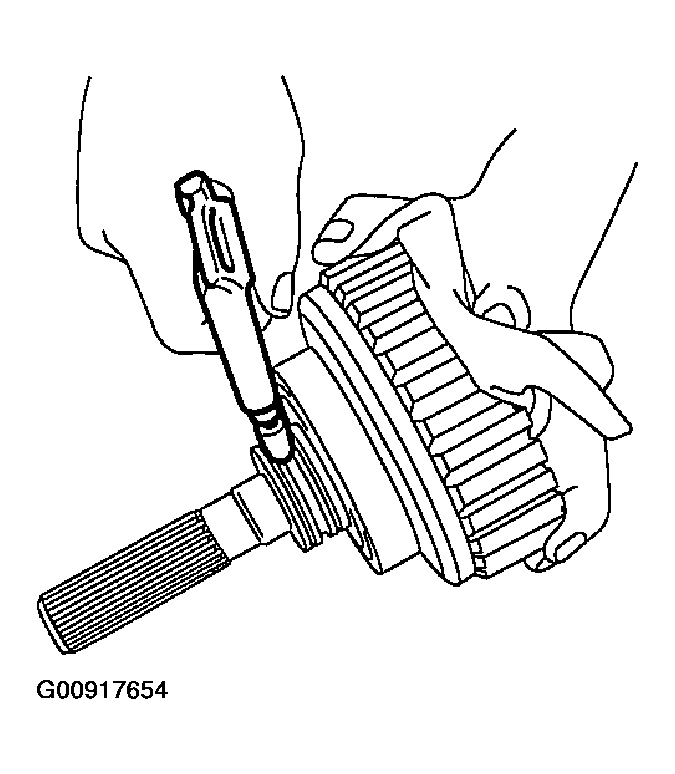

Remove the seal ring.

Fig 1: Removing Seal Ring
Courtesy of SUBARU OF AMERICA, INC.

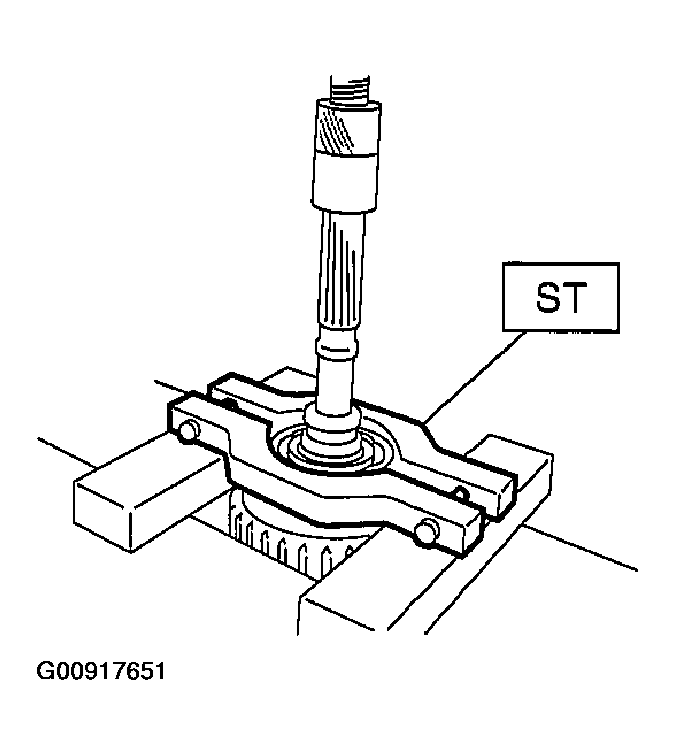

Using a press and ST, remove the ball bearing.

Fig 2: Removing Ball Bearing Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.

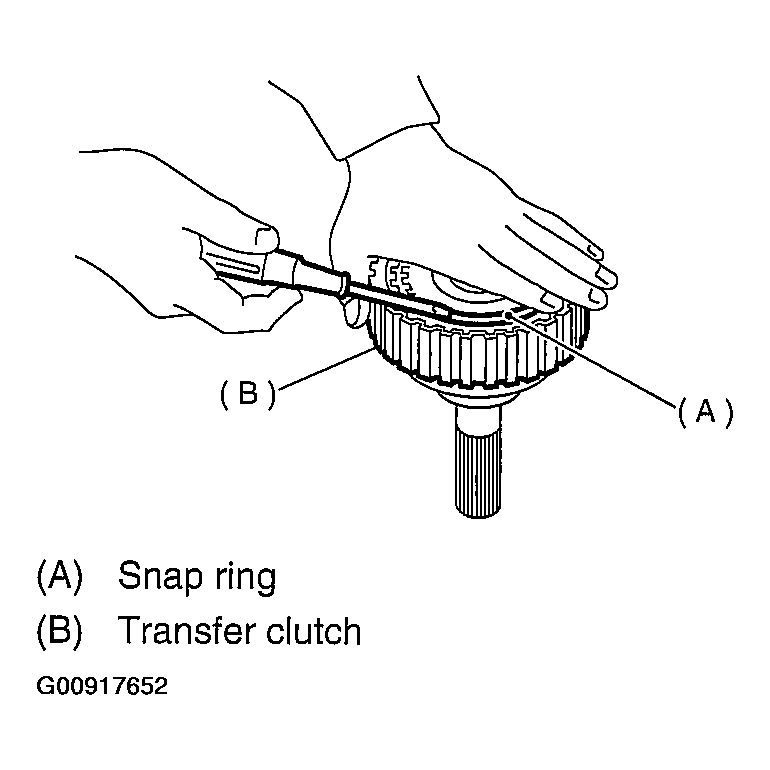

Remove the snap ring, and take out the pressure plate, drive plates, and driven plates.

Fig 3: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.

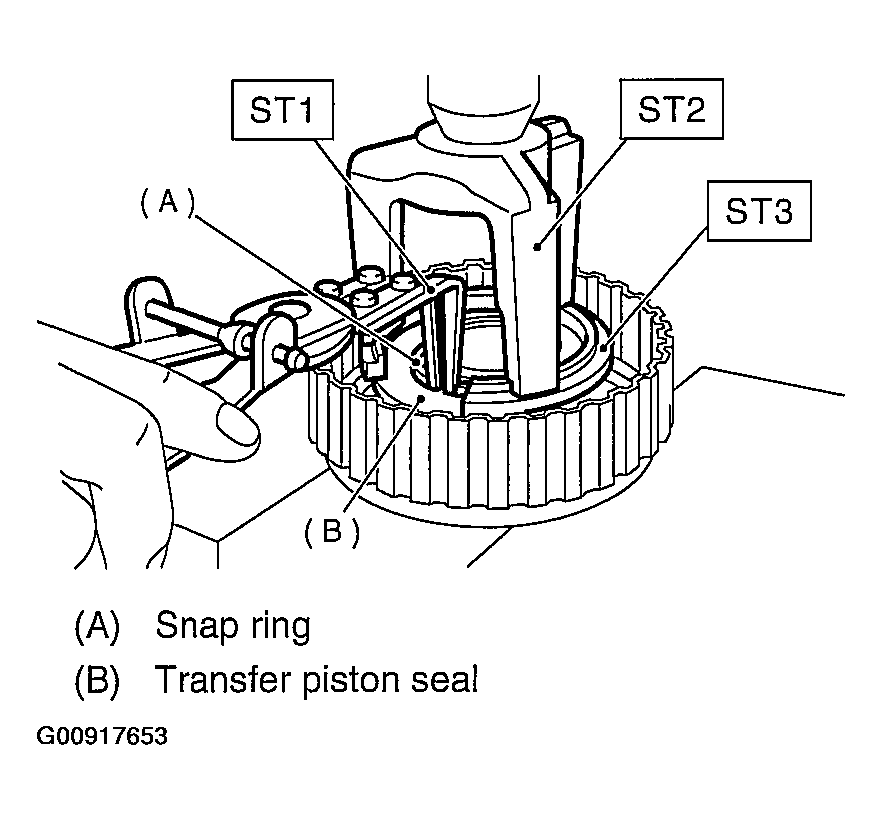

Remove the snap ring with ST1, ST2 and ST3, and take out the return spring and transfer clutch piston seal.

Fig 4: Removing Snap Ring With ST1, ST2 & ST3
Courtesy of SUBARU OF AMERICA, INC.

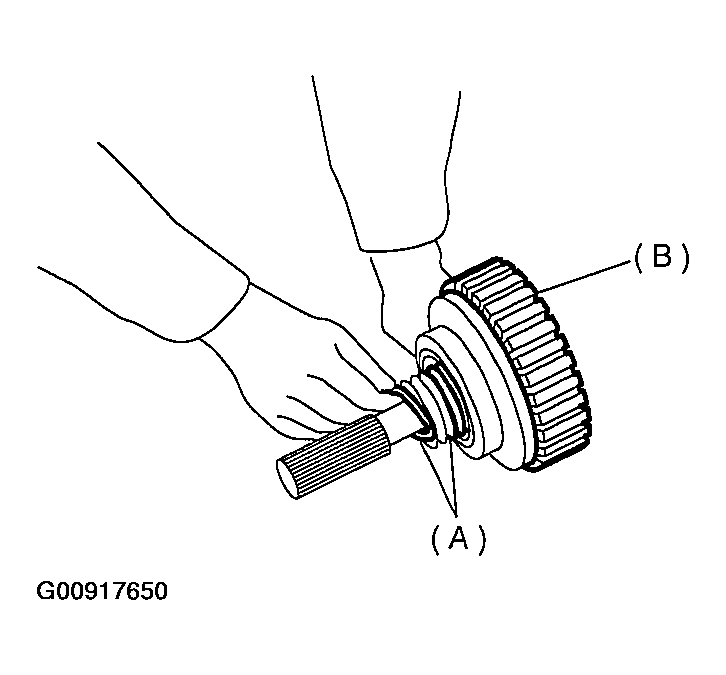

Apply compressed air to the rear drive shaft to remove the piston.

Fig 5: Applying Compressed Air To Rear Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.
