Transfer Clutch: Installation

Select the thrust needle bearing. Refer to ADJUSTMENT .
Install the transfer clutch assembly to the case.

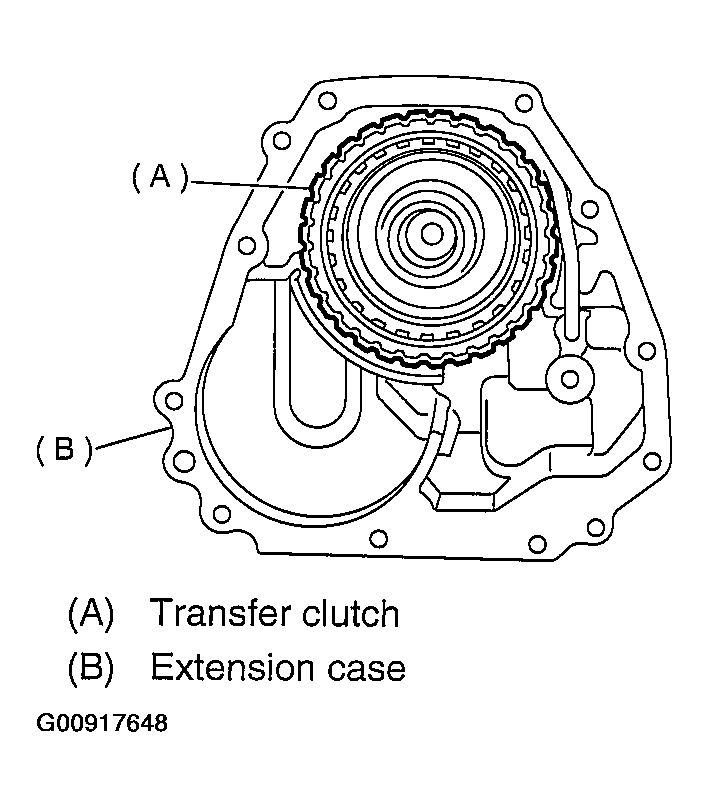

Fig 1: Installing Transfer Clutch Assembly To Case
Courtesy of SUBARU OF AMERICA, INC.
Tighten bolts to secure the case.
1. Tightening torque: 25 N.m (2.5 kgf.m, 18.1 ft.lb)

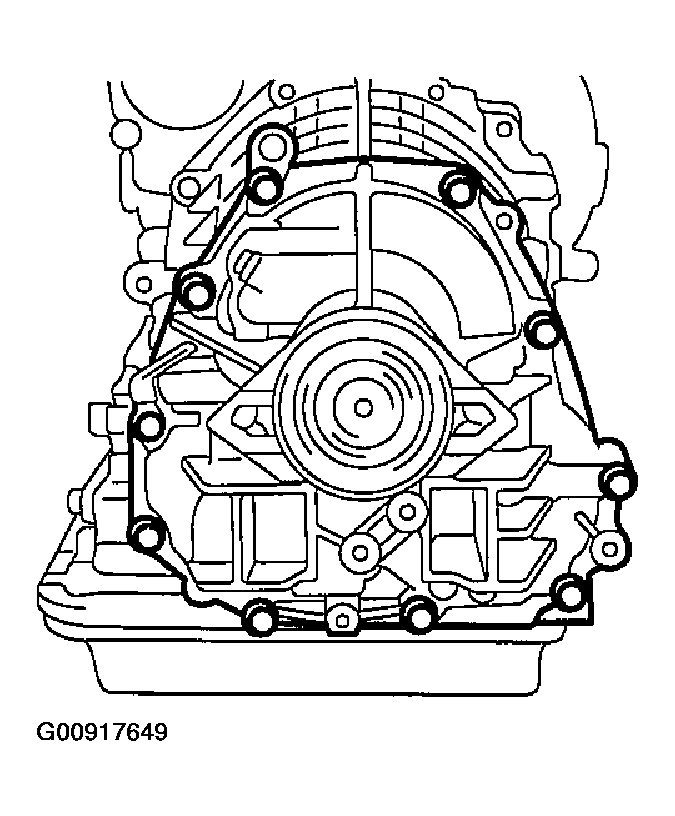

Fig 2: Tightening Bolts To Case
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly to vehicle. Refer to INSTALLATION .
