Transmission Control Module (TCM): Removal

  1. Disconnect the ground cable from battery.

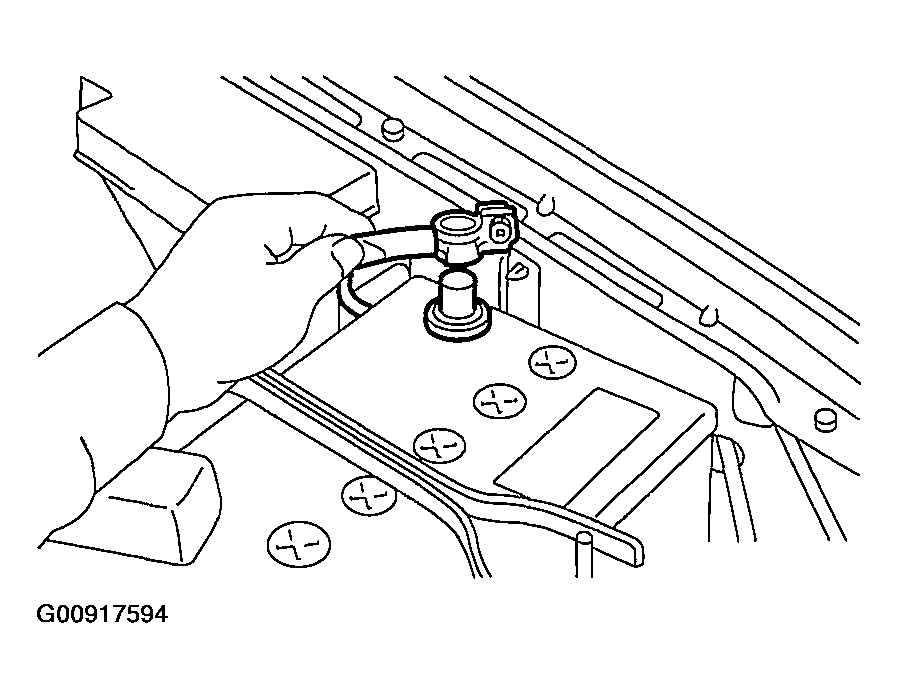

    Fig 1: Disconnecting Ground Cable From Battery
    G00917594Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the lower cover and then disconnect the connector.
  3. Remove the knee bolster.
    Fig 2: Removing Knee Bolster
    G00917595Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connectors from TCM.

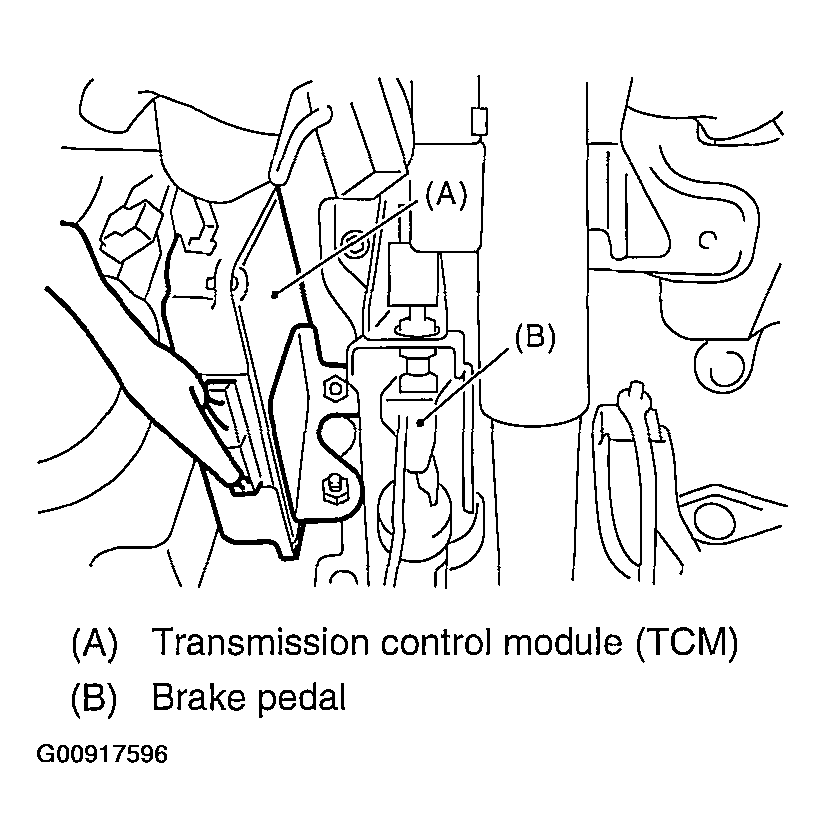

    Fig 3: Disconnecting Connectors From TCM
    G00917596Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the TCM.
