Fuel Sub Level Sensor: Removal: Notes

WARNING:

Place "NO FIRE" signs near the working area.
Be careful not to spill fuel on the floor.
During work procedures, if fuel tank is more than 3/4 full, be careful because fuel may spill.

Drain fuel from fuel tank. Refer to FUEL .
Raise rear seat and turn floor mat up.
Remove service hole cover.

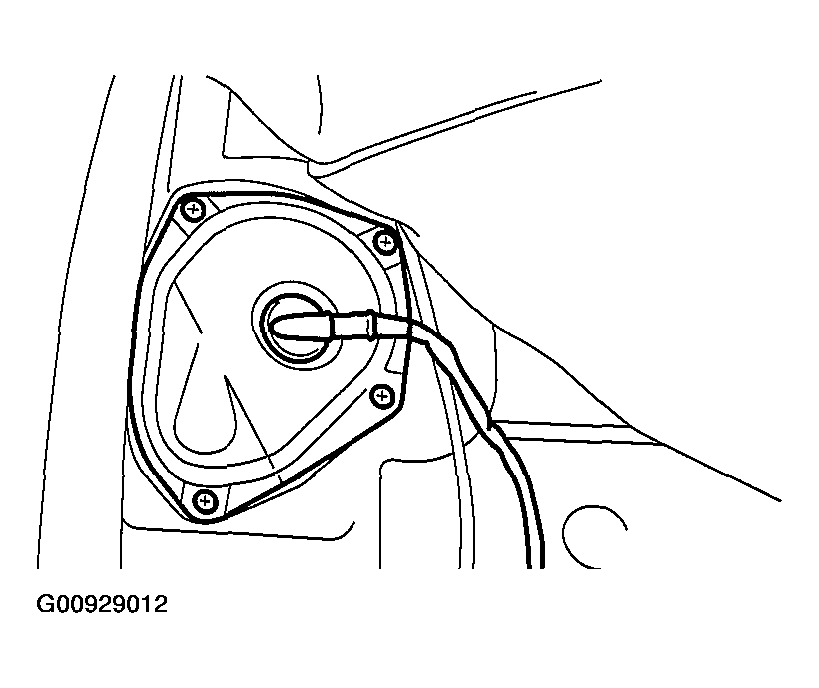

Fig 1: Removing Service Hole Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from fuel sub level sensor.

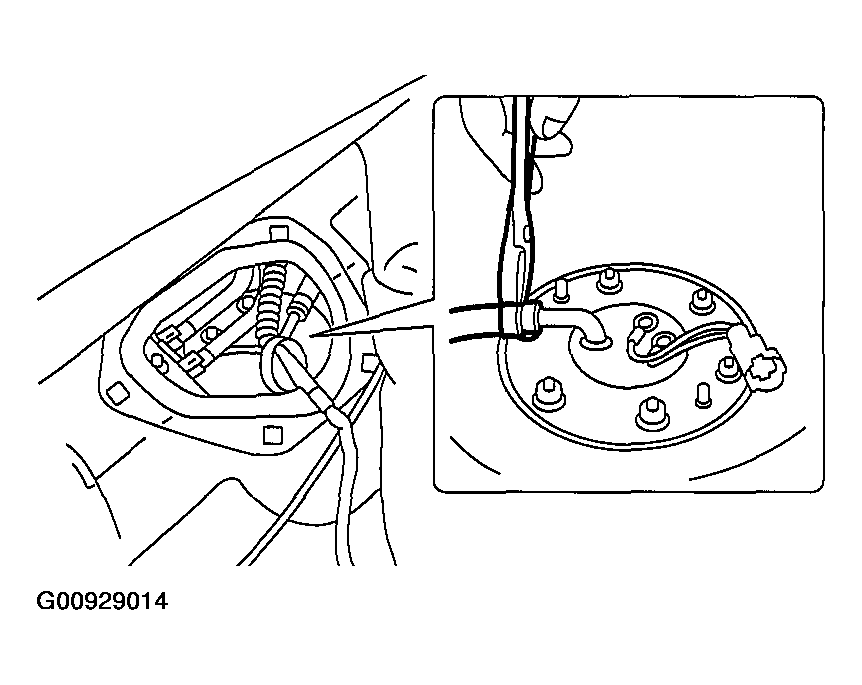

Fig 2: Disconnecting Connector From Fuel Sub Level Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect fuel jet pump hose.

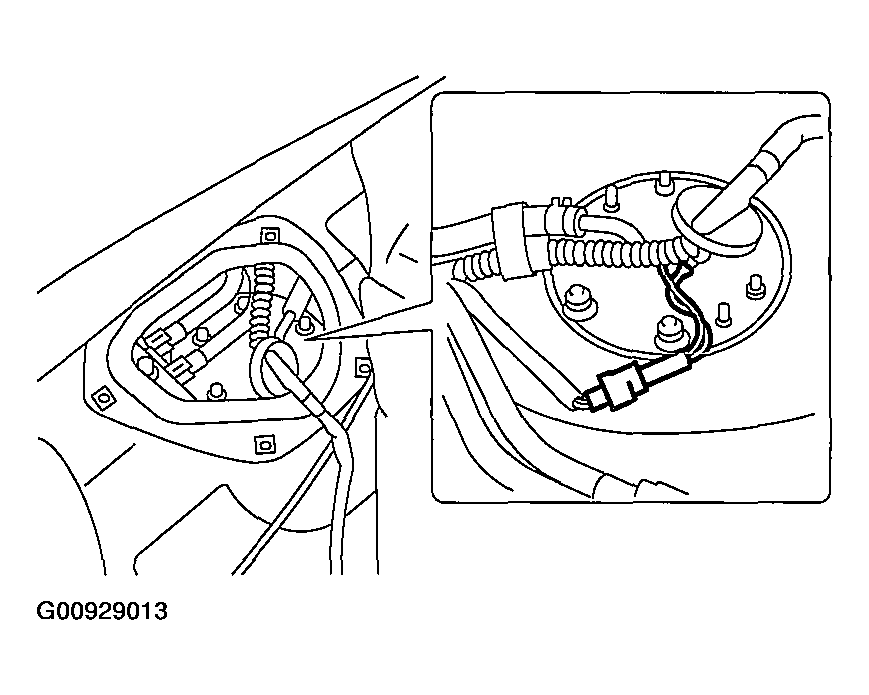

Fig 3: Disconnecting Fuel Jet Pump Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts which install fuel sub level sensor on fuel tank.

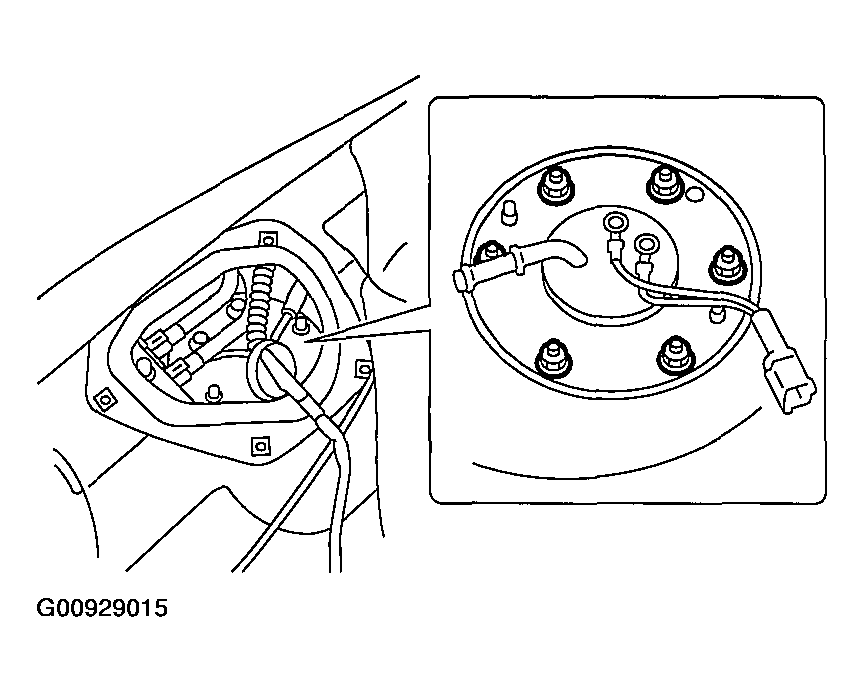

Fig 4: Removing Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel sub level sensor.
