RH Side

  1. Disconnect the ground cable from battery.

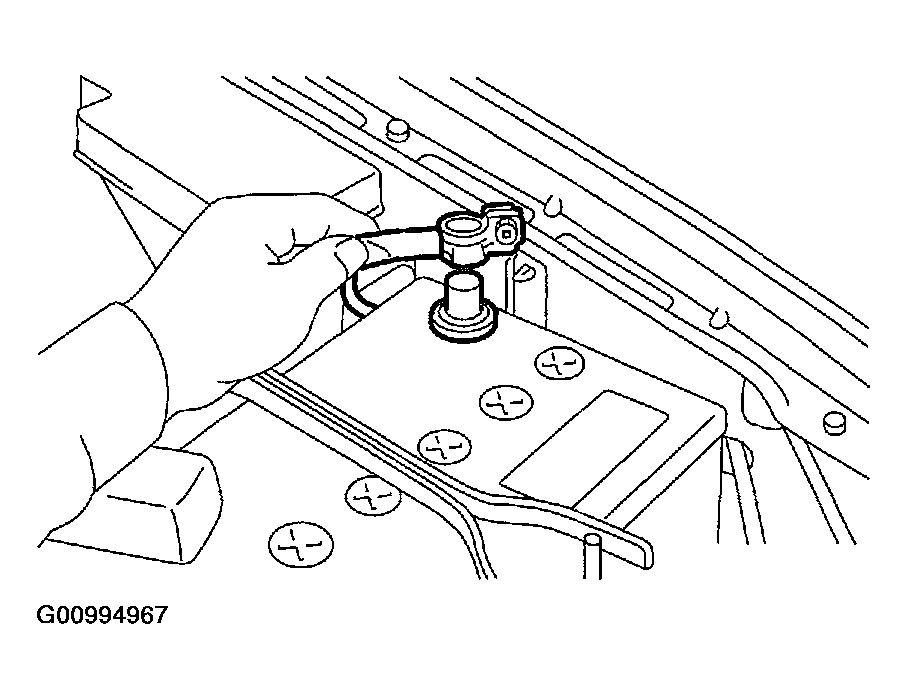

    Fig 1: Disconnecting Ground Cable From Battery (RH Side)
    G00994967Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the resonator chamber. Refer to REMOVAL , Resonator Chamber.
  3. Remove the spark plug cords by pulling boot, not the cord itself.

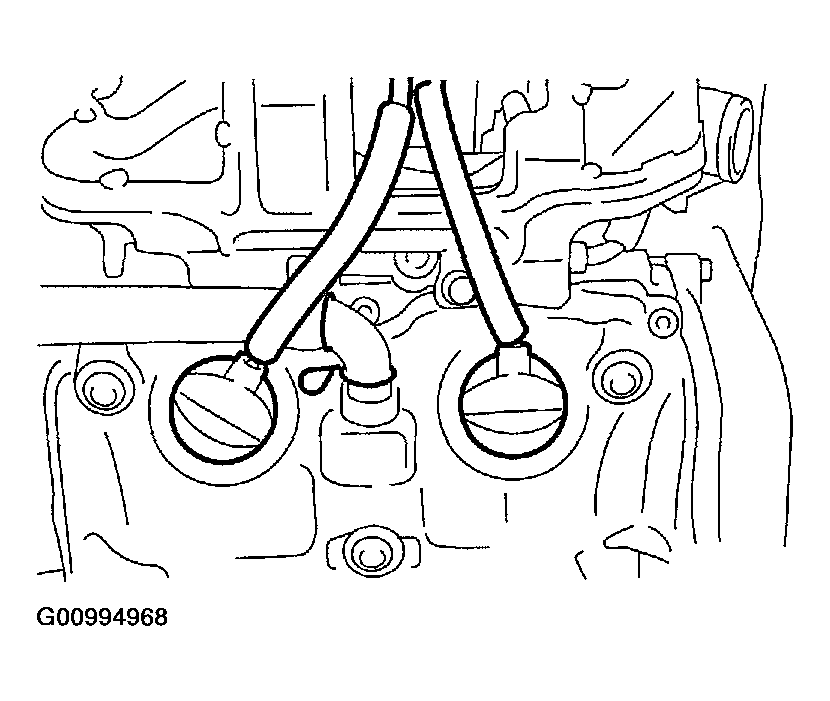

    Fig 2: Removing Spark Plug Cords By Pulling Boot
    G00994968Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the spark plugs with spark plug sockets.

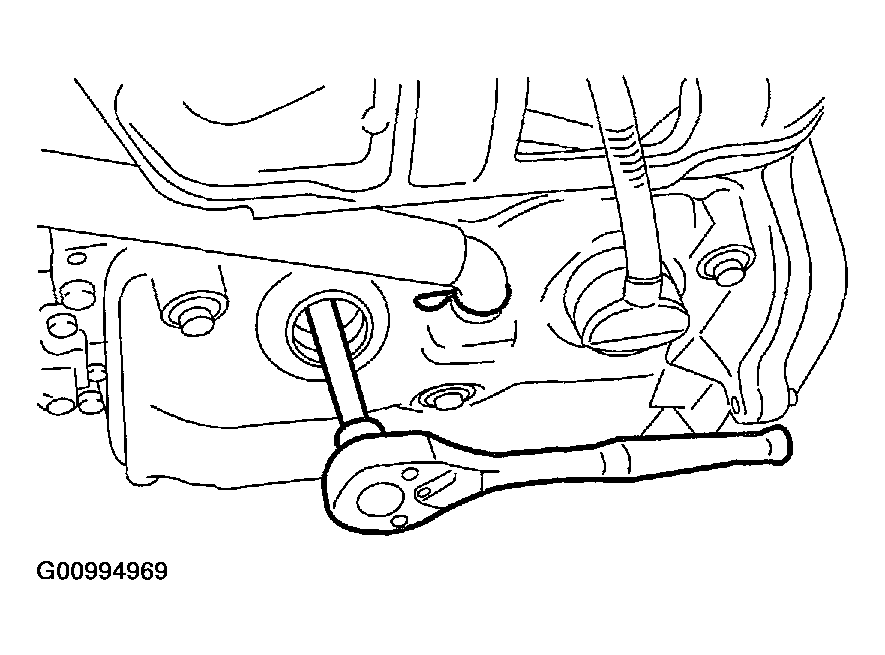

    Fig 3: Removing Spark Plugs With Spark Plug Sockets
    G00994969Courtesy of SUBARU OF AMERICA, INC.
