Electrical Components Location: Location: Engine: Sensor

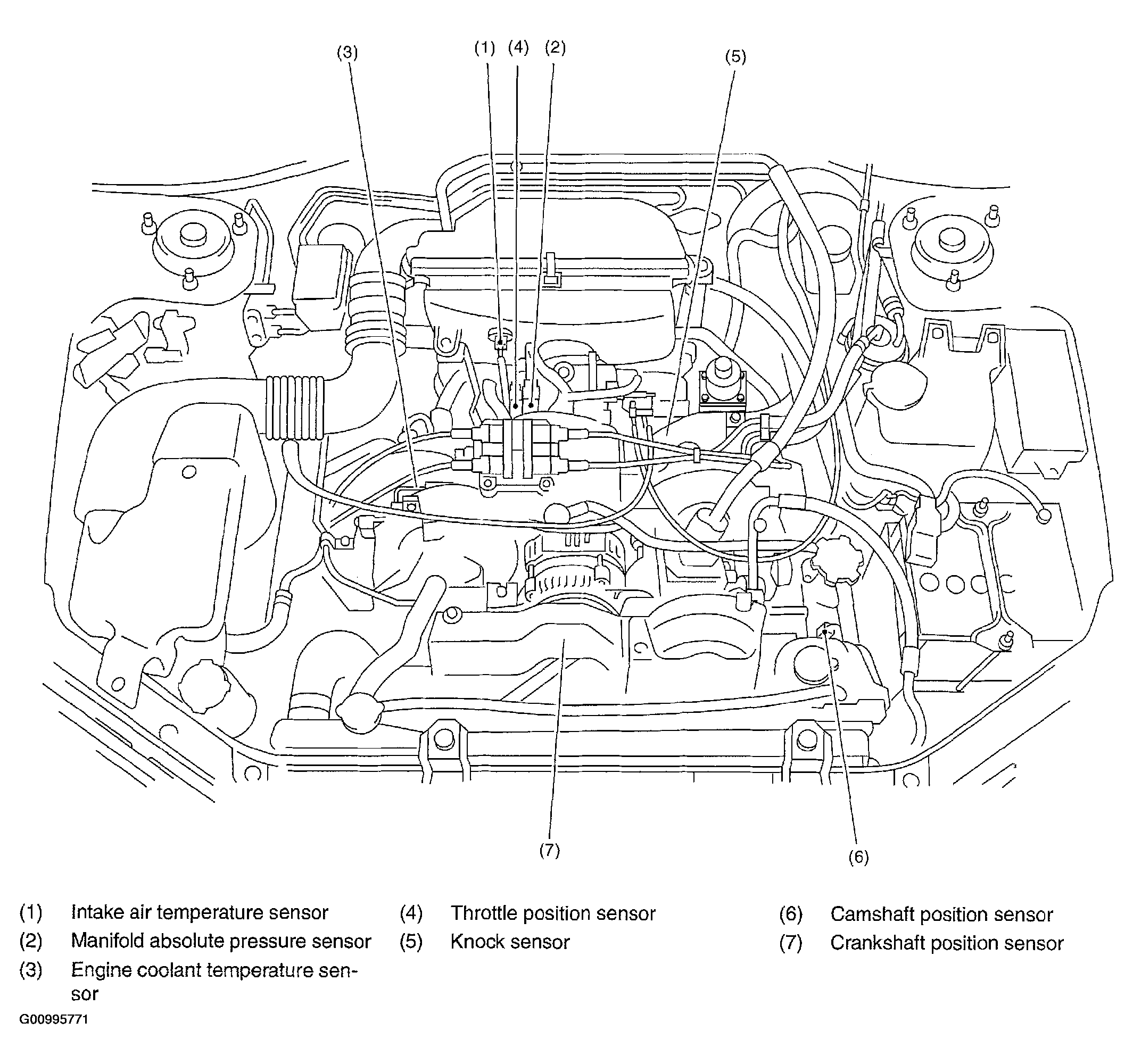

Fig 1: Locating Engine Sensor (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

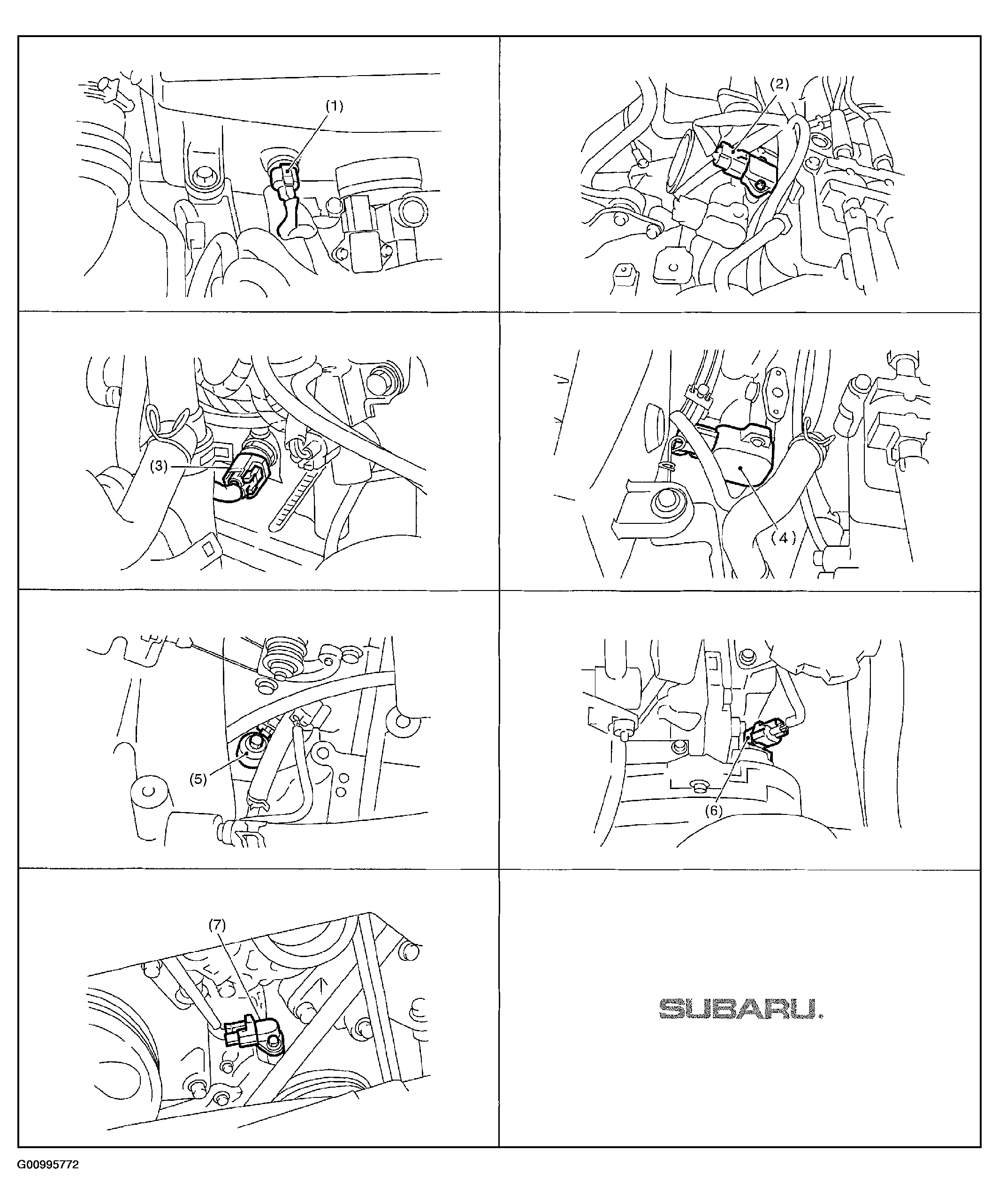

Fig 2: Locating Engine Sensor (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

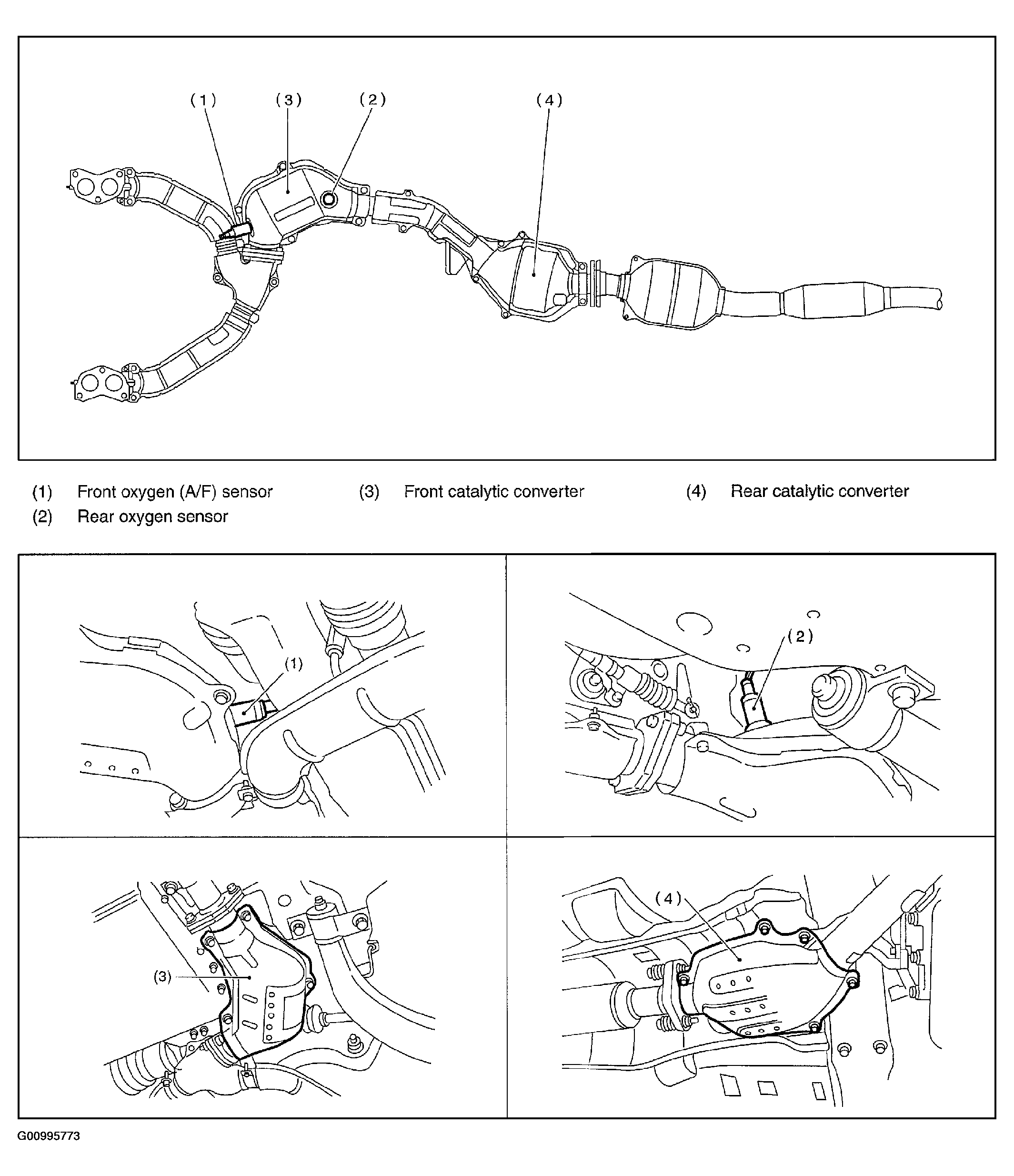

Fig 3: Locating Engine Sensor (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

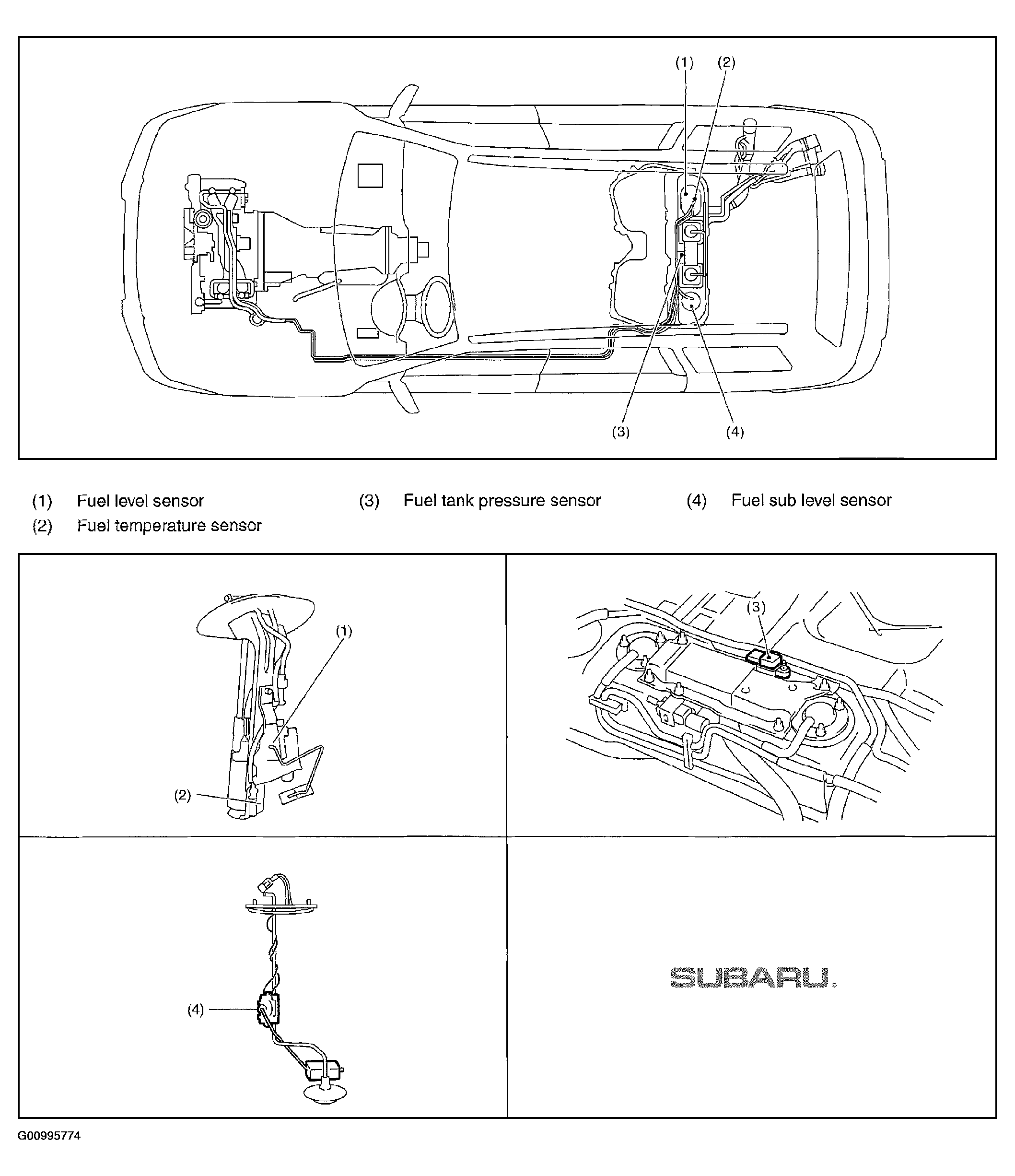

Fig 4: Locating Engine Sensor (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
