Inspection Mode: Operation: Notes

Carry out trouble diagnosis shown in the following DTC table.

When performing trouble diagnosis which is not shown in the DTC table, refer to the next item Drive cycle. Refer to DRIVE CYCLE .

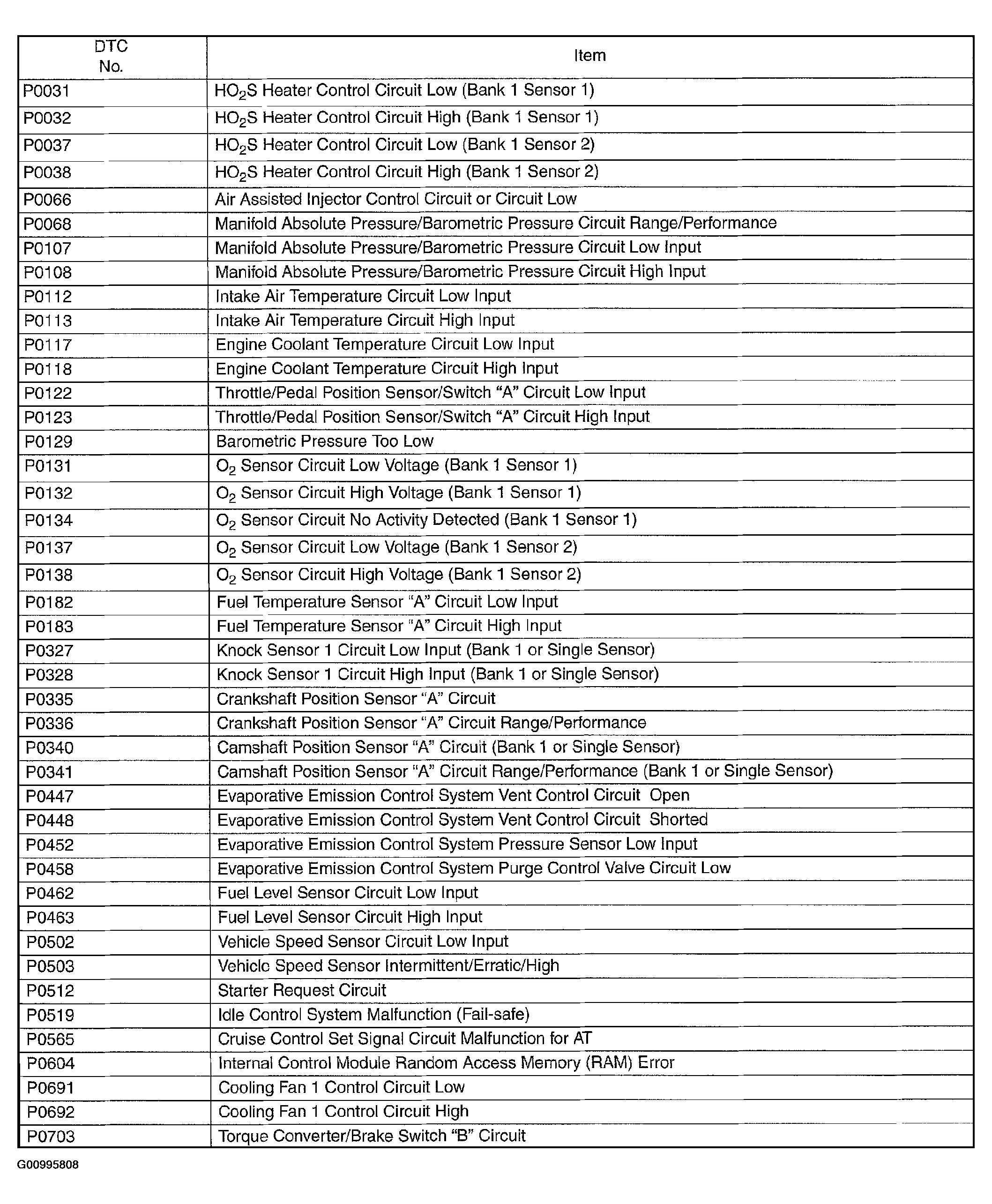

Fig 1: Identifying DTC Table (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

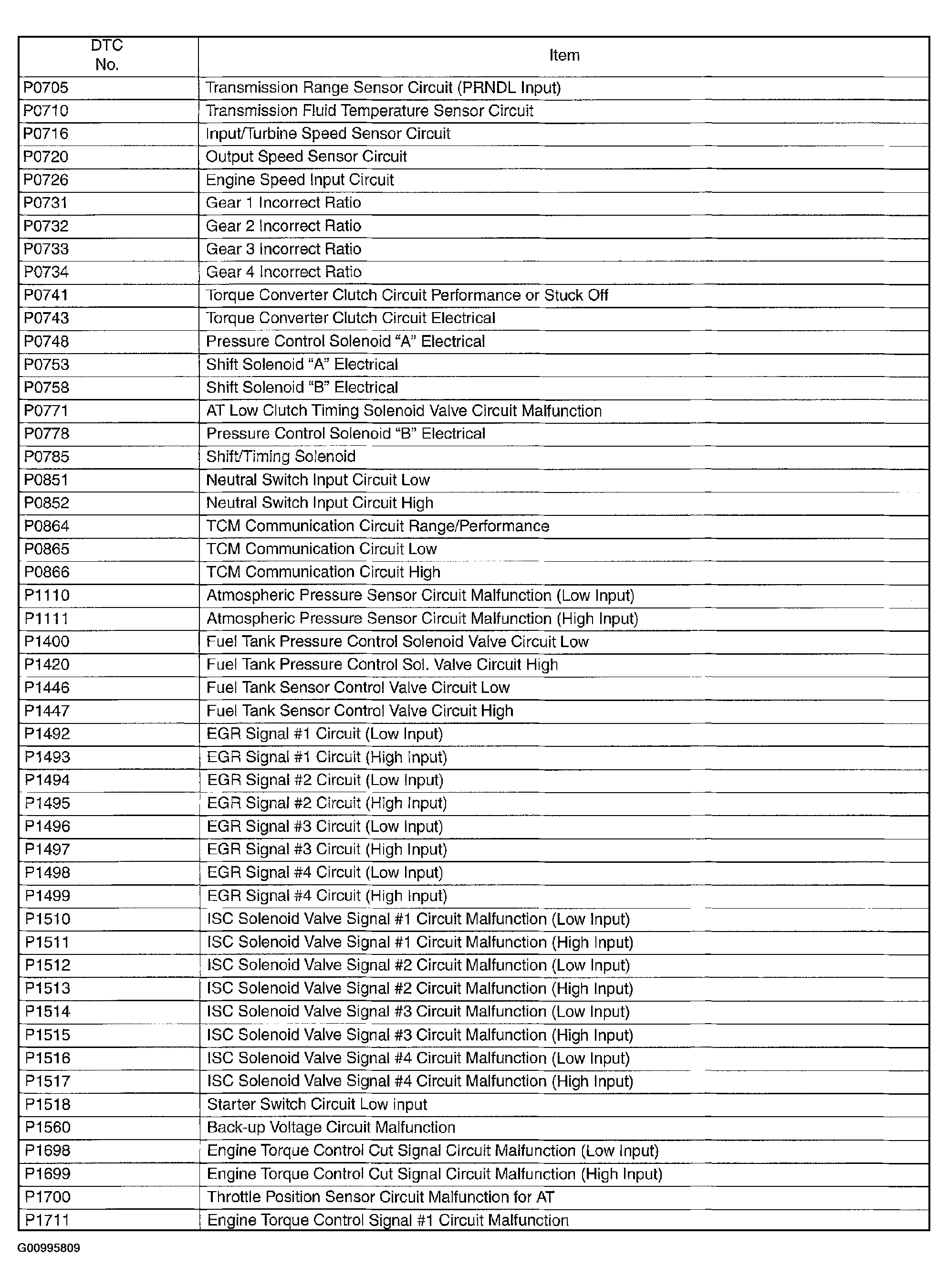

Fig 2: Identifying DTC Table (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

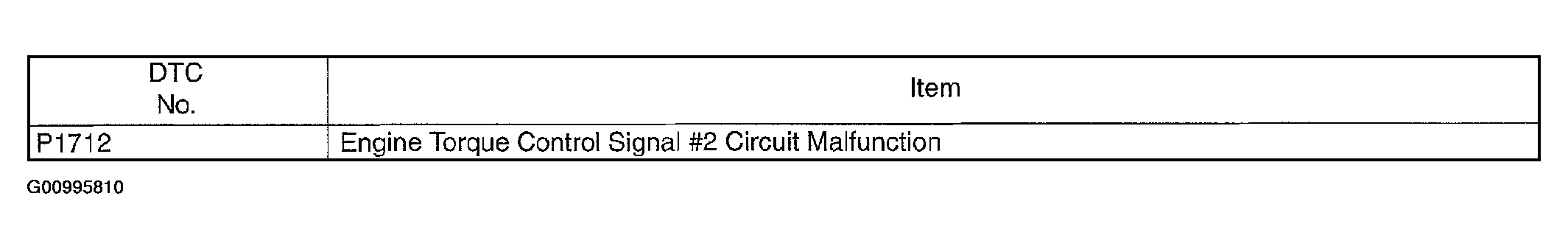

Fig 3: Identifying DTC Table (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
