Read Current Data For At

  1. On << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
  2. On << System Selection Menu >> display screen, select the {Transmission Control System} and press the [YES] key.
  3. Press the [YES] key after the information of transmission type is displayed.
  4. On << Transmission Diagnosis >> display screen, select the {Current Data Display & Save} and press the [YES] key.
  5. On << Data Display Menu >> display screen, select the {Data Display} and press the [YES] key.
  6. Using the scroll key, move the display screen up or down until the desired data is shown.

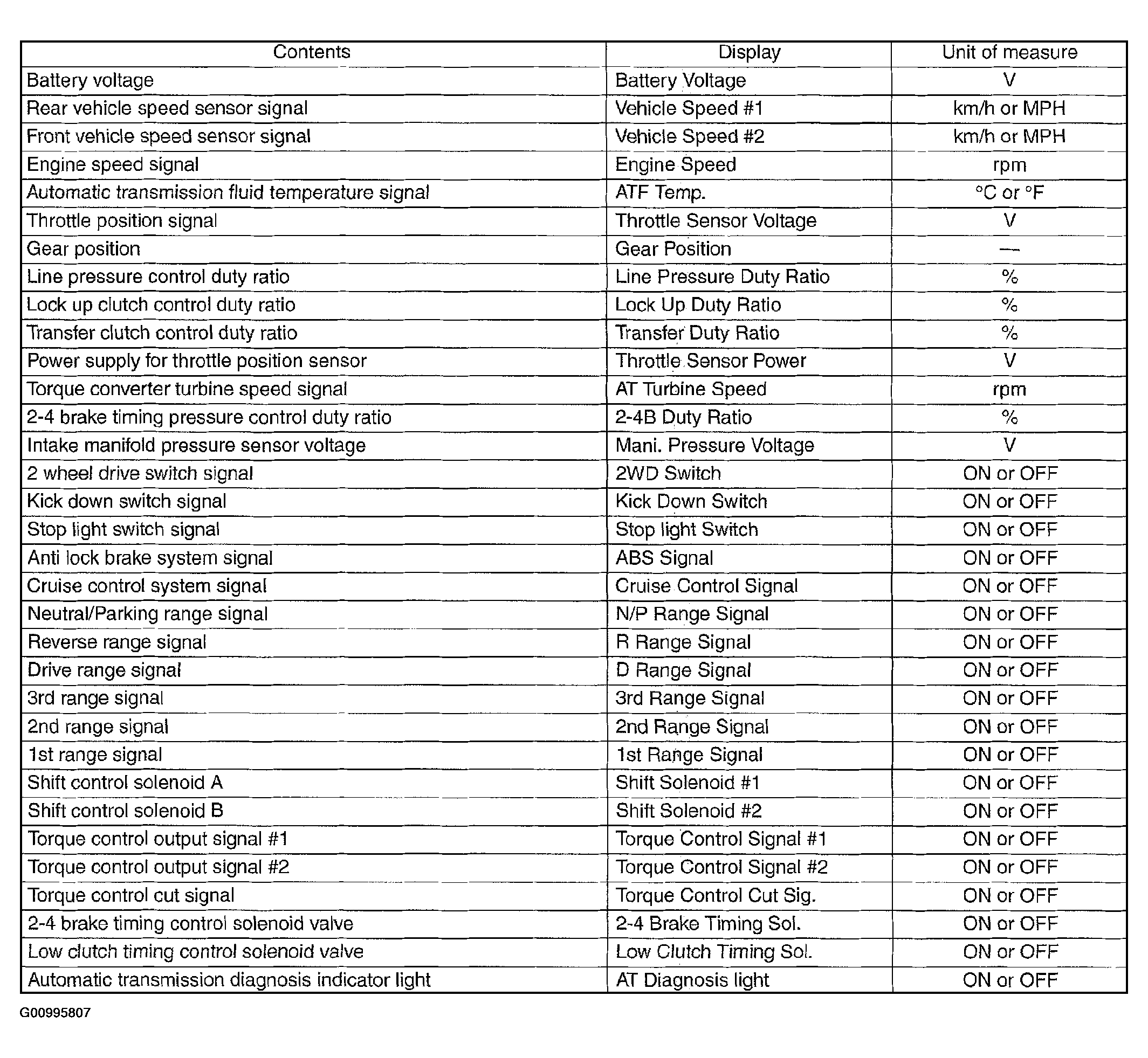

    • A list of support data is shown in the following table.
      Fig 1: Reading Current Data For AT
      G00995807Courtesy of SUBARU OF AMERICA, INC.
      NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
