Keyless Entry Control Module: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. Refer to REMOVAL , Glove Box .
  3. Remove the nut, and then remove the keyless entry control module while disconnecting connector.

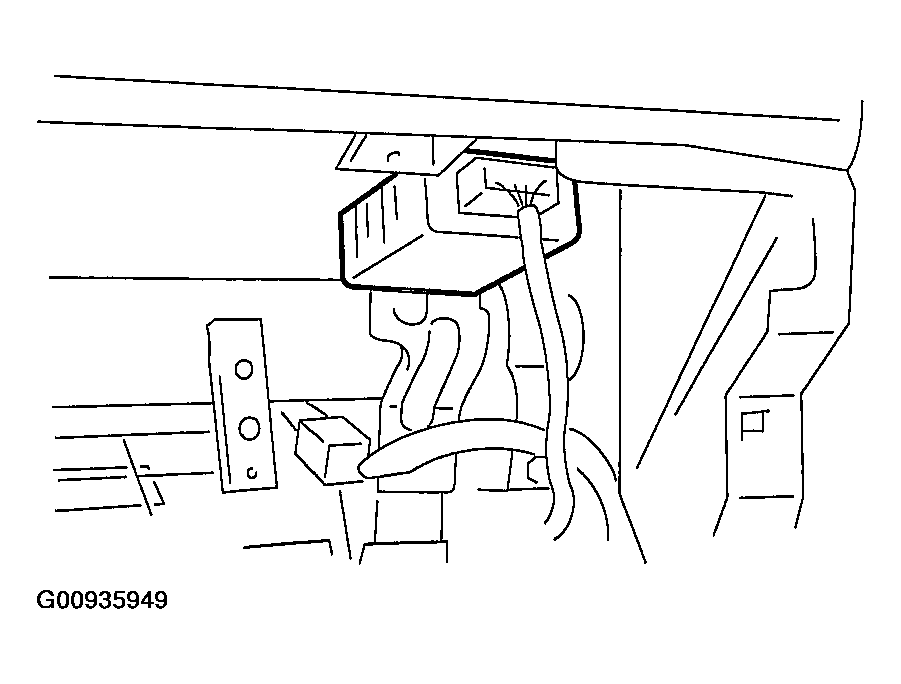

    Fig 1: Identifying Keyless Entry Control Module
    G00935949Courtesy of SUBARU OF AMERICA, INC.
