Security Control Module: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. Refer to REMOVAL , Glove Box .
  3. Disconnect the connector from the security control module.
  4. Remove nuts (A) and cruise control module (B).

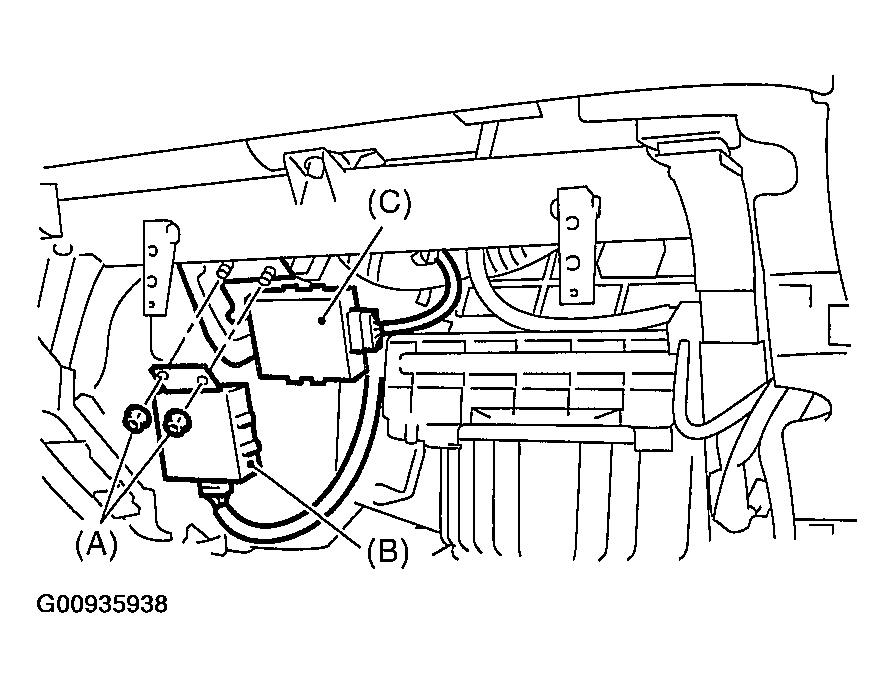

    Fig 1: Identifying Nuts And Cruise Control Module
    G00935938Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the security control module (C).
