Electrical Specification

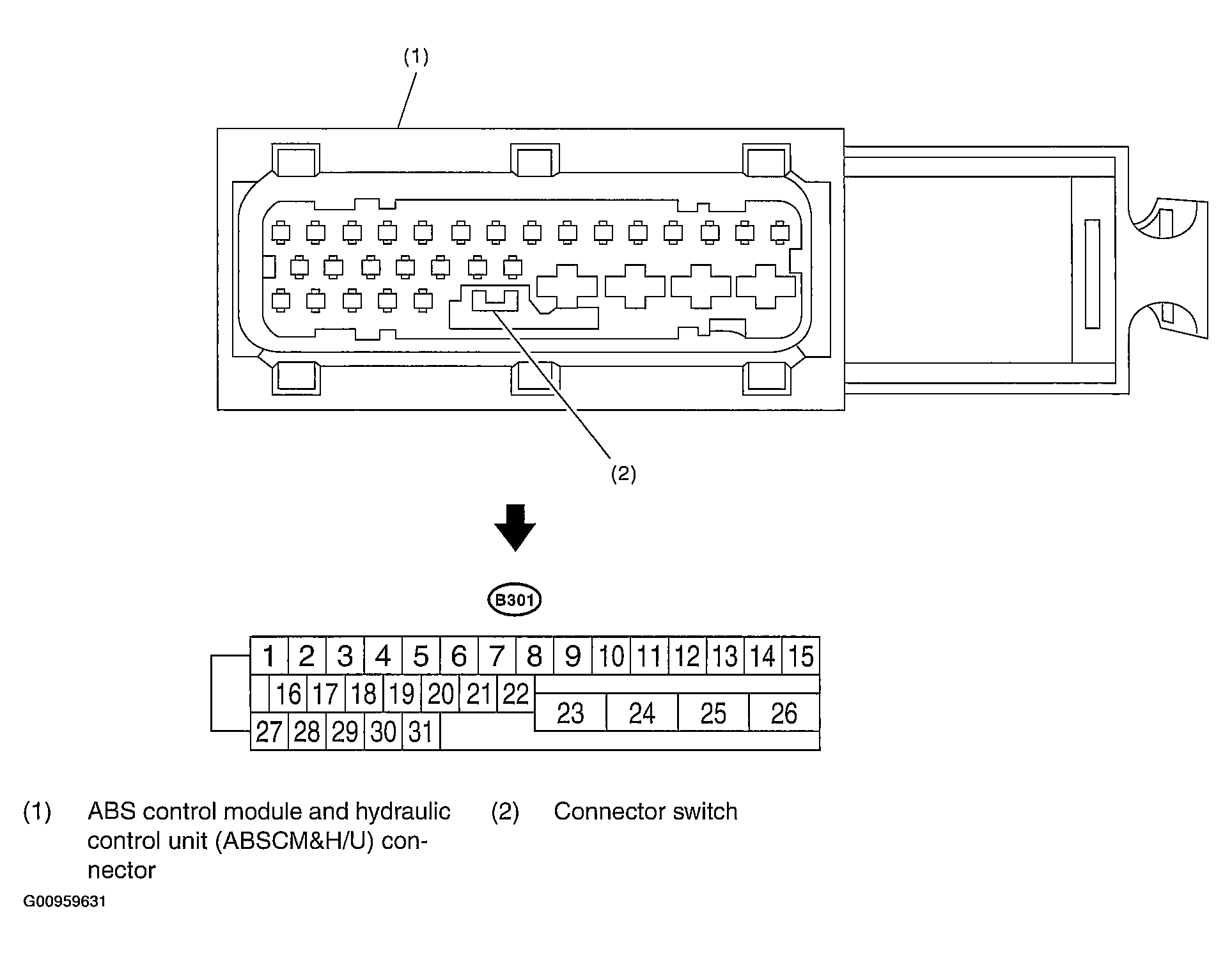

Fig 1: Identifying Control Module Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

The terminal numbers in ABS control module and hydraulic control unit (ABSCM&H/U) connector are as shown in the figure.
When the connector is removed from ABSCM&H/U, the connector switch closes the circuit between terminal No. 22 and No. 23. The ABS warning light illuminates.

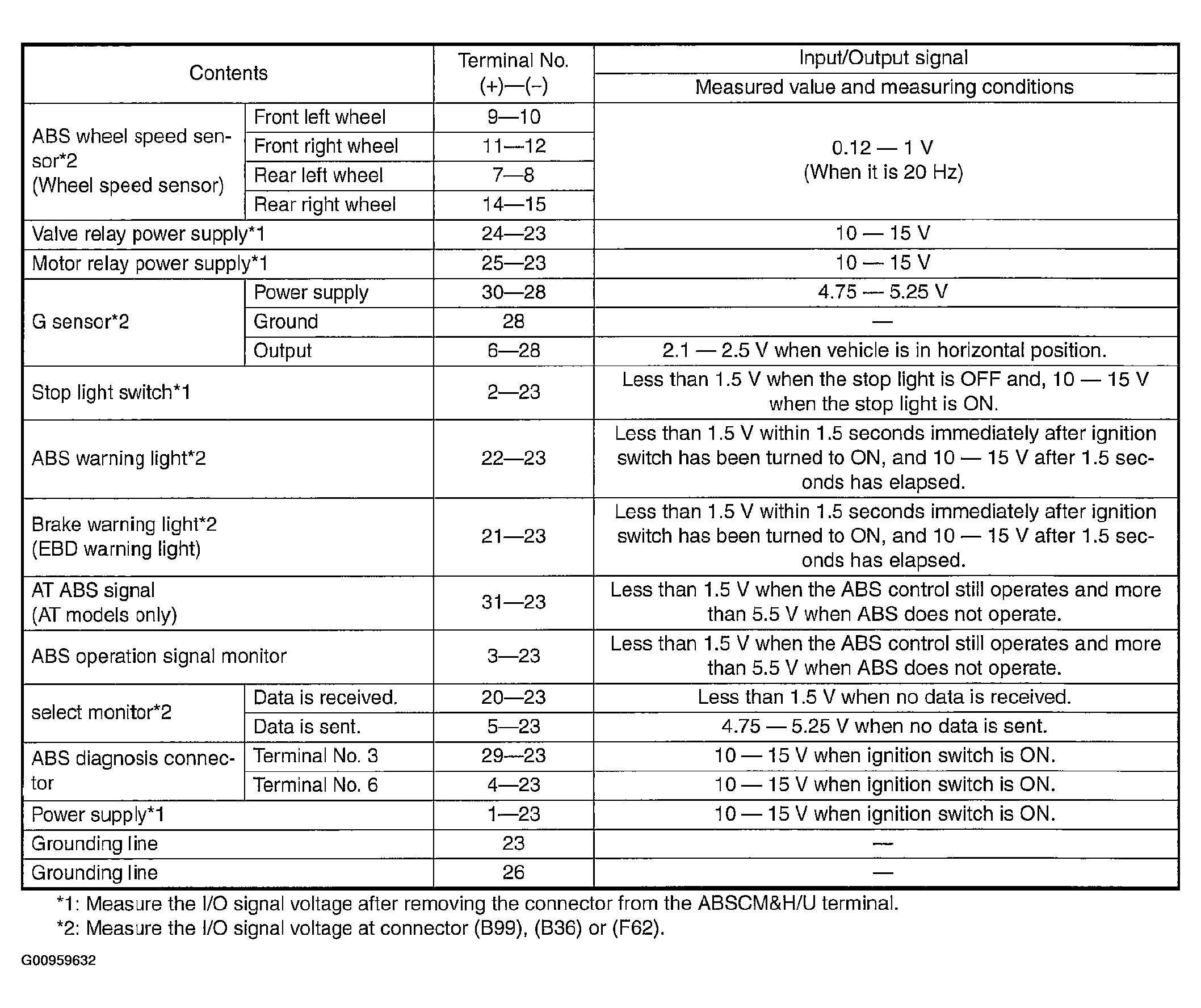

Fig 2: Control Module Connector Terminals Reference

Courtesy of SUBARU OF AMERICA, INC.
