Home >> Subaru >> 2004 >> Forester XT, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs (Diagnostics) >> Control Module I/O Signal >> Wiring Diagram

Control Module I/O Signal: Wiring Diagram

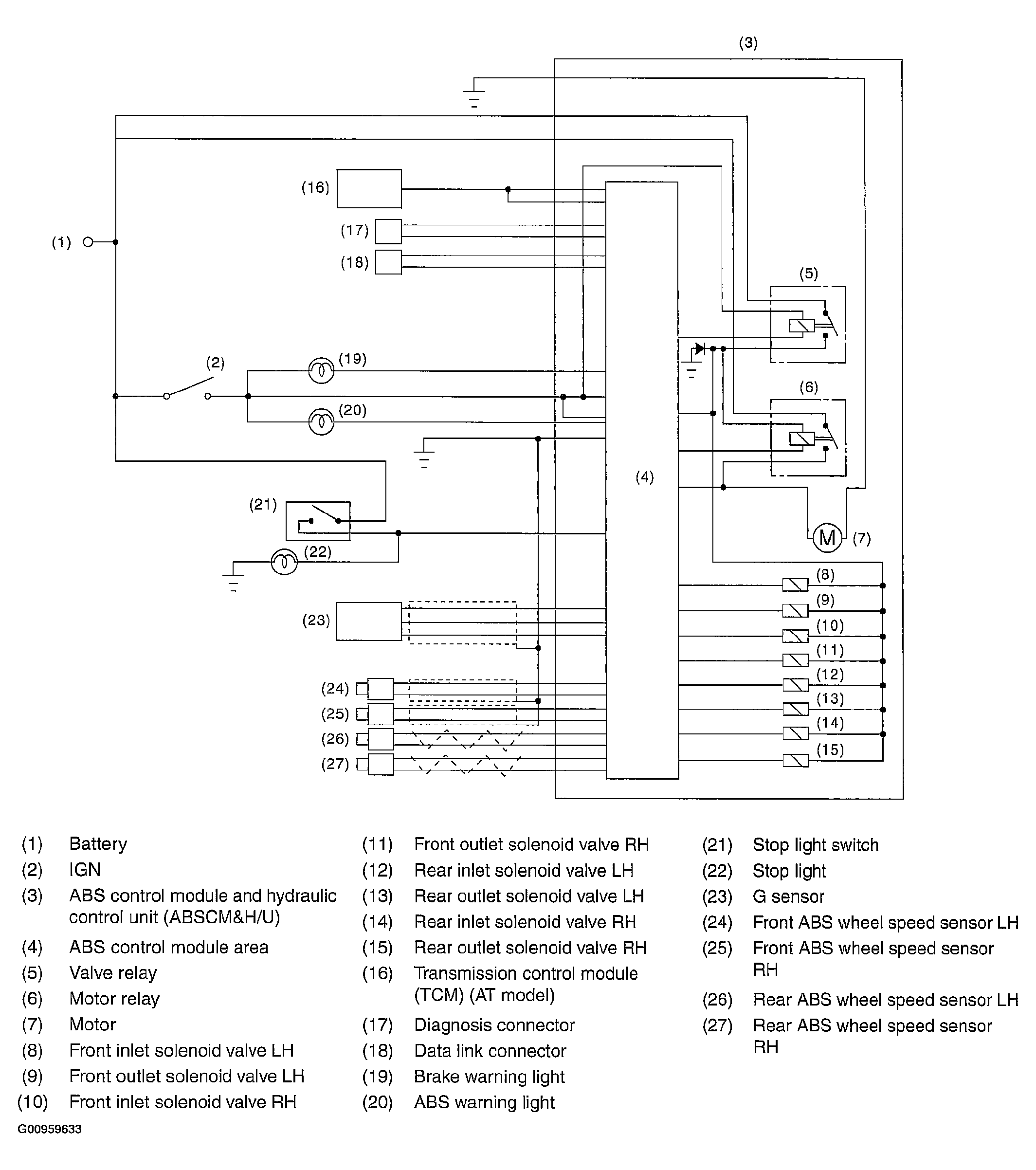

Fig 1: Wiring Diagram - Control Module I/O Signal

G00959633

Courtesy of SUBARU OF AMERICA, INC.
