G Sensor: Removal

  1. Disconnect the ground cable from battery.

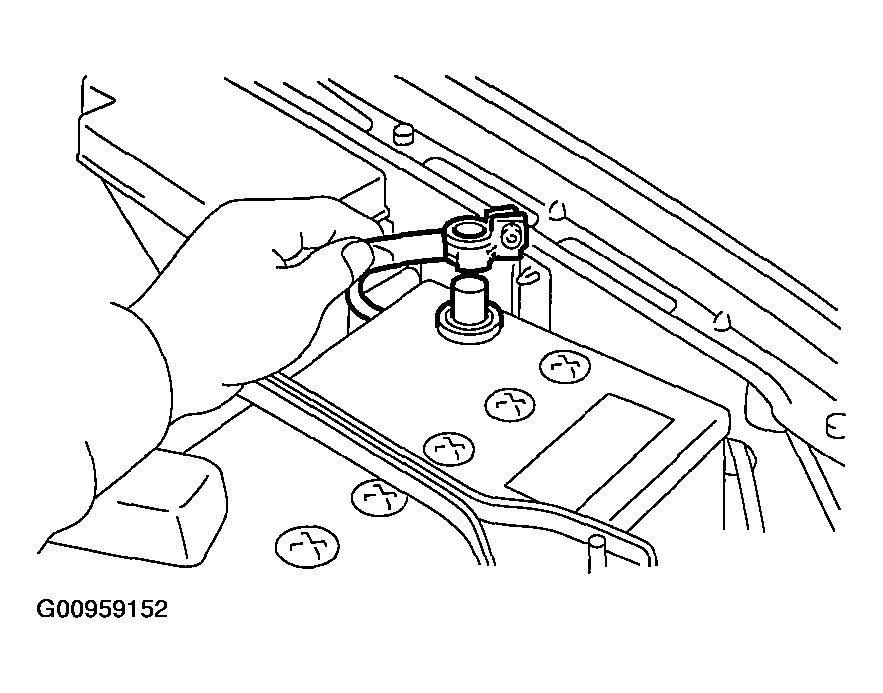

    Fig 1: Disconnecting Ground Cable From Battery
    G00959152Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the console cover.

    < Ref. to REMOVAL , Console Box .>

  3. Disconnect the connector from G sensor.
  4. Remove the G sensor from body.
CAUTION:
  • Do not drop or bump the G sensor.
  • G sensor and the bracket are integrated into one unit. Therefore, do not disassemble it.

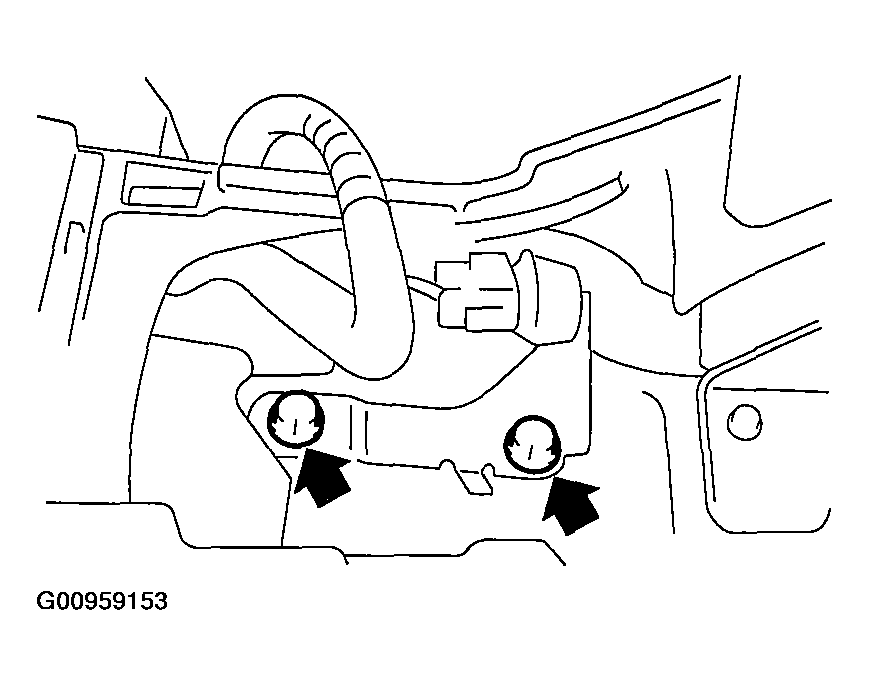

    Fig 2: Identifying G Sensor
    G00959153Courtesy of SUBARU OF AMERICA, INC.
