Knock Sensor: Installation

  1. Install the knock sensor to the cylinder block.
    1. Tightening torque: 24 N.m (2.4 kgf-m, 17.4 ft-lb)
    NOTE: Extraction area of the knock sensor cord must be positioned at a 60° angle relative to the engine rear.

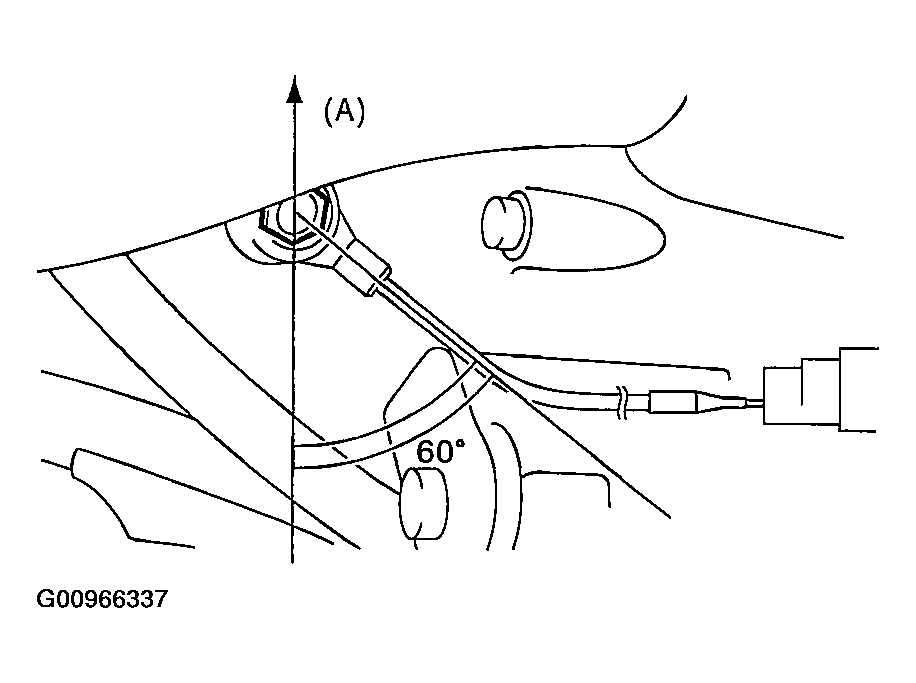

    Fig 1: Identifying Knock Sensor
    G00966337Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the knock sensor connector.

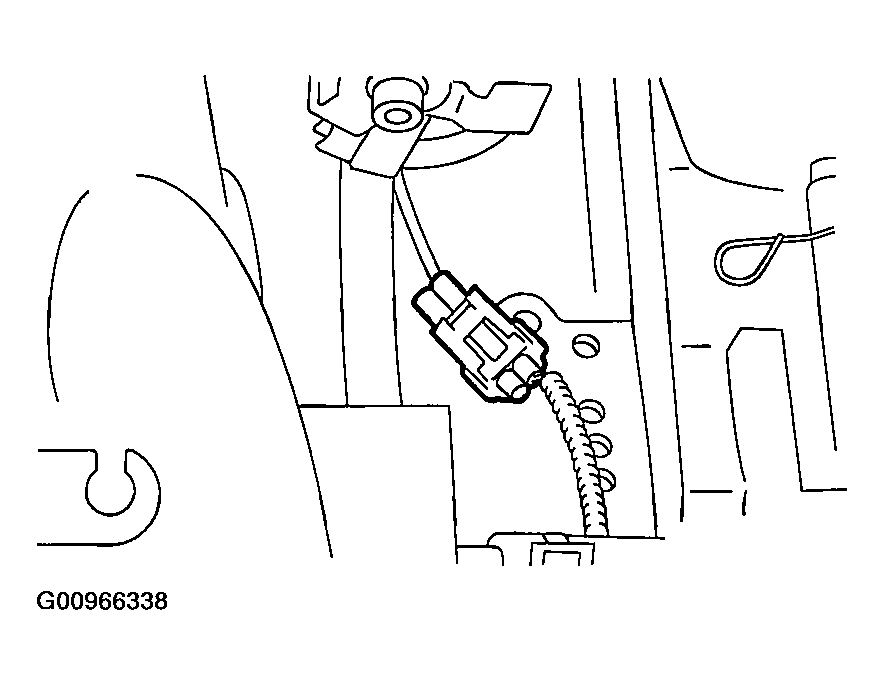

    Fig 2: Identifying Knock Sensor Connector
    G00966338Courtesy of SUBARU OF AMERICA, INC.
  3. Install the intercooler. < Ref. to INSTALLATION , Intercooler . >
  4. Connect the battery ground cable to battery.

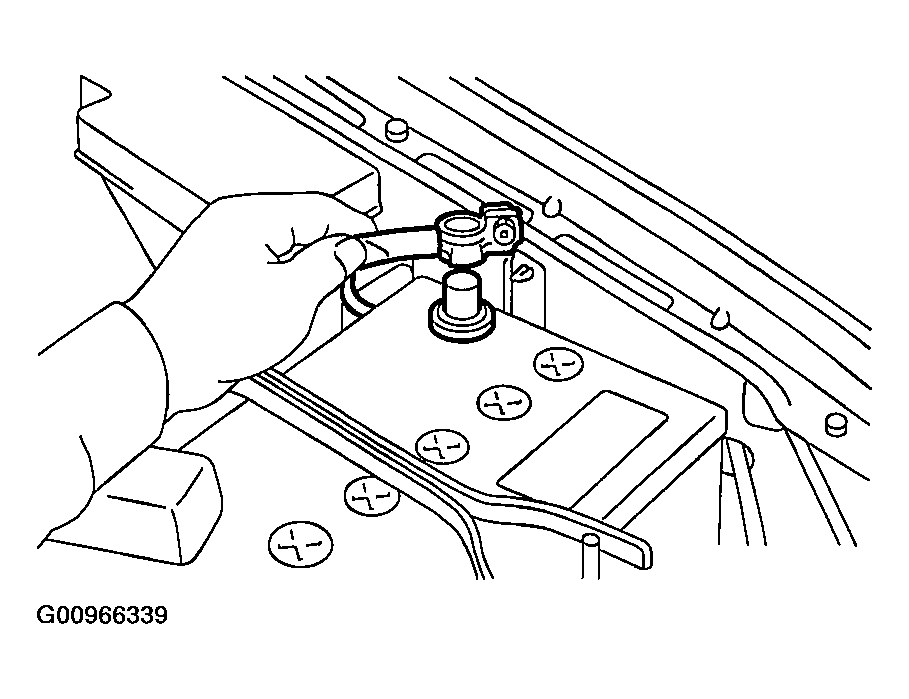

    Fig 3: Connecting Battery Ground Cable To Battery
    G00966339Courtesy of SUBARU OF AMERICA, INC.
