Electrical Specification

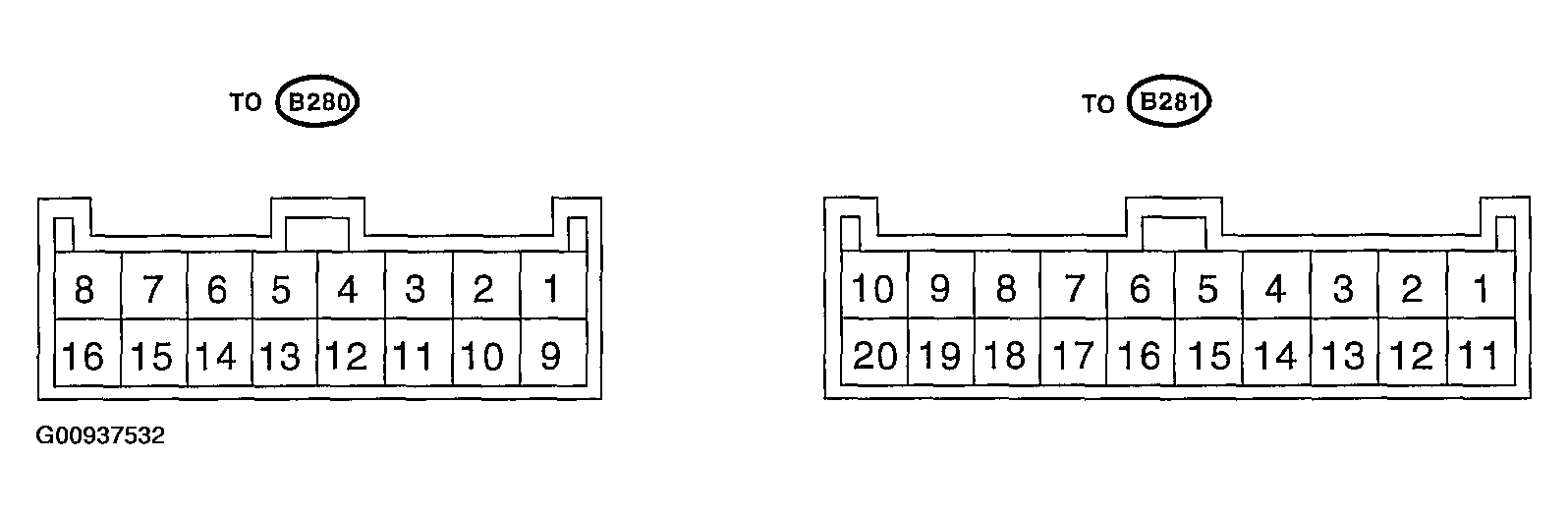

Fig 1: Identifying Electrical A/T Shift Lock System Connectors

G00937532

Courtesy of SUBARU OF AMERICA, INC.

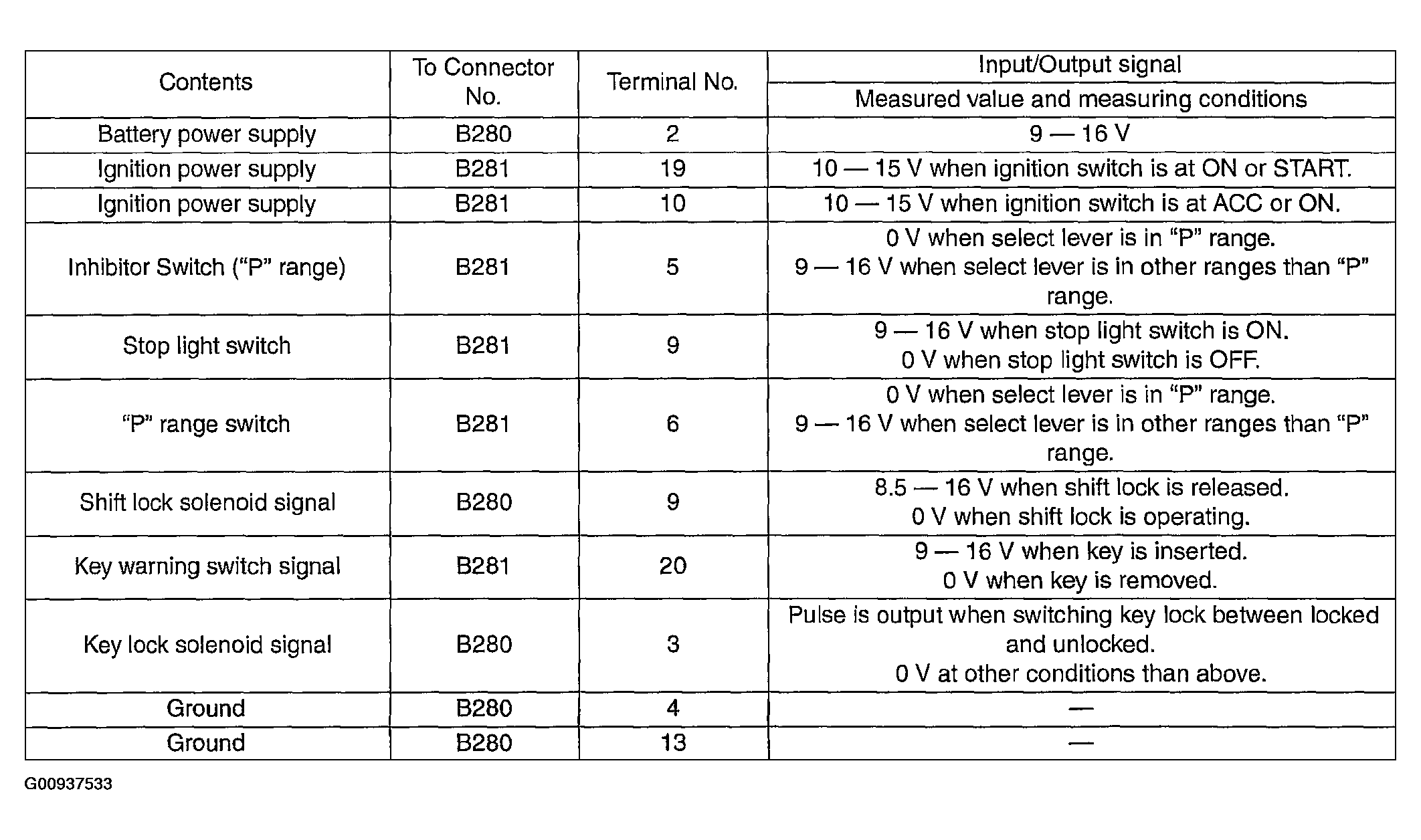

Fig 2: Terminal Specification

G00937533

Courtesy of SUBARU OF AMERICA, INC.
