Automatic Transmission - Mechanism & Function
>>
Transmission Control Module (TCM)
>>
Control System
Control System

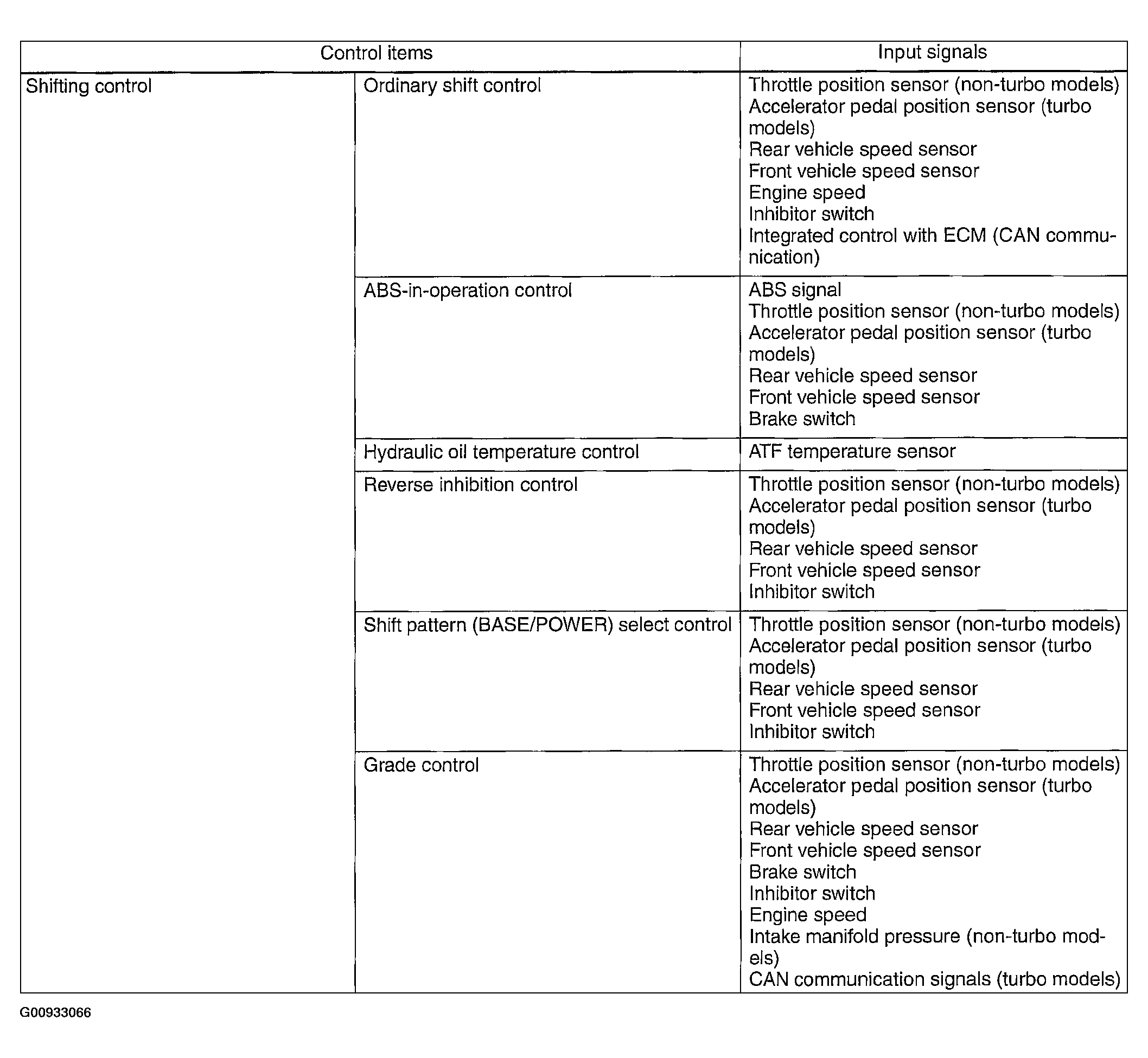

Fig 1: Transmission Control Module Control System Input Signal Chart (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

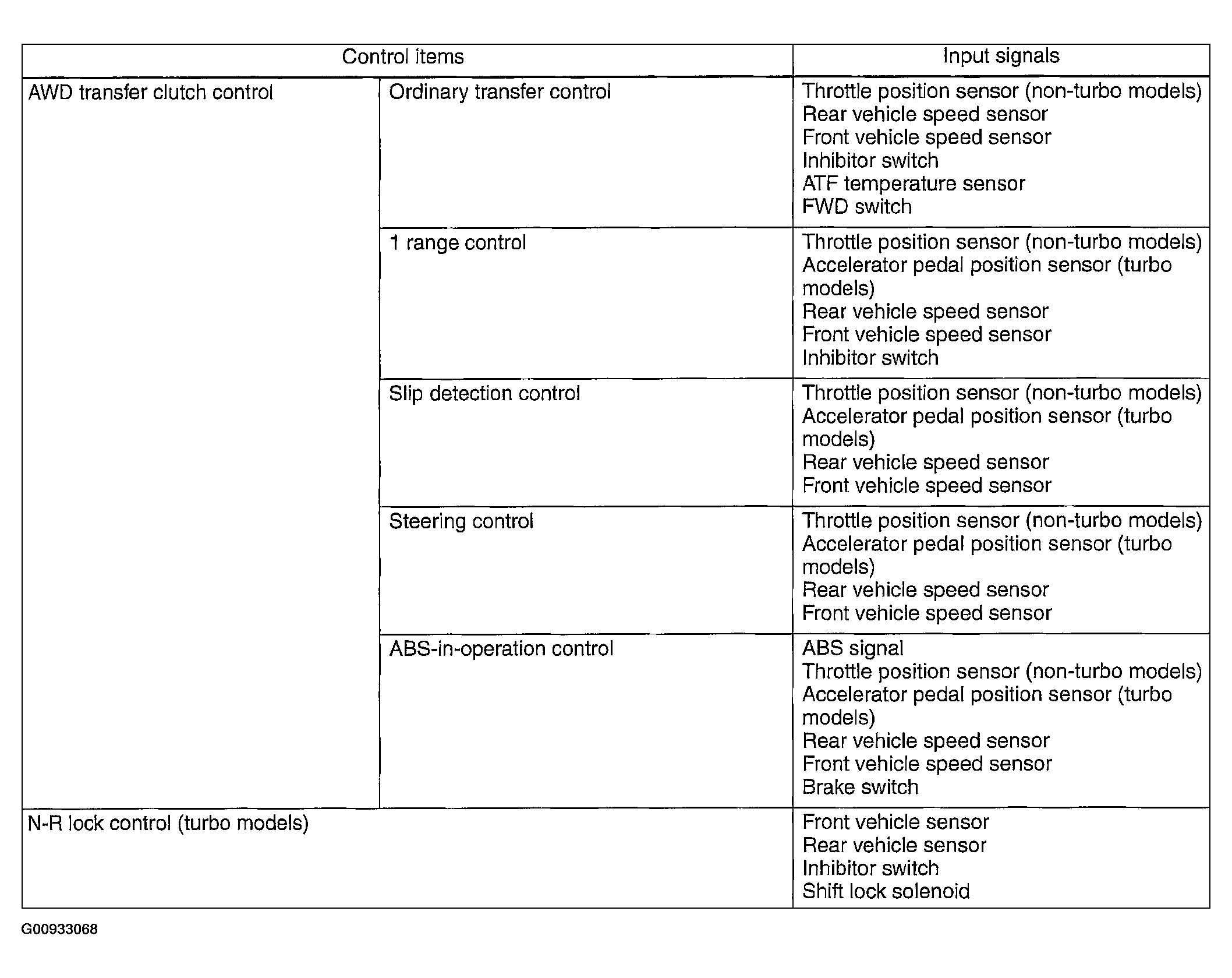

Fig 2: Transmission Control Module Control System Input Signal Chart (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

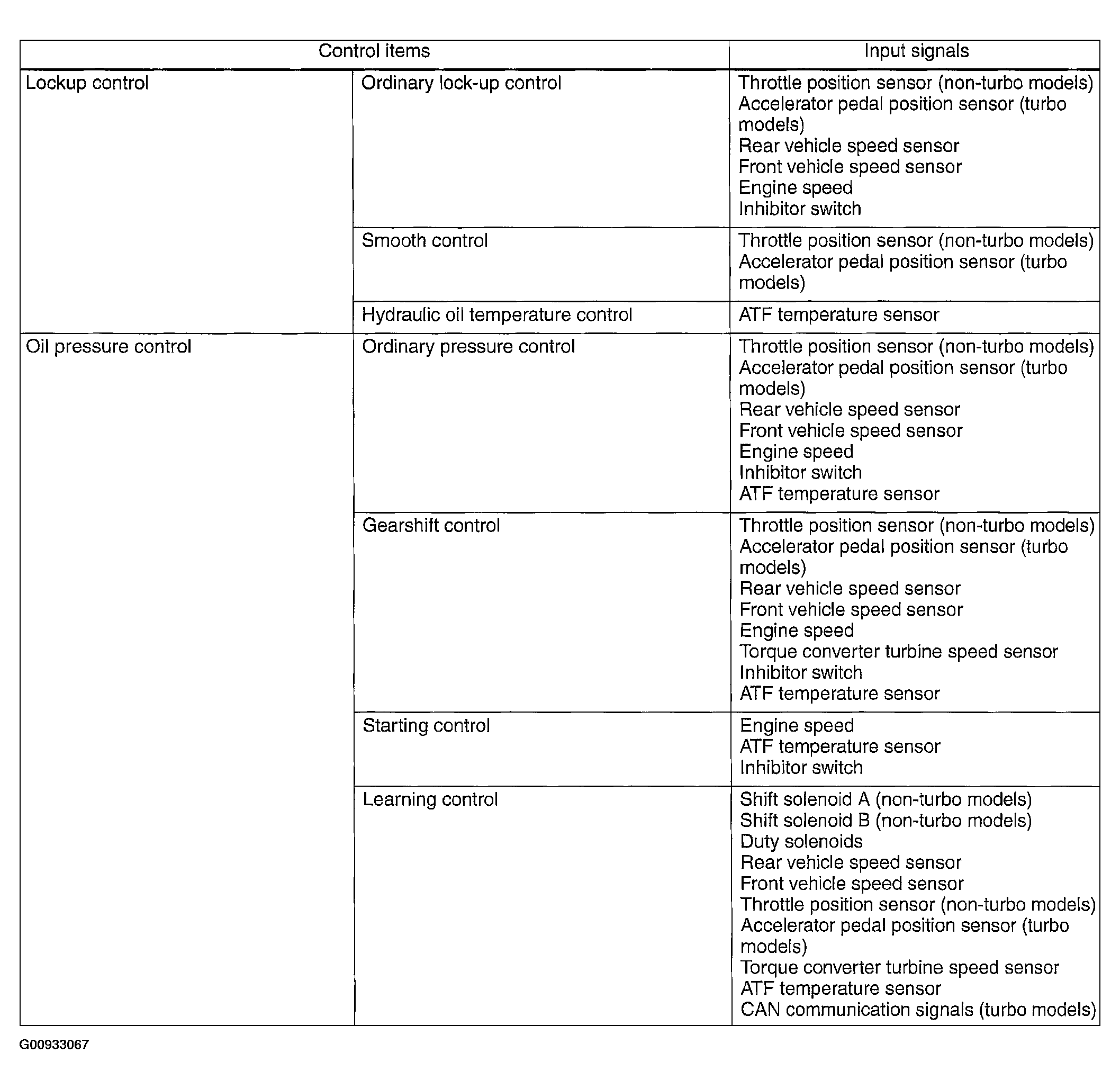

Fig 3: Transmission Control Module Control System Input Signal Chart (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
