Dropping Resistor: Installation

Install in the reverse order of removal.

1. Tightening torque: 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

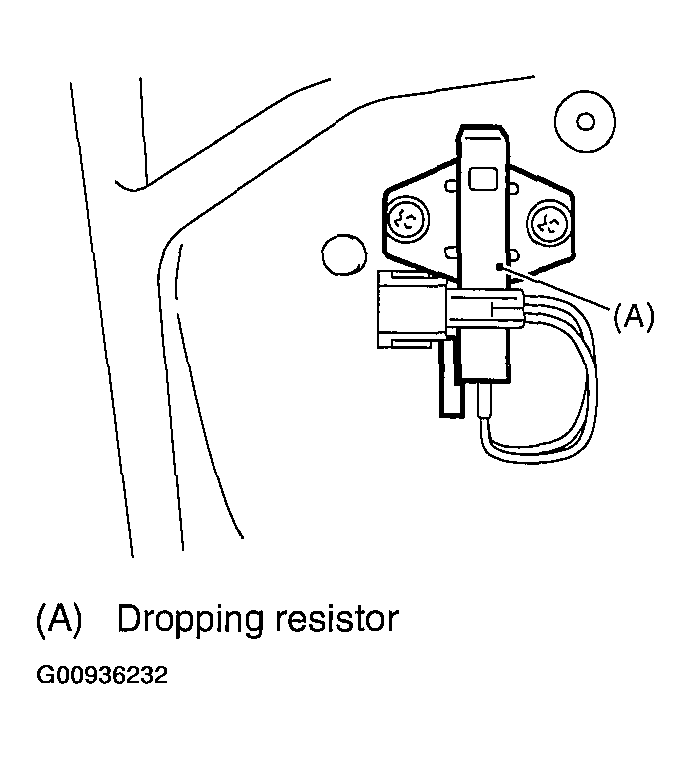

Fig 1: Identifying Dropping Resistor

Courtesy of SUBARU OF AMERICA, INC.
