Extension Case: Removal

  1. Remove the transmission assembly. < Ref. to REMOVAL . >
  2. Remove rear vehicle speed sensor.
    • NON-TURBO MODEL

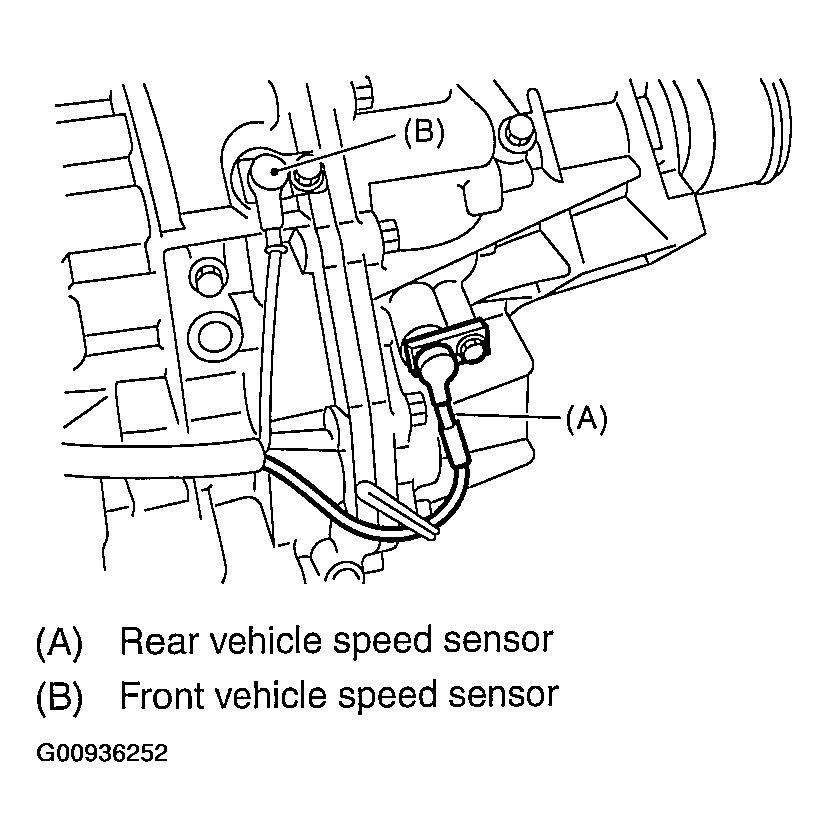

      Fig 1: Identifying Rear Vehicle Speed Sensor (Non-Turbo Model)
      G00936252Courtesy of SUBARU OF AMERICA, INC.
    • TURBO MODEL

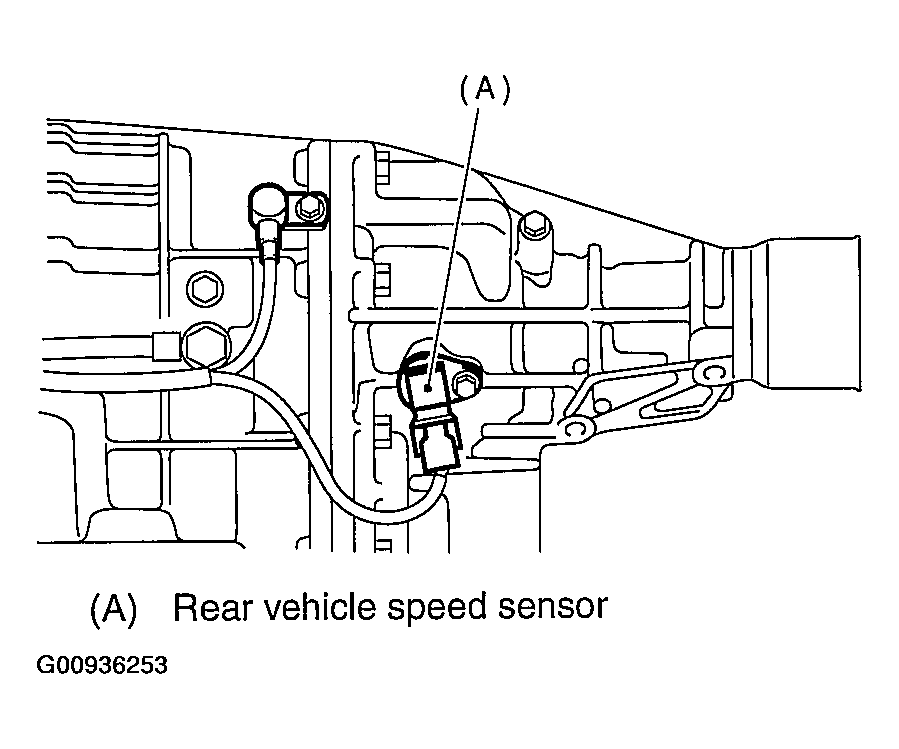

      Fig 2: Identifying Rear Vehicle Speed Sensor (Turbo Model)
      G00936253Courtesy of SUBARU OF AMERICA, INC.
  3. Separate transmission case and extension case sections.

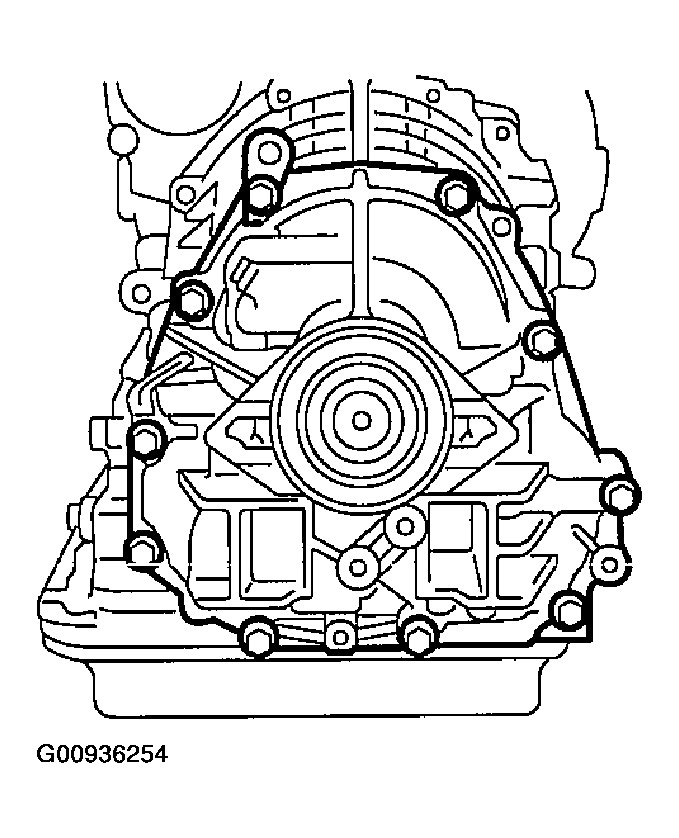

    Fig 3: Separating Transmission Case And Extension Case Sections
    G00936254Courtesy of SUBARU OF AMERICA, INC.
