Differential Side Retainer

  1. Install bearing outer race to differential side retainer.
  2. Install a new oil seal using the ST and a plastic hammer.
    1. ST 18675AA000 DIFFERENTIAL OIL SEAL INSTALLER

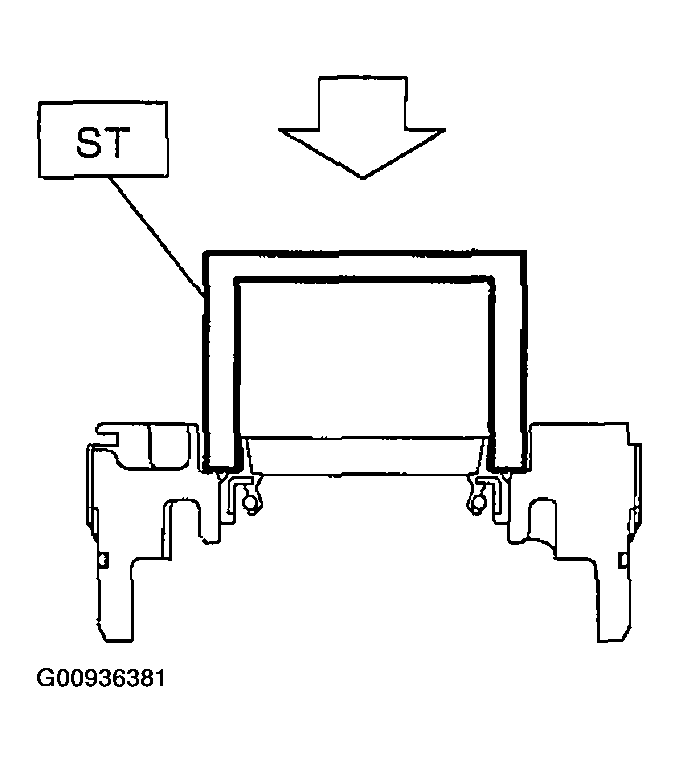

    Fig 1: Identifying New Oil Seal
    G00936381Courtesy of SUBARU OF AMERICA, INC.
  3. Install new O-ring.

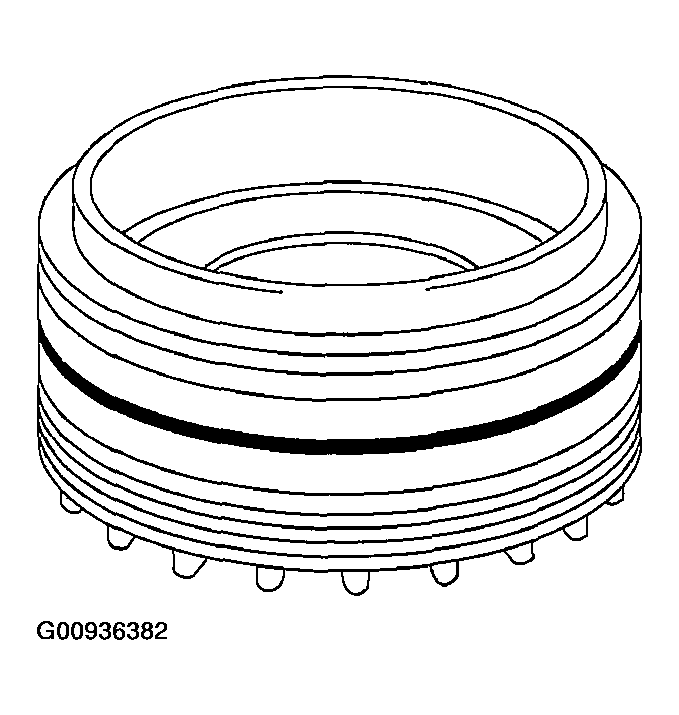

    Fig 2: Identifying New O-Ring
    G00936382Courtesy of SUBARU OF AMERICA, INC.
