Home >> Subaru >> 2004 >> Forester XT, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Rear Vehicle Speed Sensor >> Removal >> Turbo Model

Turbo Model

  1. Set the vehicle on a lift.
  2. Disconnect the ground cable from battery.
  3. Lift-up the vehicle.
  4. Disconnect the rear vehicle speed sensor connector.

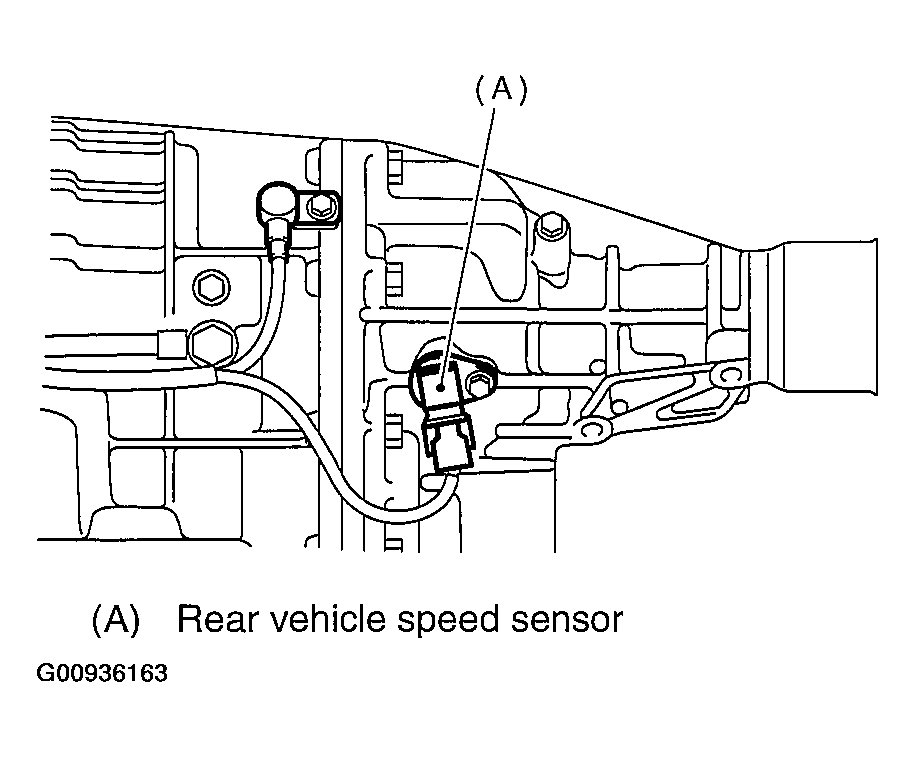

    Fig 1: Disconnecting Rear Vehicle Speed Sensor Connector
    G00936163Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the rear vehicle speed sensor.

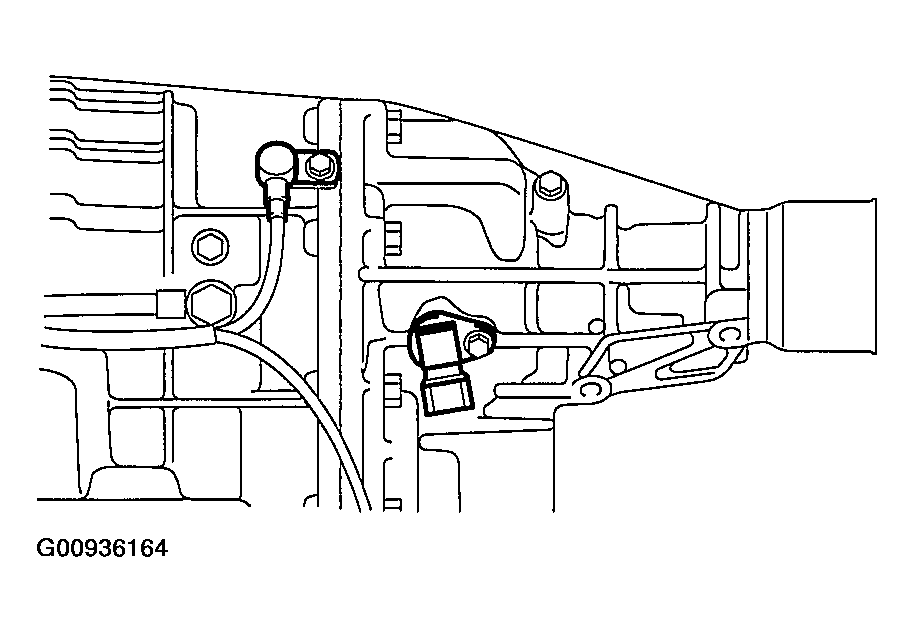

    Fig 2: Identifying Rear Vehicle Speed Sensor
    G00936164Courtesy of SUBARU OF AMERICA, INC.
