Reduction Drive Gear: Assembly

  1. Press-fit the reduction drive gear to the shaft.
  2. Press-fit the a new ball bearing to the reduction drive gear.
  3. Apply Vaseline to outer surface of new seal ring and shaft groove.
  4. Attach seal rings.

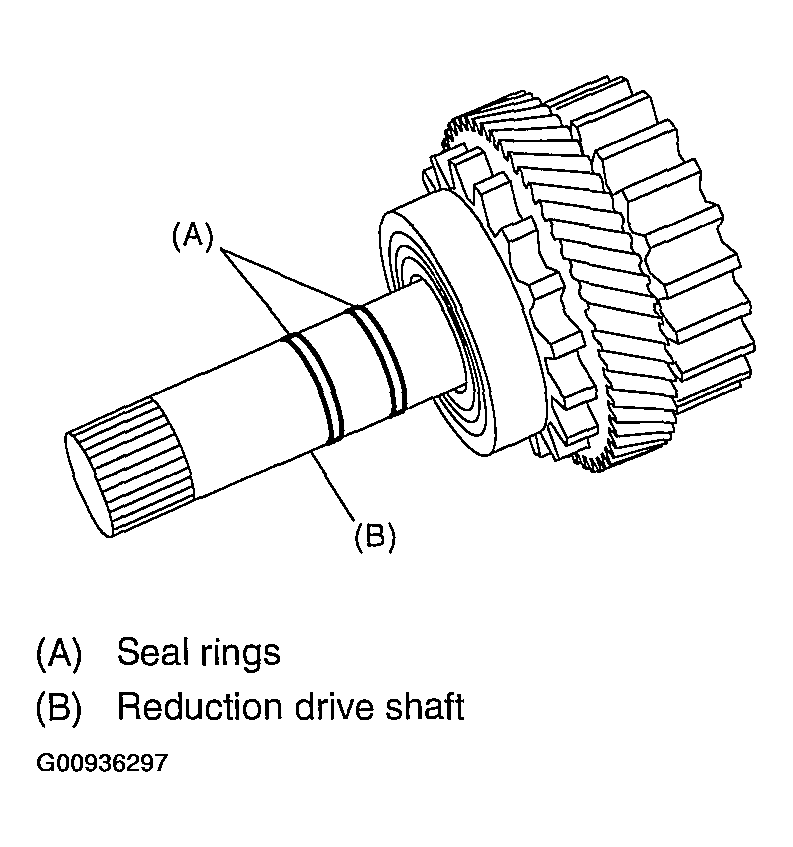

    Fig 1: Attaching Seal Rings
    G00936297Courtesy of SUBARU OF AMERICA, INC.
