Reduction Drive Gear: Installation

  1. Install the reduction drive gear assembly.
    NOTE: Insert it fully into position until the bearing shoulder bottoms.

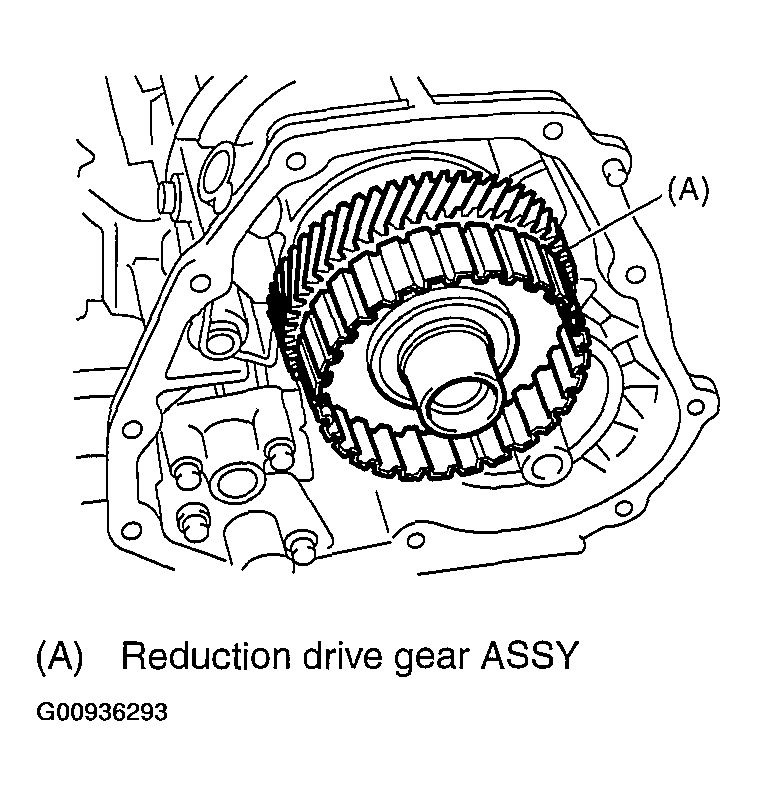

    Fig 1: Identifying Reduction Drive Gear Assembly
    G00936293Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reduction driven gear. < Ref. to INSTALLATION . >
  3. Combine the transmission case with the extension case, and install rear vehicle speed sensor. < Ref. to INSTALLATION . >
  4. Install the transmission assembly to the vehicle. < Ref. to INSTALLATION . >
