Transfer Clutch: Assembly

Install the transfer clutch piston.

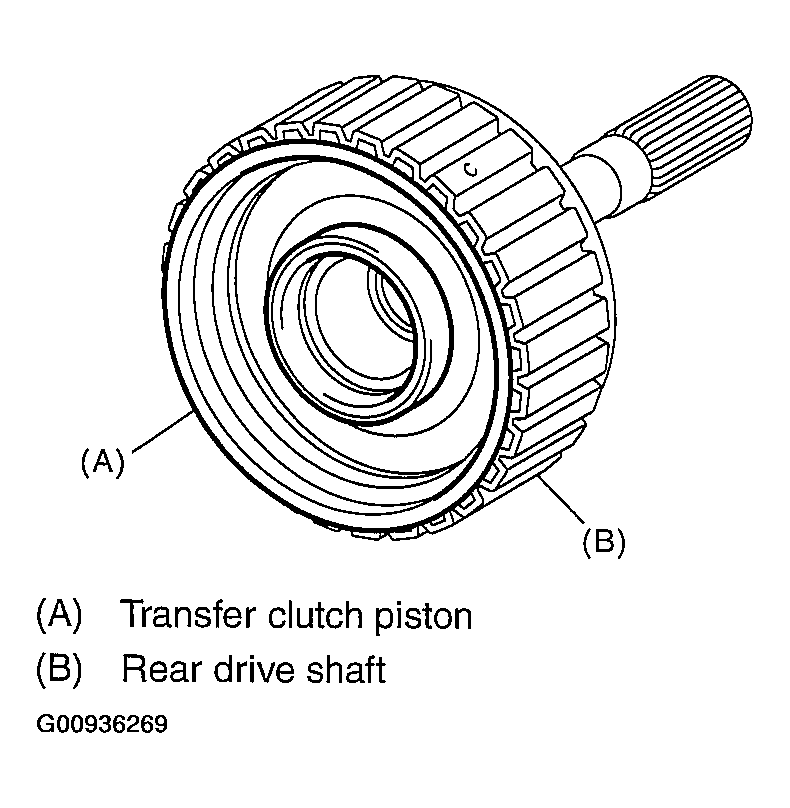

Fig 1: Identifying Transfer Clutch Piston
Courtesy of SUBARU OF AMERICA, INC.
Install return spring to transfer clutch piston.

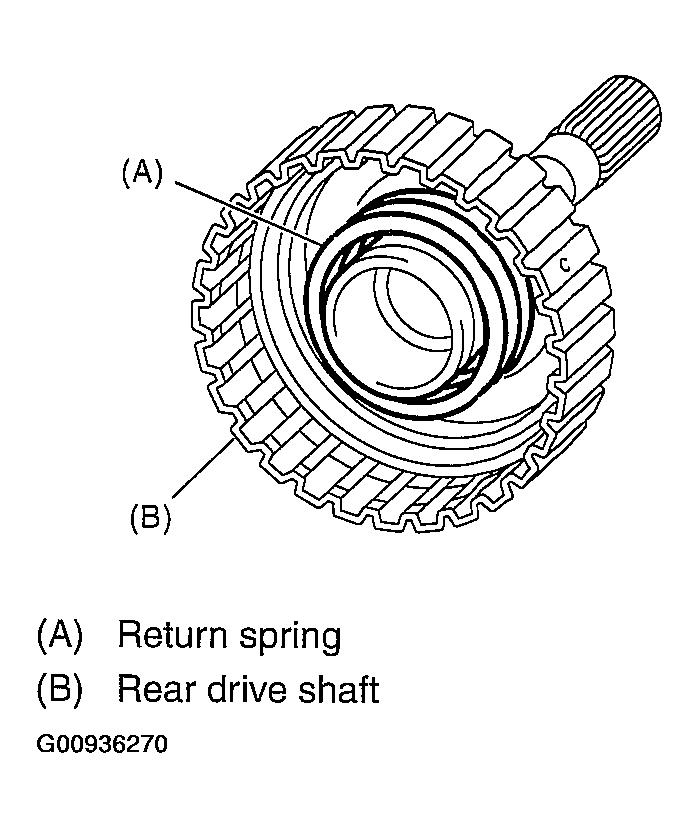

Fig 2: Identifying Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Install transfer clutch piston seal.

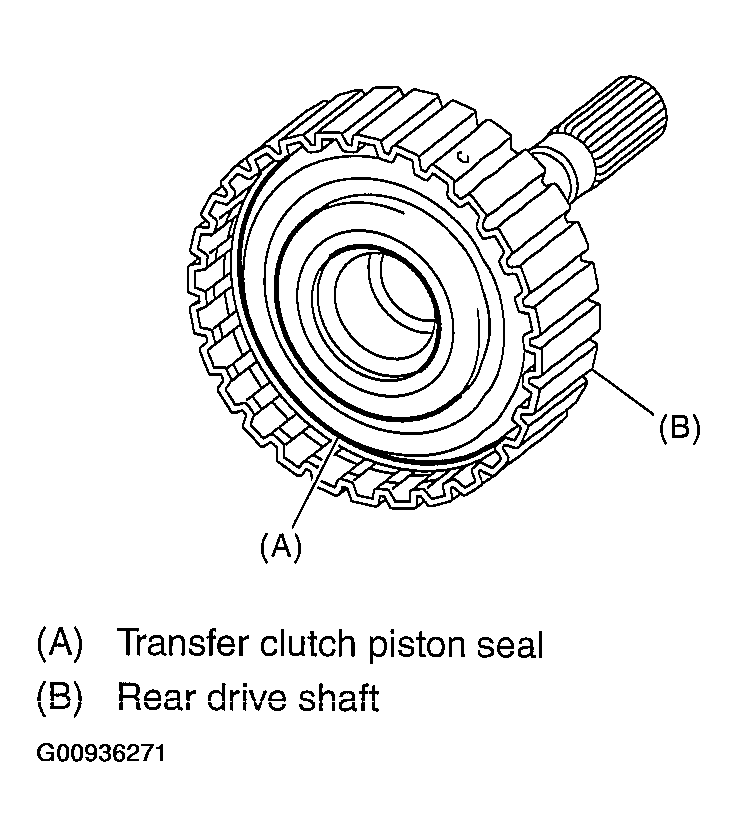

Fig 3: Install Transfer Clutch Piston Seal
Courtesy of SUBARU OF AMERICA, INC.

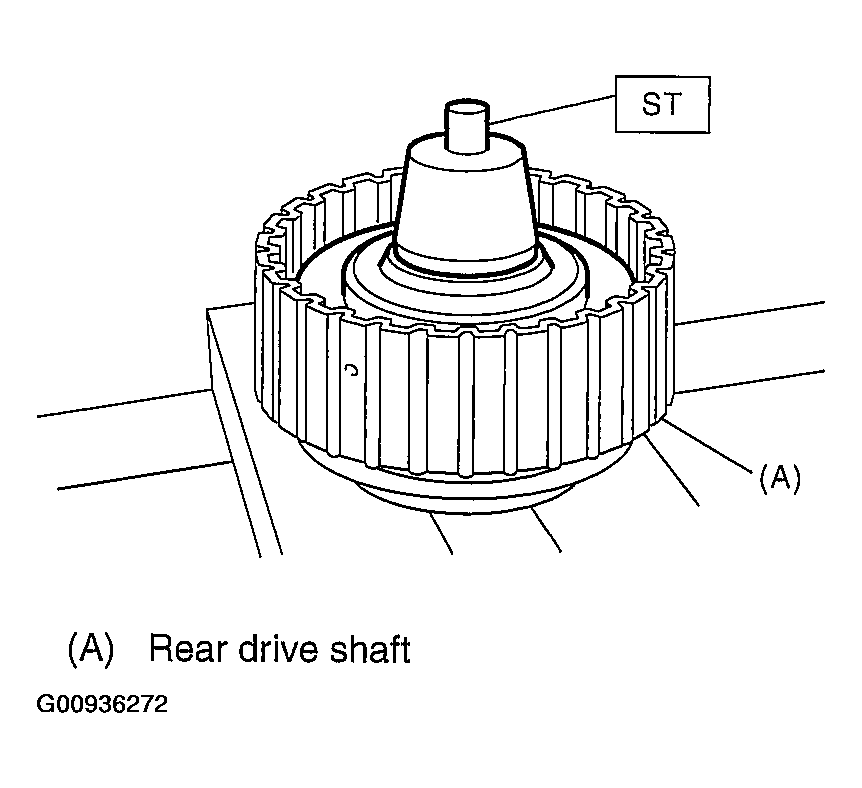

Install ST to rear drive shaft.
ST 499257300 SNAP RING OUTER GUIDE

Fig 4: Identifying ST & Rear Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.
Install snap ring to ST.
ST 499257300 SNAP RING OUTER GUIDE

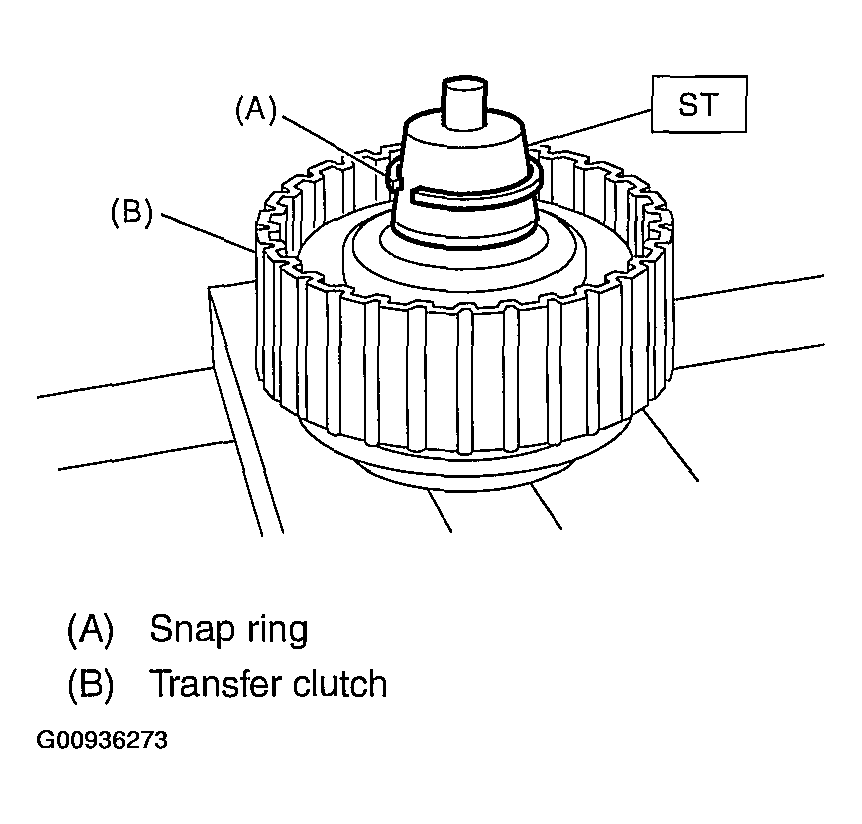

Fig 5: Identifying Snap Ring
Courtesy of SUBARU OF AMERICA, INC.

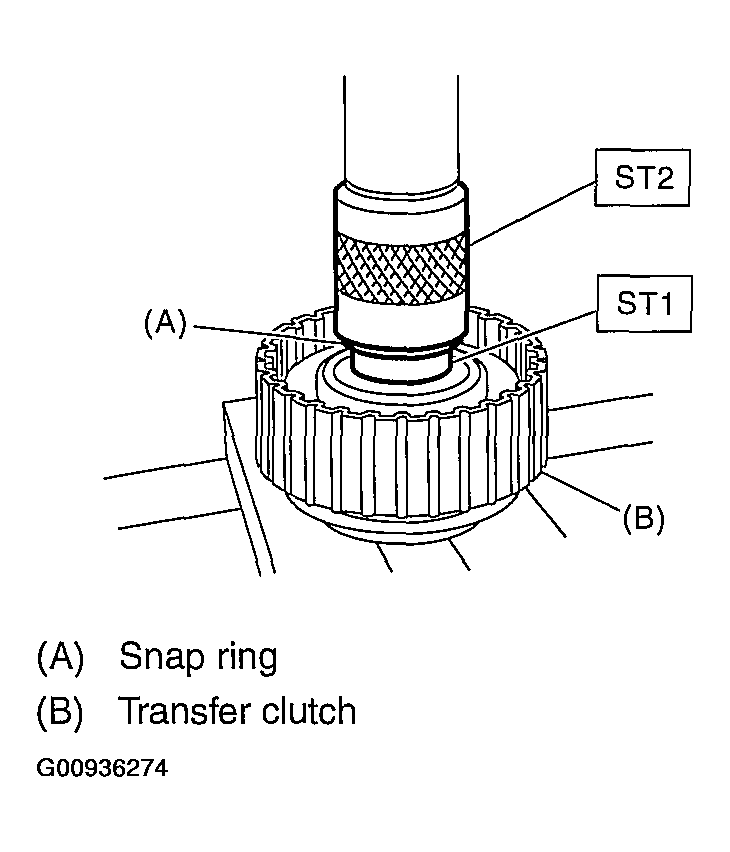

Using ST1 and ST2, install snap ring to rear drive shaft.
ST1 499257300 SNAP RING OUTER GUIDE

ST2 499247400 INSTALLER

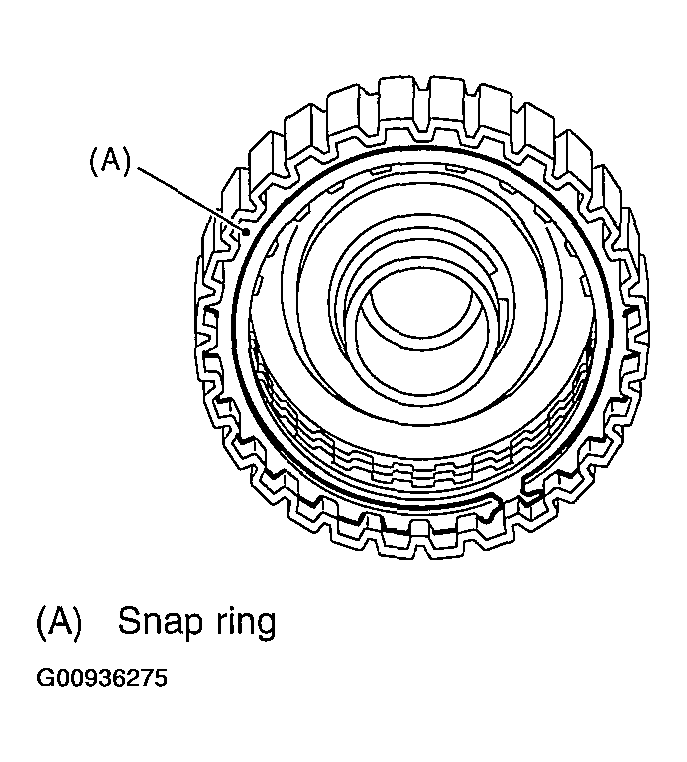

Fig 6: Identifying Rear Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.
Install the driven plates, drive plates, pressure plate, retaining plate and snap ring.

Fig 7: Identifying Driven Plates, Drive Plates, Pressure Plate, Retaining Plate And Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Apply compressed air to see if the assembled parts move smoothly.

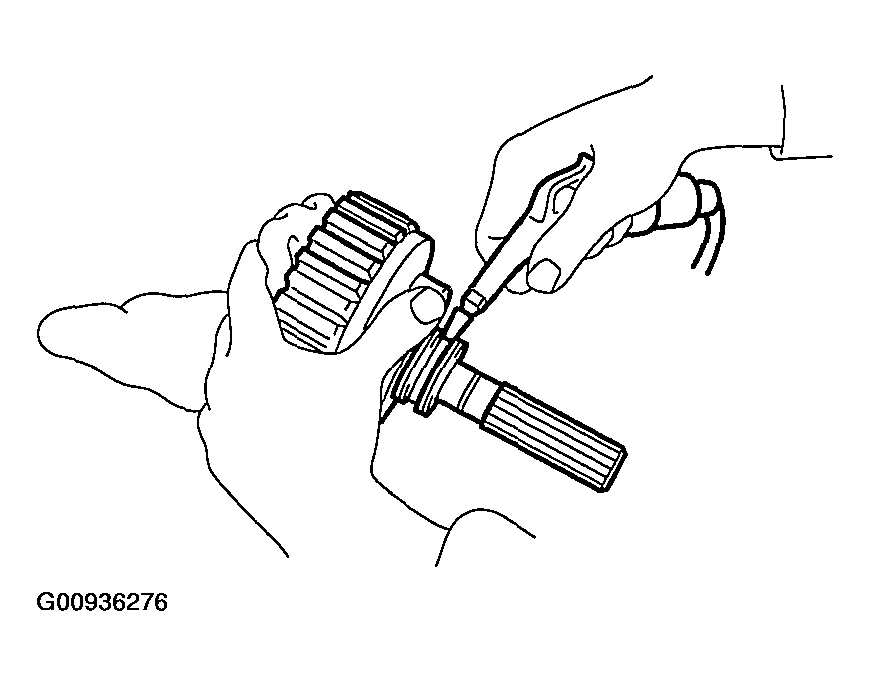

Fig 8: Applying Compressed Air To See If Assembled Parts Move Smoothly
Courtesy of SUBARU OF AMERICA, INC.
Check clearance between snap ring and pressure plate. < Ref. to INSPECTION <--, Transfer Clutch -->. >

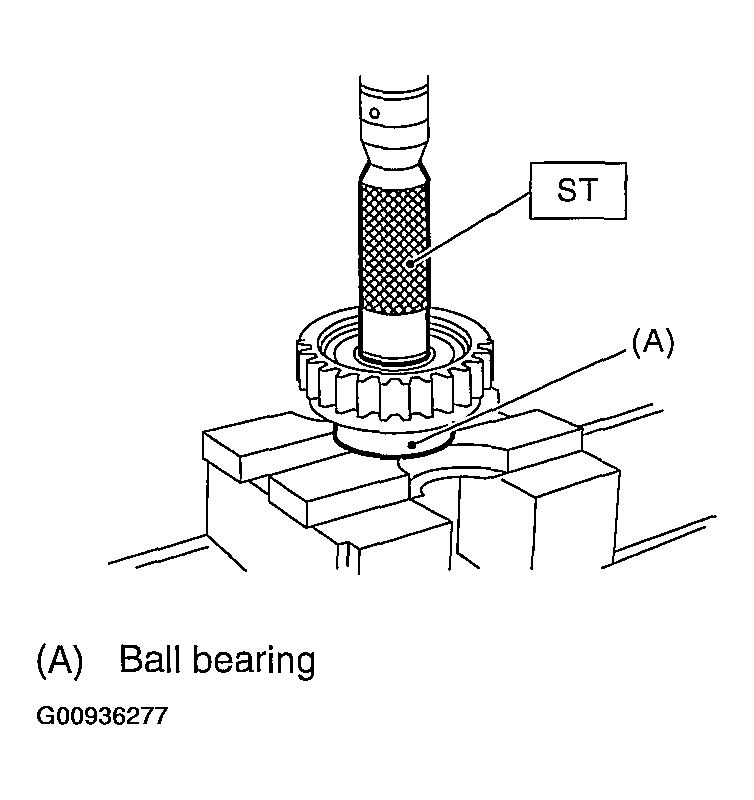

Press-fit a new ball bearing with ST.
ST 899580100 INSTALLER

Fig 9: Identifying New Ball Bearing With ST
Courtesy of SUBARU OF AMERICA, INC.
Coat a new seal ring with Vaseline, and install it in the seal ring groove of the rear drive shaft.
NOTE: Do not expand the seal ring excessively when installing.

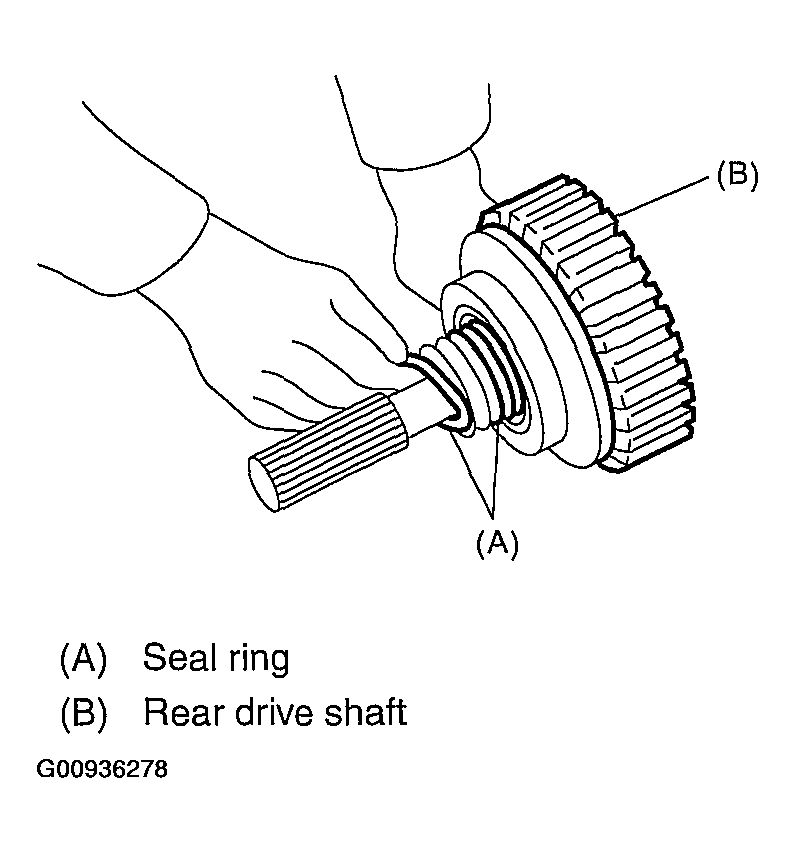

Fig 10: Identifying Seal Ring Groove
Courtesy of SUBARU OF AMERICA, INC.
Install the transfer clutch assembly without damaging seal ring.

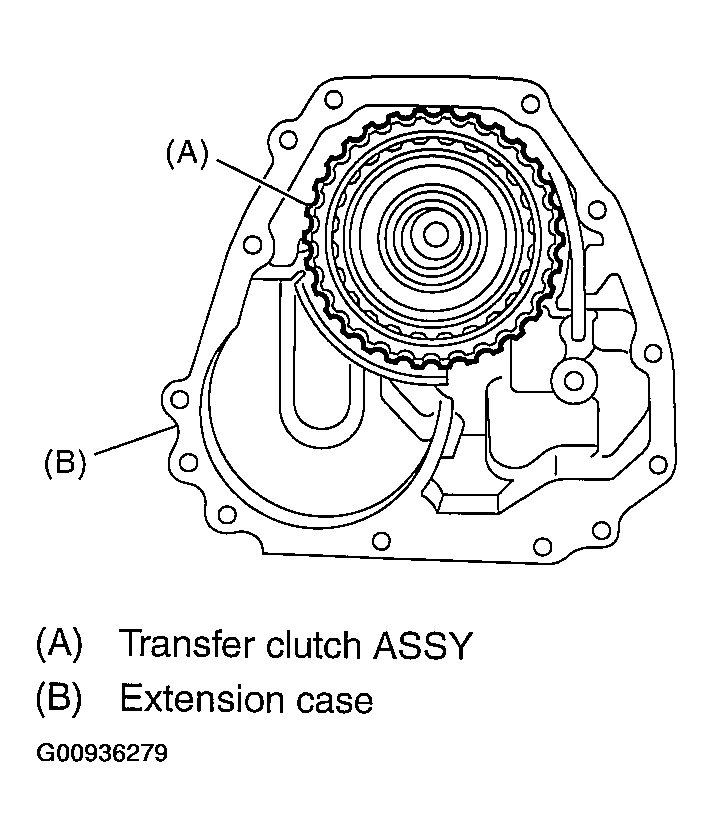

Fig 11: Identifying Transfer Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
