Transfer Clutch: Installation

Select the thrust needle bearing. < Ref. to ADJUSTMENT . >
Install the transfer clutch assembly to the case.

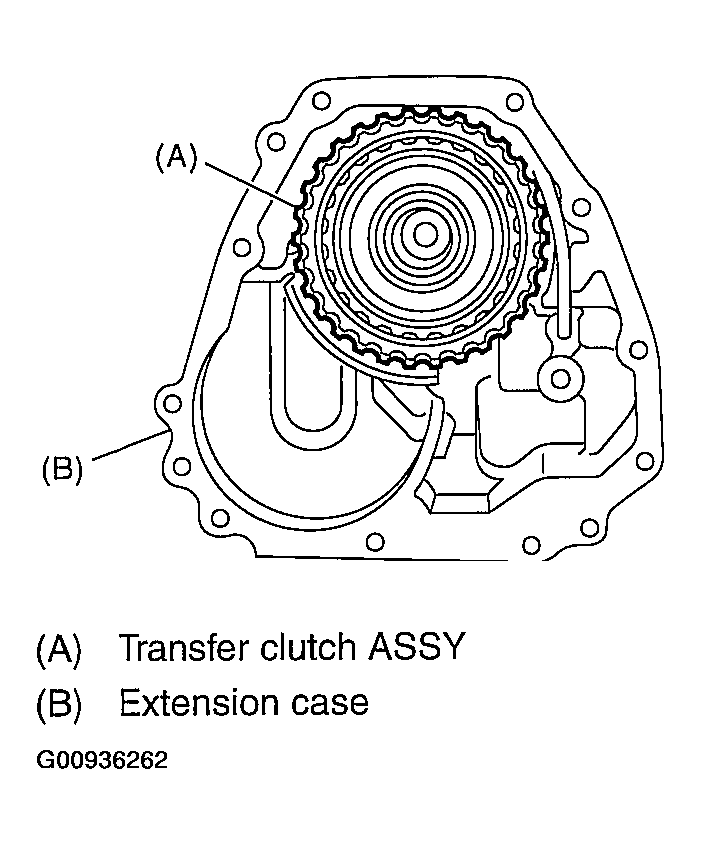

Fig 1: Identifying Transfer Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
Tighten bolts to secure the case.
1. Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

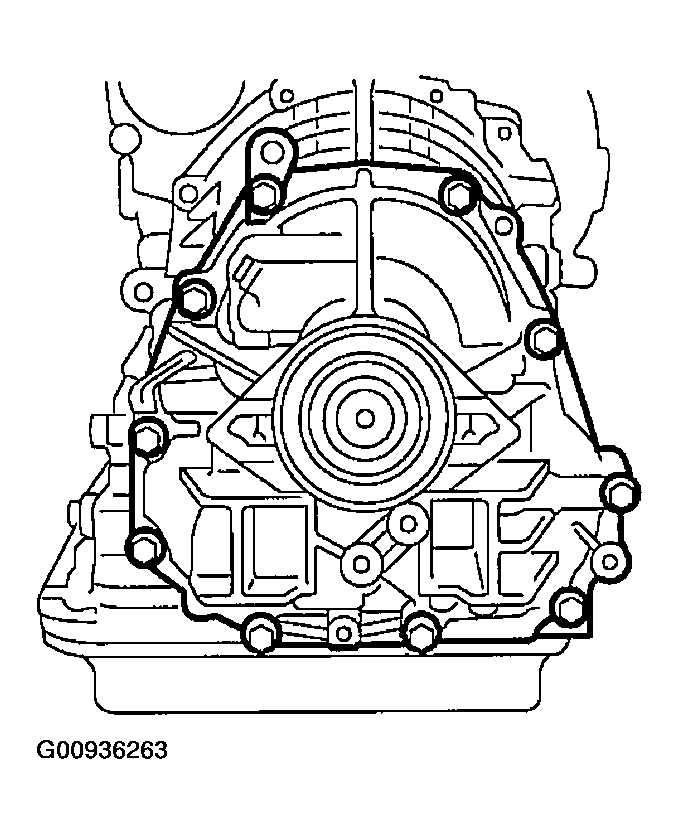

Fig 2: Tightening Bolts To Securing Case
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly to vehicle. < Ref. to INSTALLATION . >
