Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

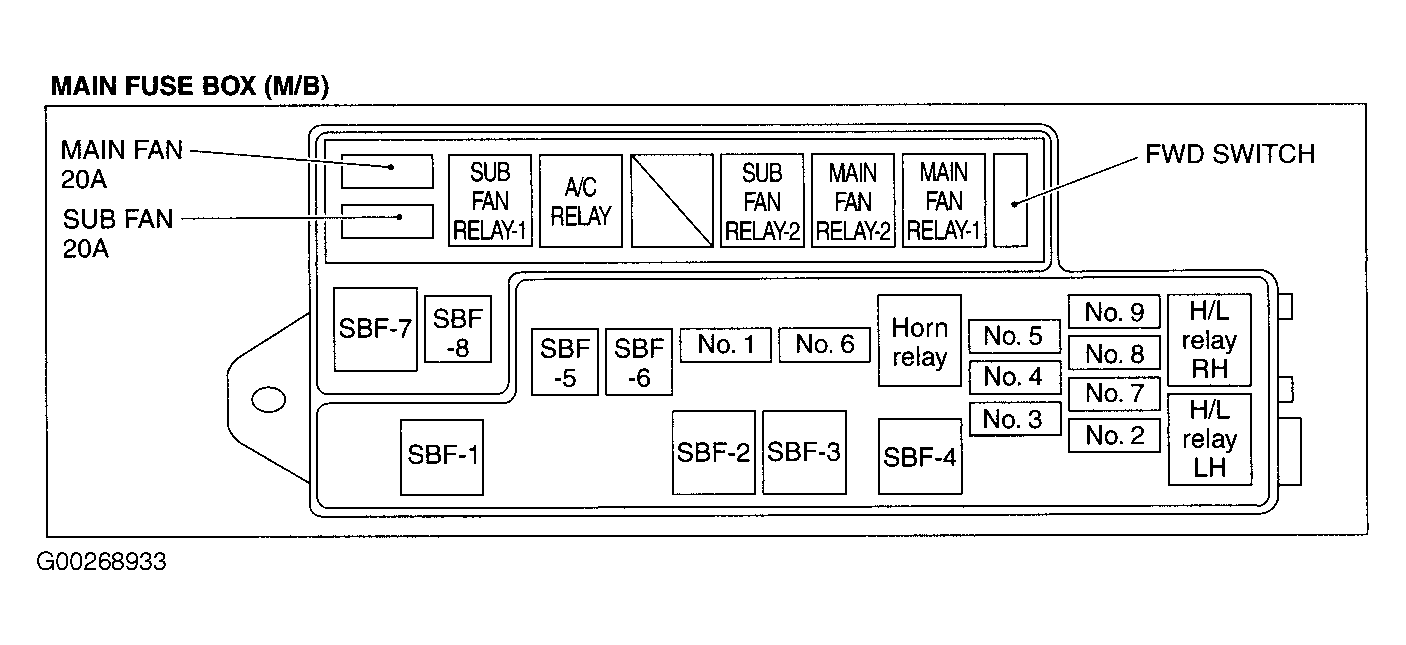

Fig 1: Main Fuse Box (M/B)

Courtesy of SUBARU OF AMERICA, INC.

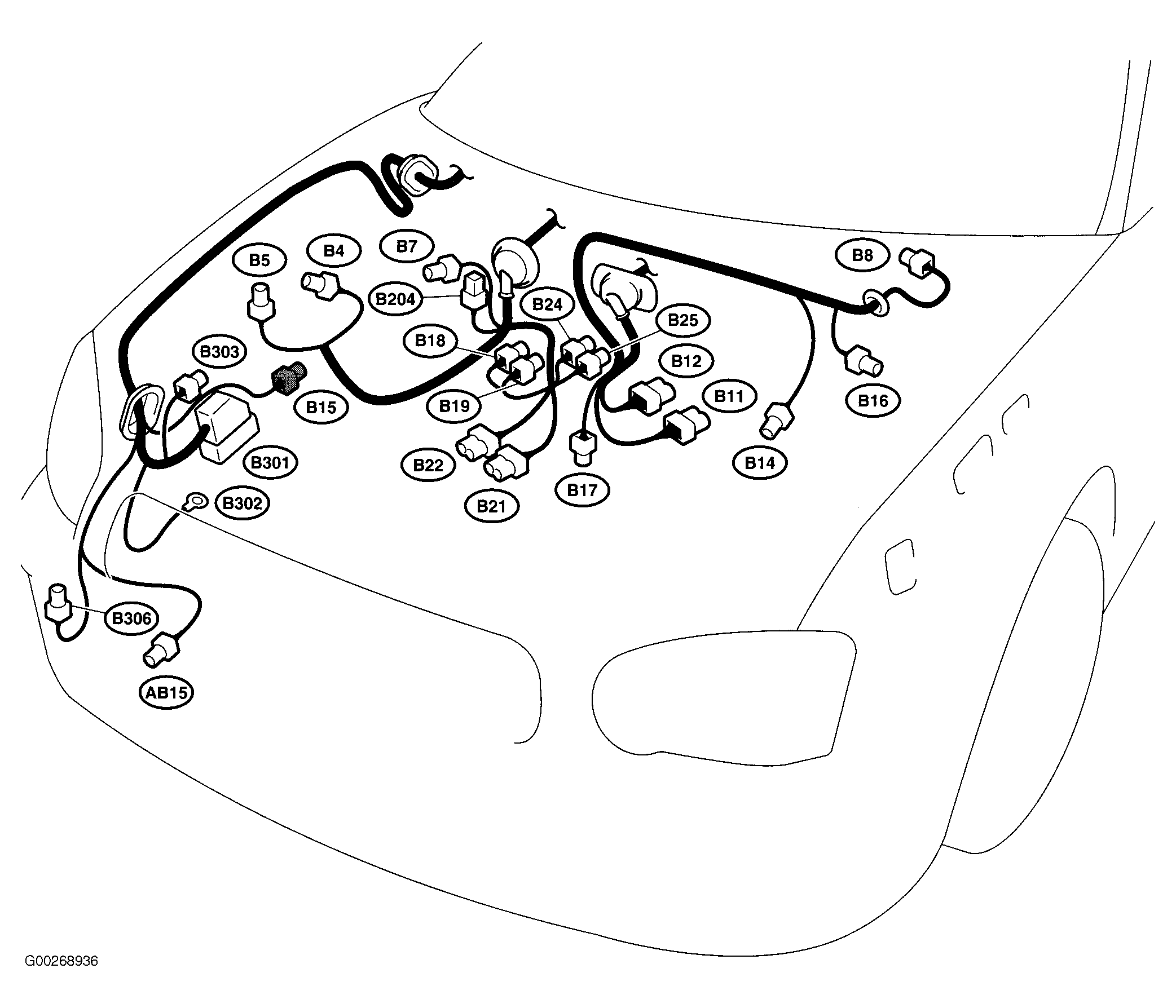

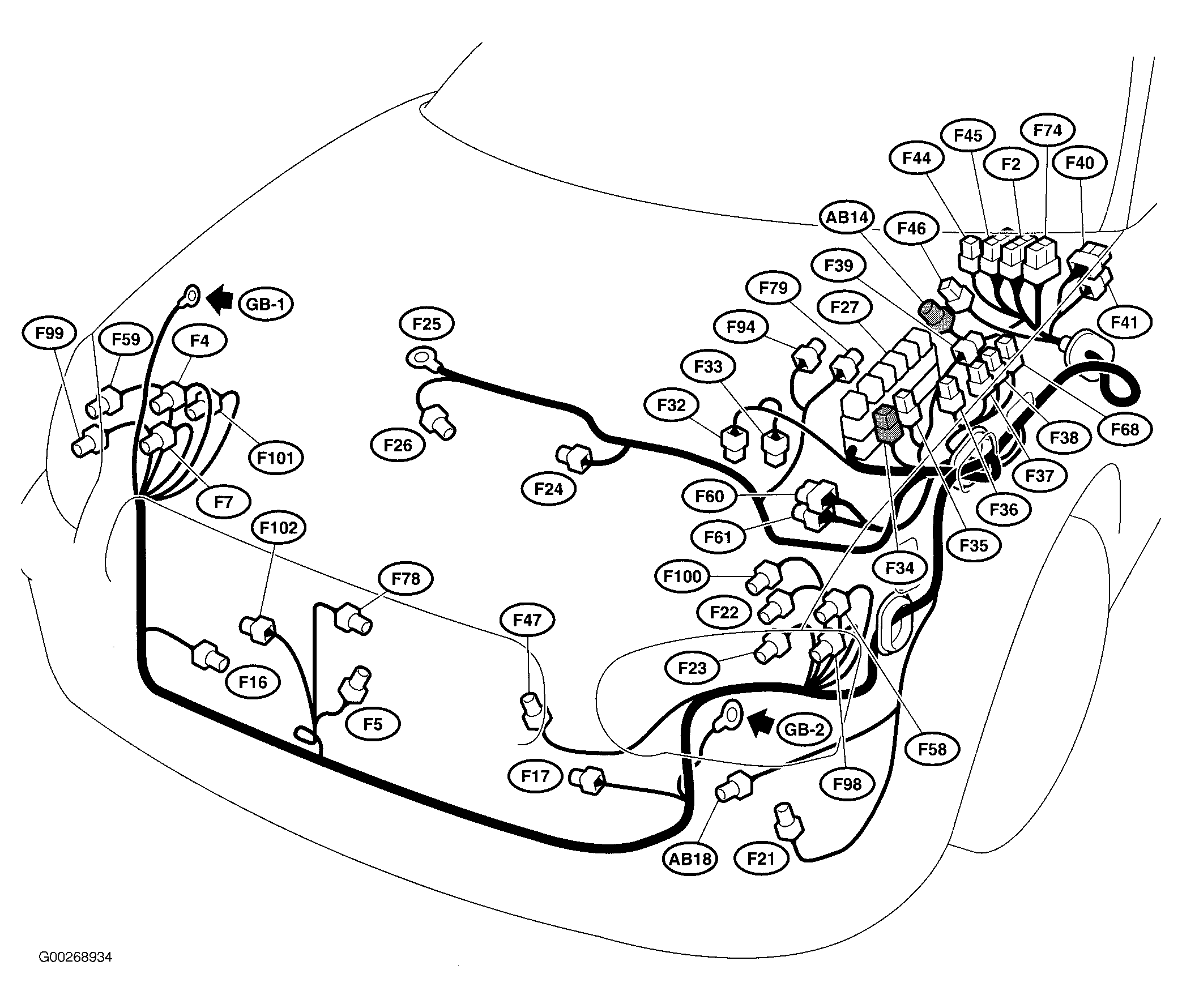

Fig 2: Front & Left Side Of Engine Compartment

Courtesy of SUBARU OF AMERICA, INC.

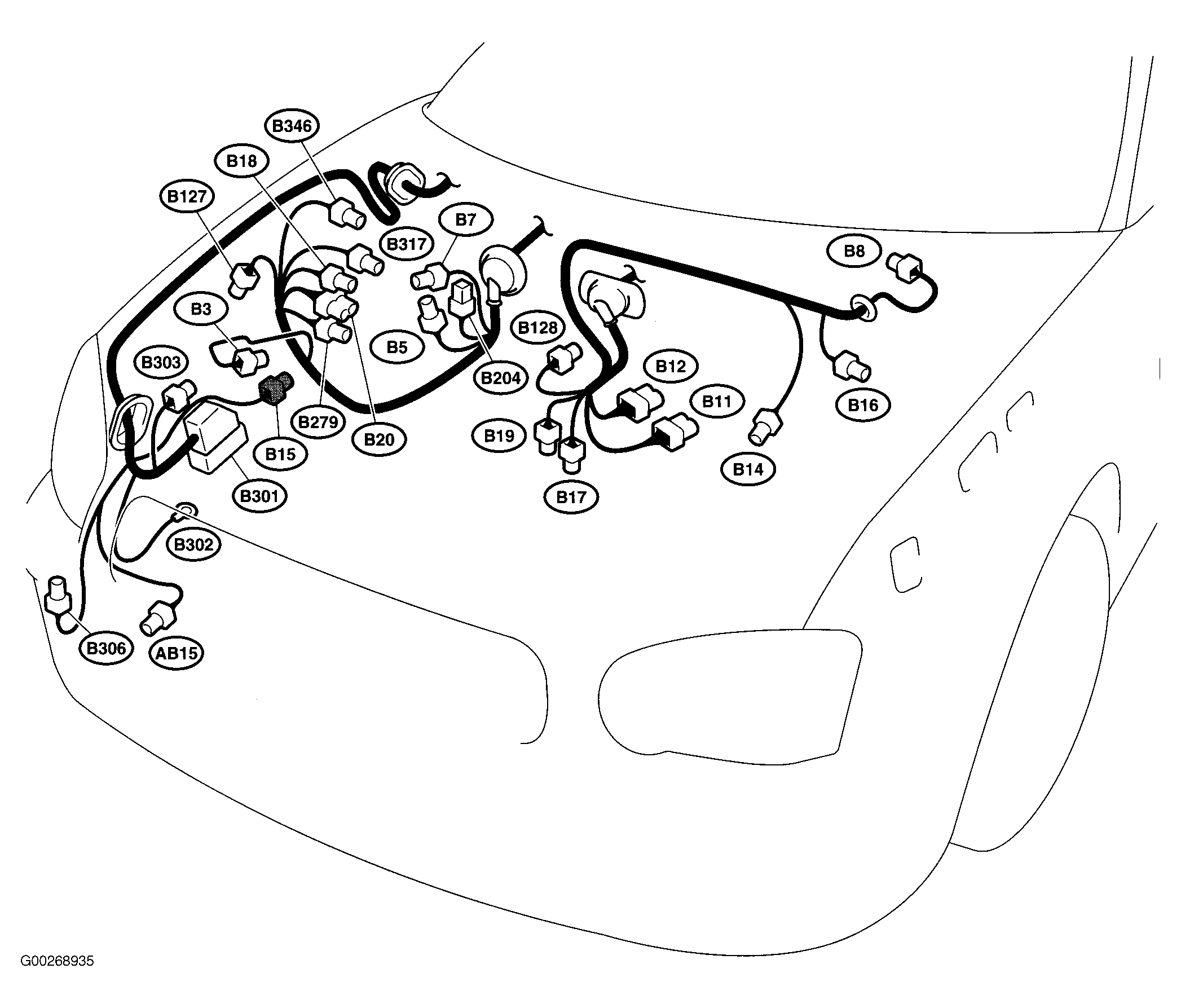

Fig 3: Right Side Of Engine Compartment (Turbo)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Right Side Of Engine Compartment (Non-Turbo)

Courtesy of SUBARU OF AMERICA, INC.

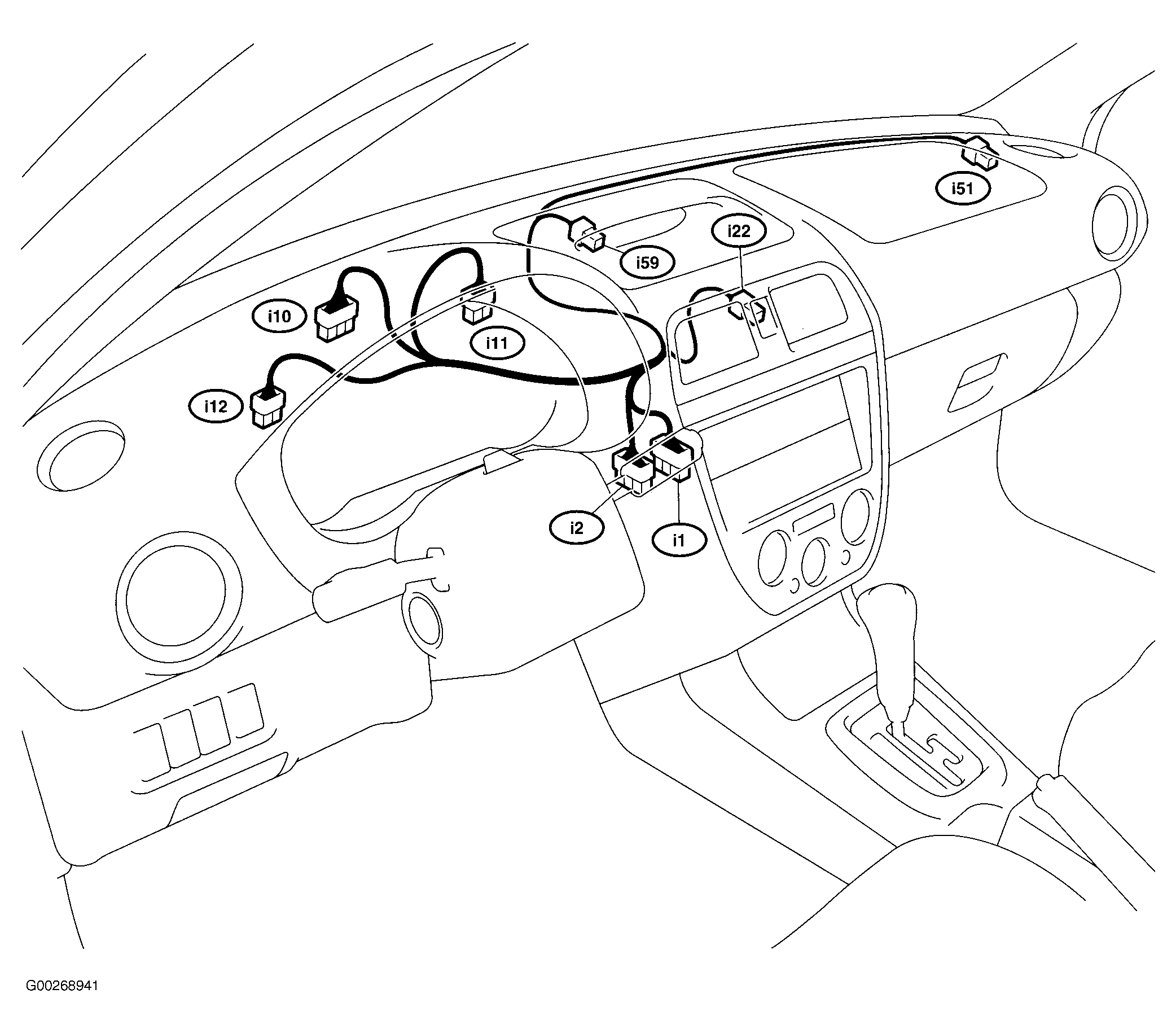

Fig 5: Dash & Center Console

Courtesy of SUBARU OF AMERICA, INC.

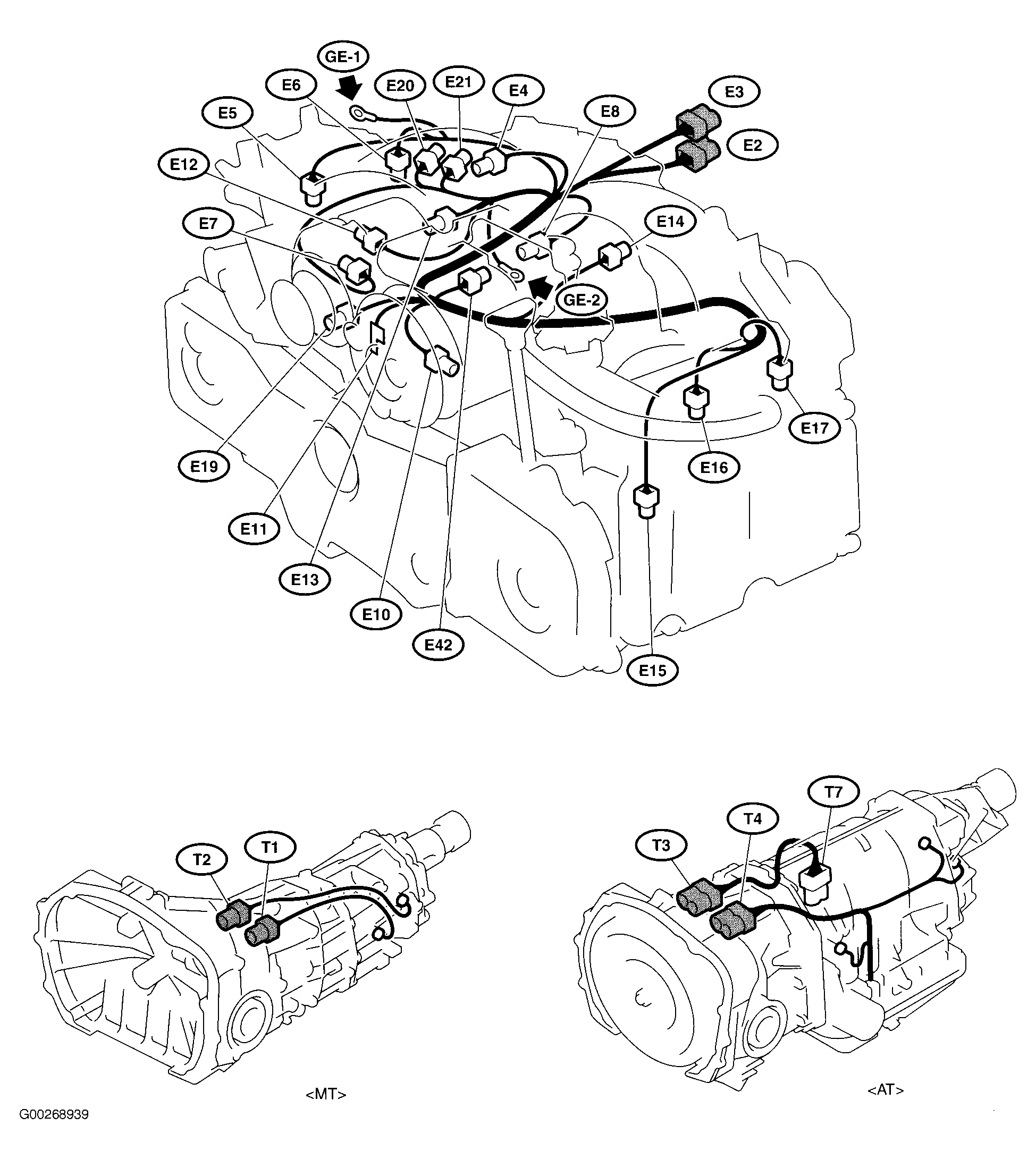

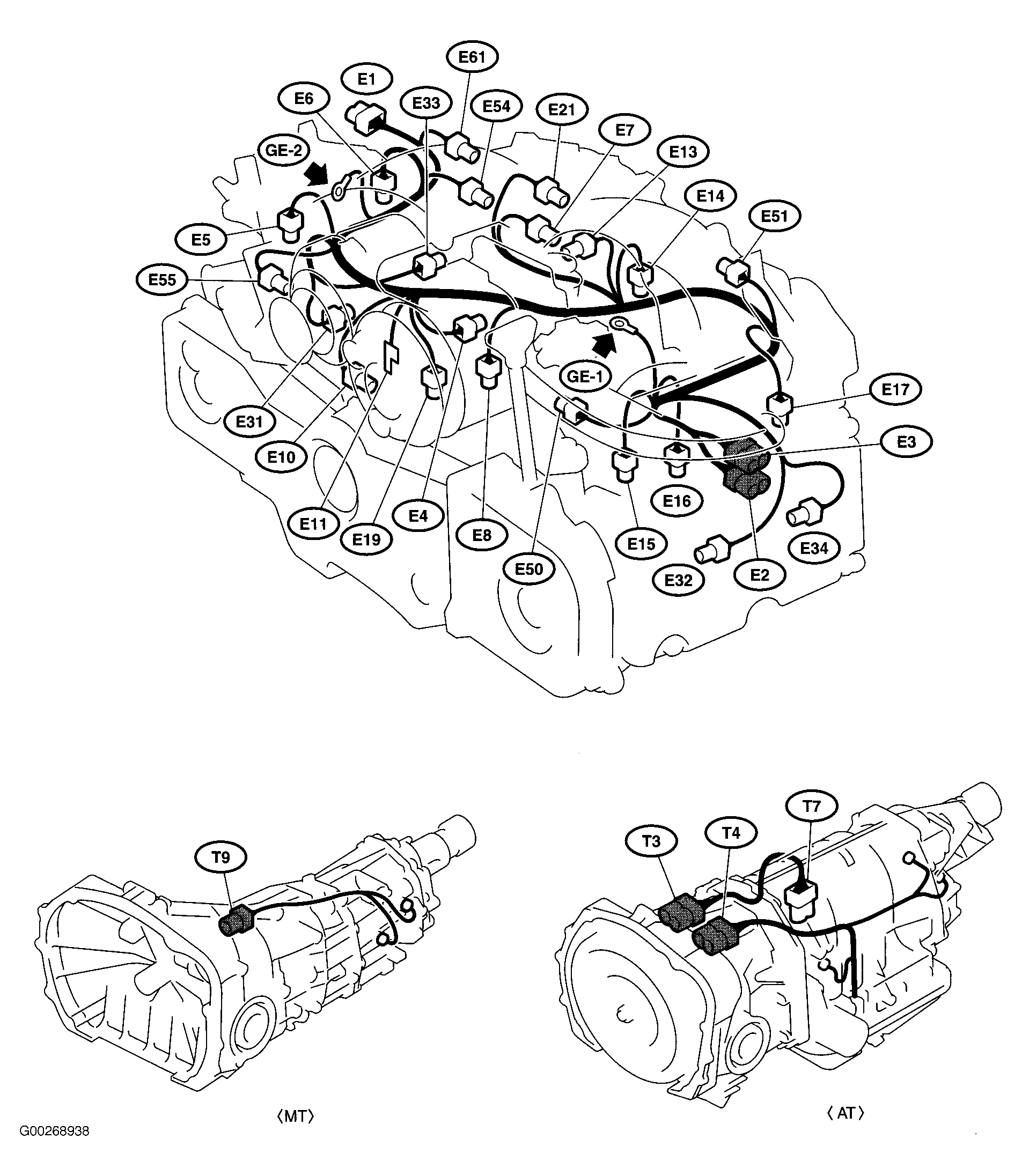

Fig 6: Engine & Transmissions (2.5L Turbo)

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Engine & Transmissions (2.0L)

Courtesy of SUBARU OF AMERICA, INC.

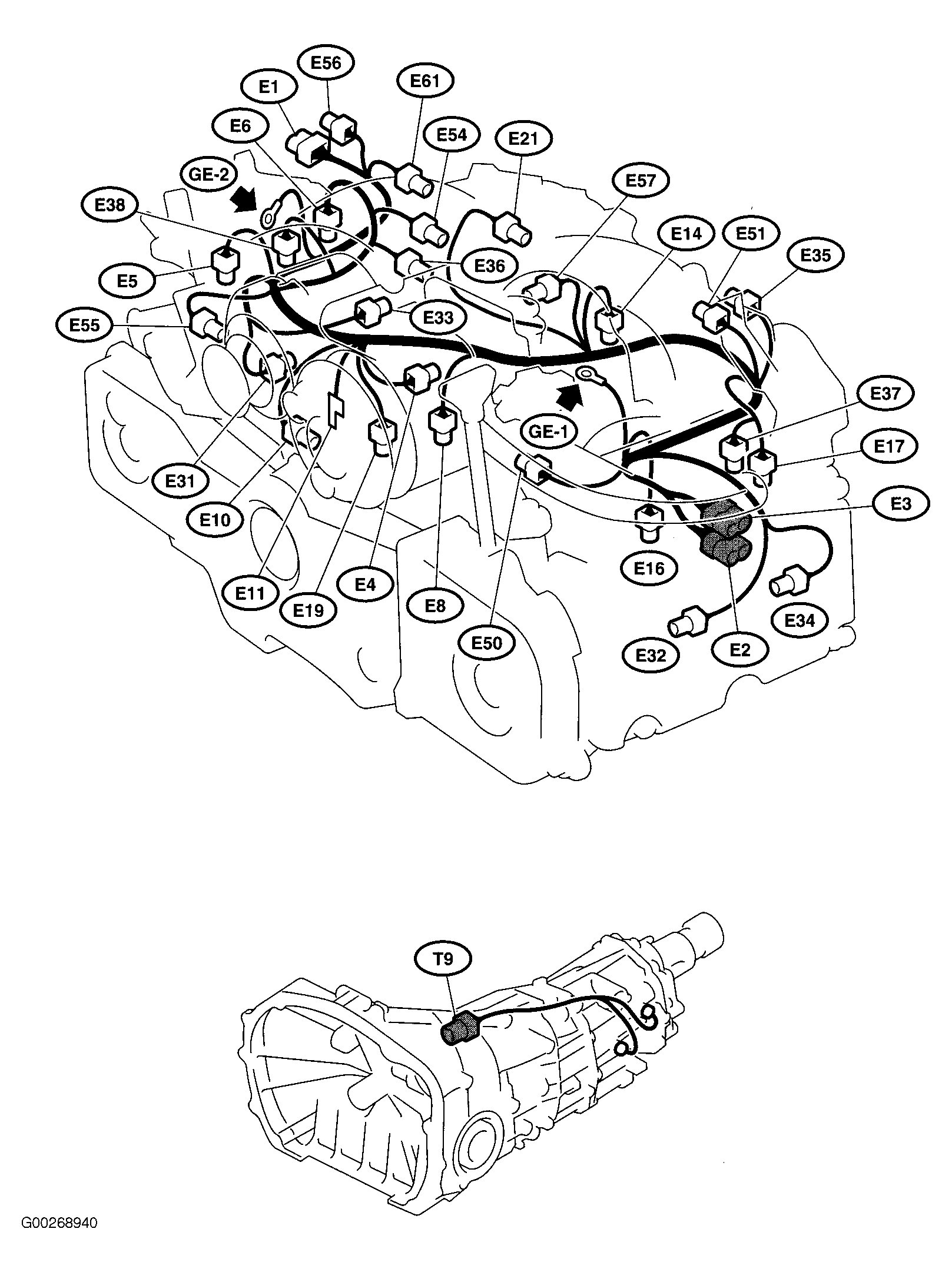

Fig 8: Engine & Transmission (2.5L HO Turbo)

Courtesy of SUBARU OF AMERICA, INC.

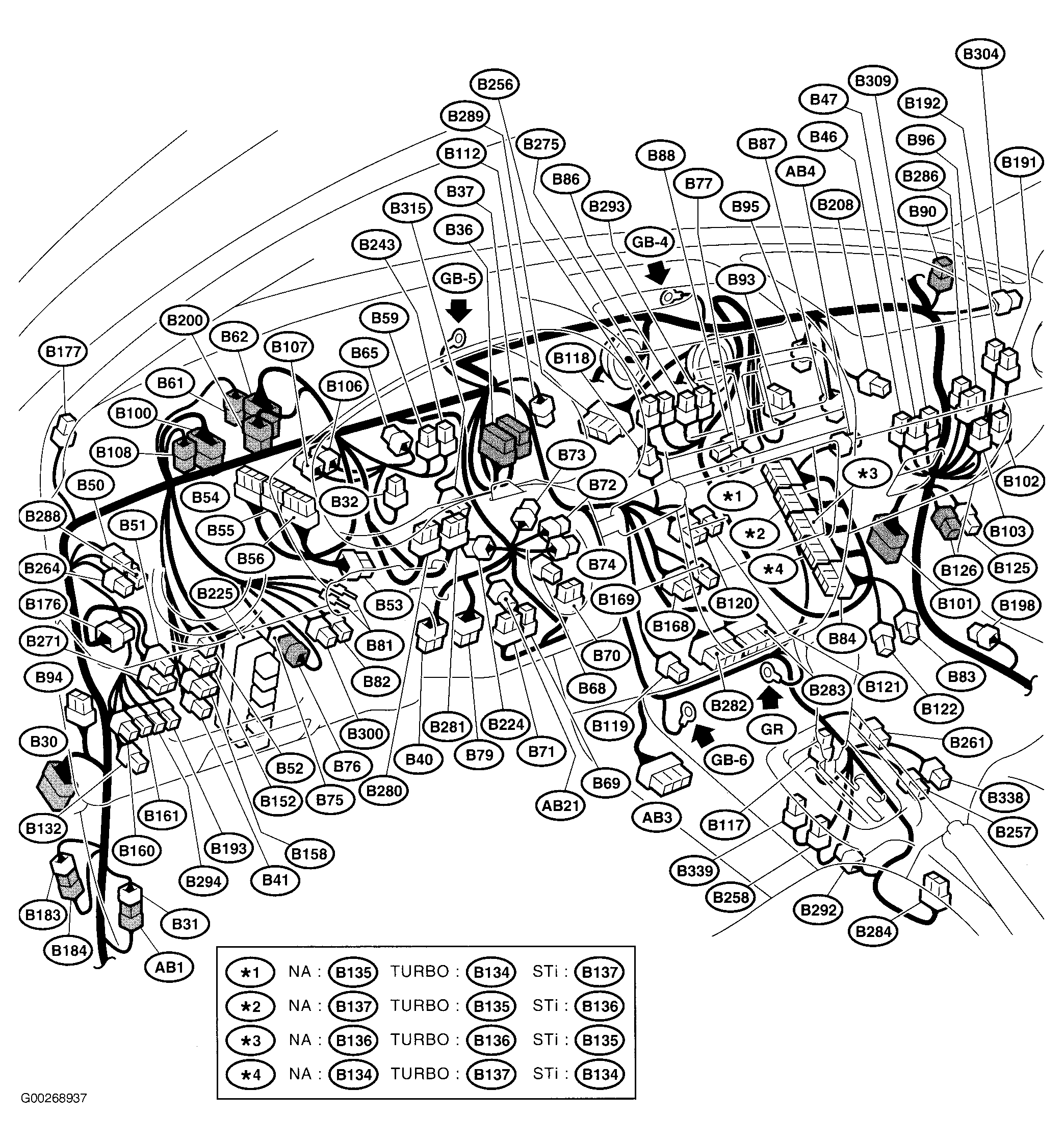

Fig 9: Center Of Dash

Courtesy of SUBARU OF AMERICA, INC.

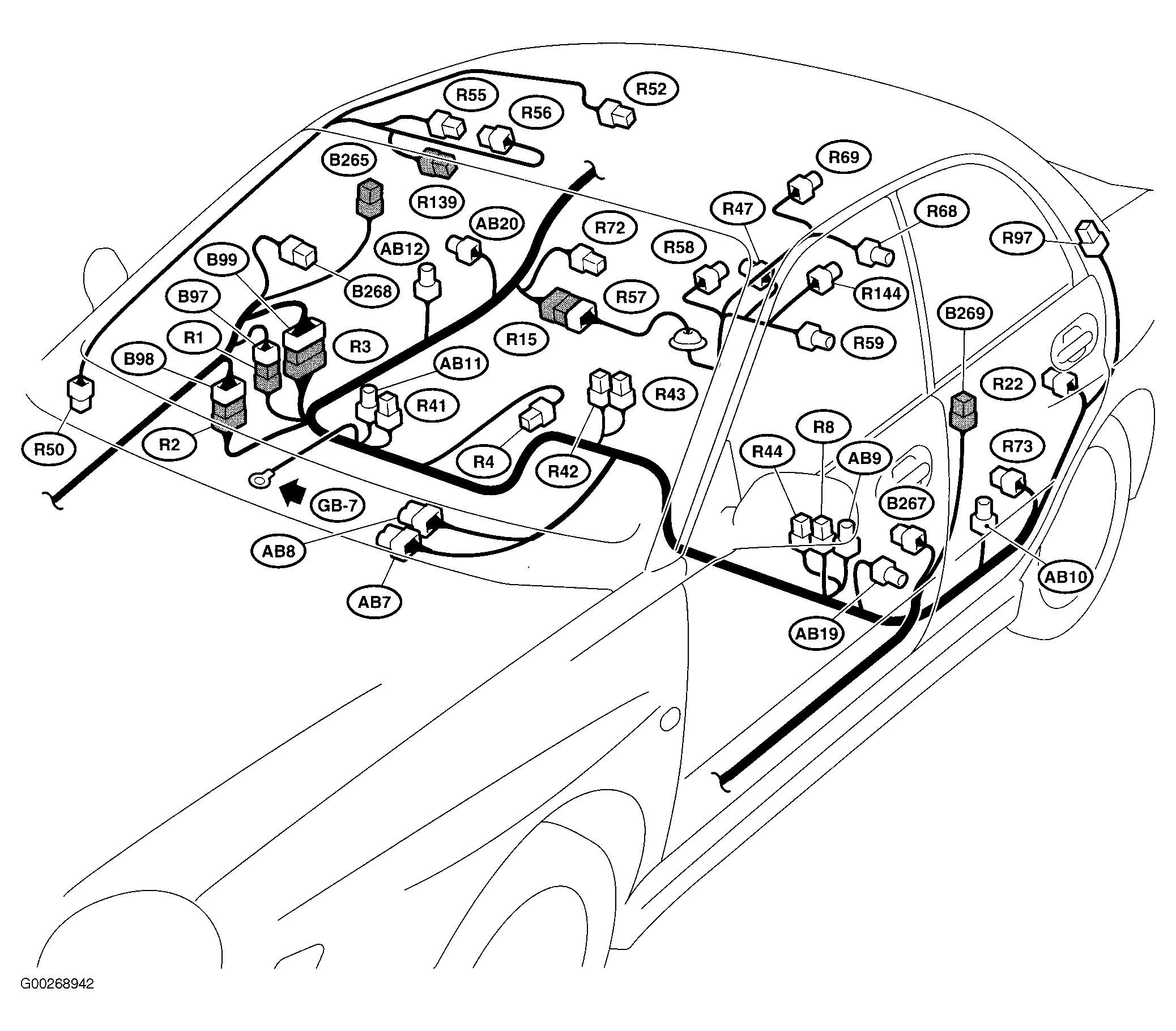

Fig 10: Roof & Passenger Compartment

Courtesy of SUBARU OF AMERICA, INC.

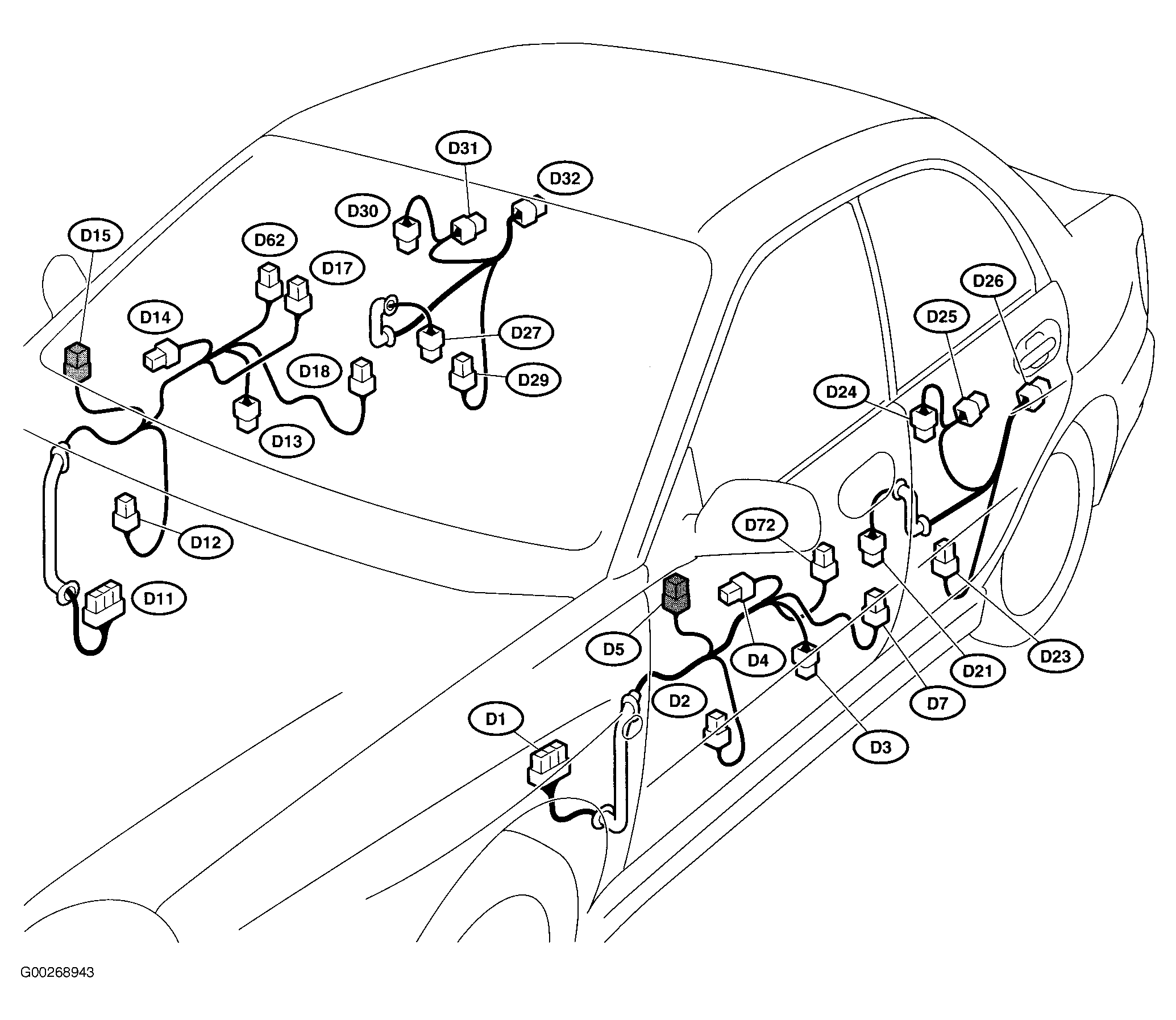

Fig 11: Doors

Courtesy of SUBARU OF AMERICA, INC.

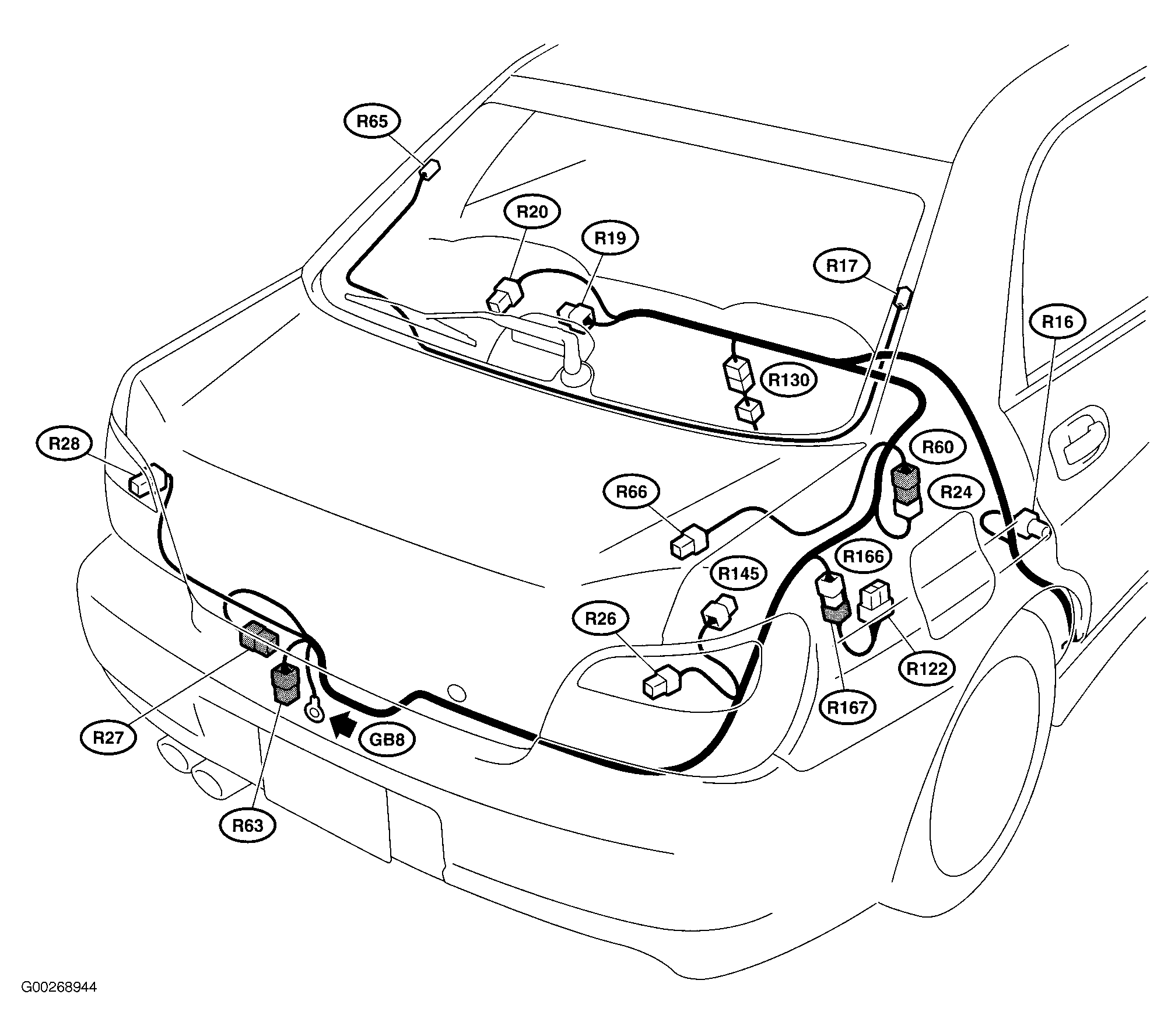

Fig 12: Trunk (Sedan)

Courtesy of SUBARU OF AMERICA, INC.

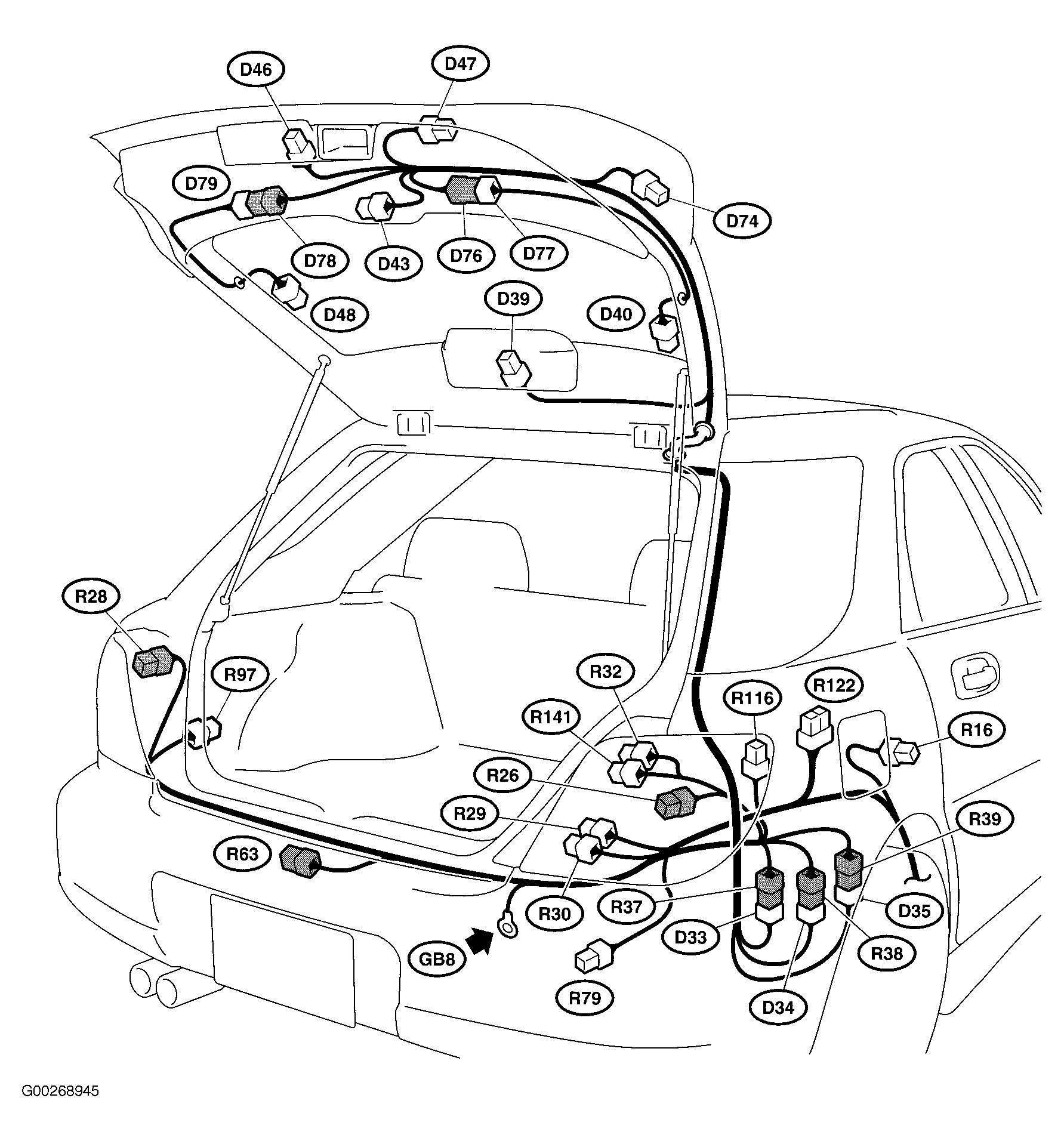

Fig 13: Rear Gate & Luggage Room (Wagon)

Courtesy of SUBARU OF AMERICA, INC.
