Front Vehicle Speed Sensor: Installation

  1. Pass the harness assembly through the hole in the transmission case.

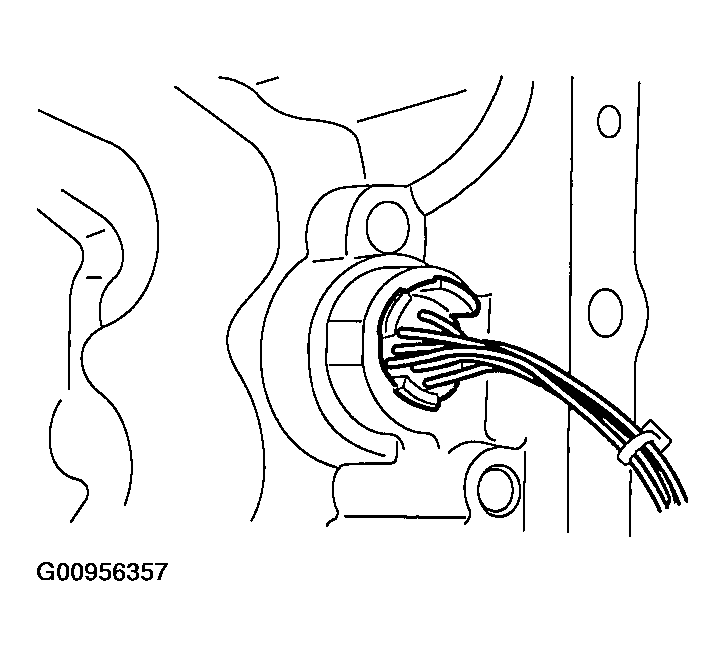

    Fig 1: Passing Harness Assembly Through Hole In Transmission Case
    G00956357Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the harness connectors and ATF temperature sensor.

    Connect the connectors of same color, and secure the harness to valve body using clips.

    Tightening torque (Transmission ground cable ATF temperature sensor)

    8 N.m (0.8 kgf-m, 5.8 ft-lb)

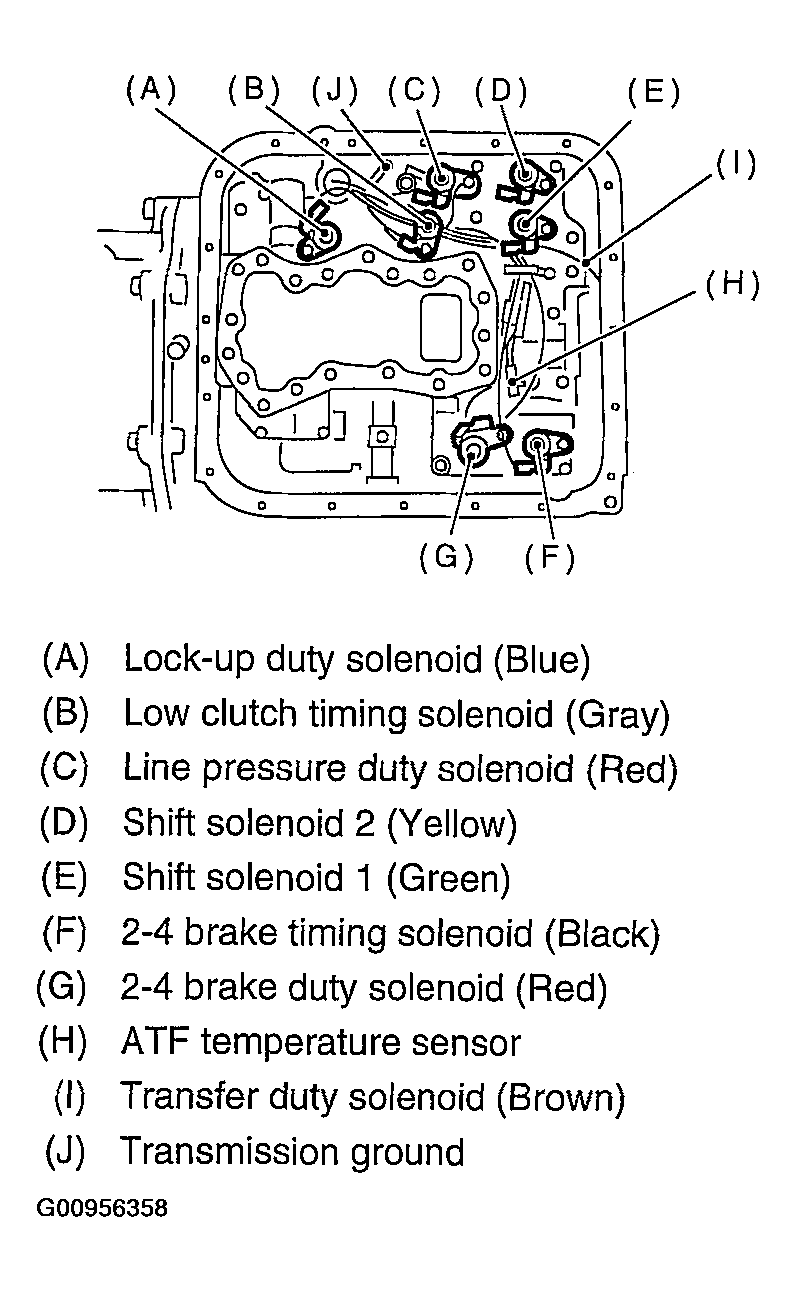

    Fig 2: Connecting Harness Connectors And ATF Temperature Sensor
    G00956358Courtesy of SUBARU OF AMERICA, INC.
  3. Apply proper amount of liquid gasket to the entire oil pan mating surface.

    Fluid packing:

    THREE BOND 1217B (Part No. K0877YA020)

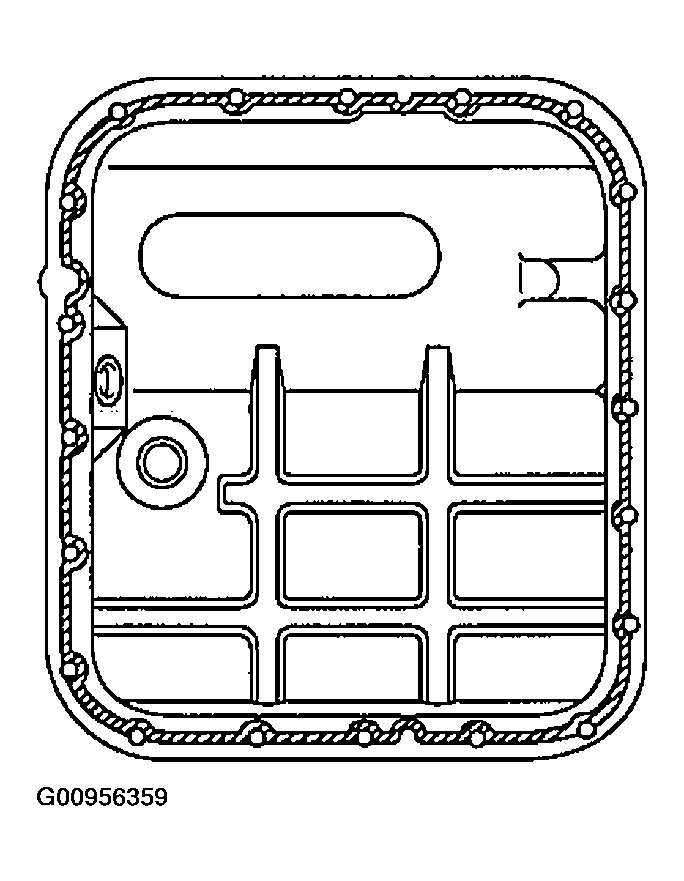

    Fig 3: Applying Proper Amount Of Liquid Gasket To Entire Oil Pan Mating Surface
    G00956359Courtesy of SUBARU OF AMERICA, INC.
  4. Apply liquid gasket fully to three holes other than screw holes on transmission case.

    Fluid packing:

    THREE BOND 1217 B (Part No. K0877YA020)

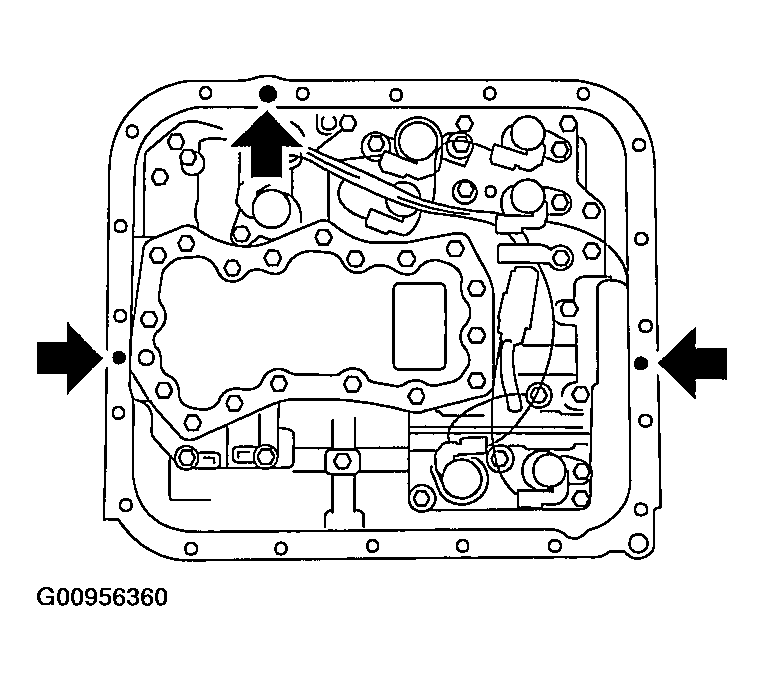

    Fig 4: Applying Liquid Gasket Fully To Three Holes Other Than Screw Holes On Transmission Case
    G00956360Courtesy of SUBARU OF AMERICA, INC.
  5. Install the oil pan.

    Tightening torque:

    5 N.m (0.5 kgf-m, 3.6 ft-lb)

  6. Install the front and rear vehicle speed sensor, and also the torque converter turbine speed sensor, and then fasten the harness.

    Tightening torque:

    7 N.m (0.7 kgf-m, 5.1 ft-lb)

  7. Install the oil cooler pipes.
    NOTE: Be sure to use a new copper washer.

    Tightening torque:

    T1: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

    T2: 44 N.m (4.5 kgf-m, 32.5 ft-lb)

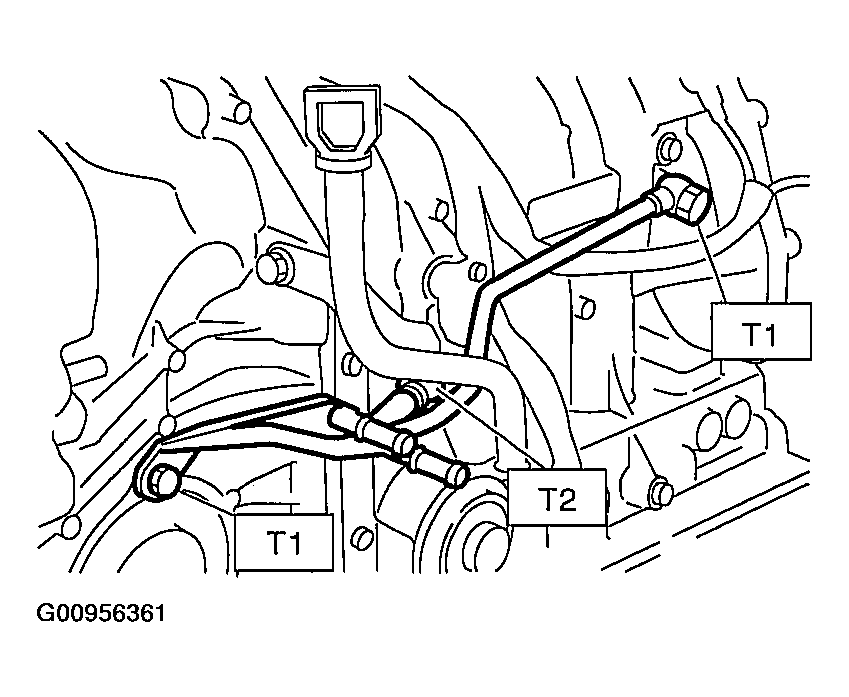

    Fig 5: Installing Oil Cooler Pipes
    G00956361Courtesy of SUBARU OF AMERICA, INC.
  8. Install the transmission rear crossmember bolts.

    Tightening torque:

    70 N.m (7.1 kgf-m, 51 ft-lb)

  9. Install the propeller Shaft. < Ref. to INSTALLATION .>
  10. Install the shield cover. (If equipped)
  11. Install the front, center, rear exhaust pipes and muffler. (Non-turbo model)

    < Ref. to EX (H4SO)-5, INSTALLATION, Front Exhaust Pipe.>, < Ref. to EX (H4SO)- 8, INSTALLATION, Rear Exhaust Pipe.> and < Ref. to INSTALLATION .>

  12. Install the center, rear exhaust pipes and muffler. (Turbo model)

    < Ref. to EX (H4DOTC)-9, INSTALLATION, Center Exhaust Pipe.>, < Ref. to INSTALLATION .> and < Ref. to INSTALLATION .>

  13. Lower the vehicle.
  14. Install the transmission connector to the stay.
  15. Install the pitching stopper. < Ref. to TRANSMISSION MOUNTING SYSTEM .>
  16. Install the air cleaner case. (Non-turbo model)

    < Ref. to INSTALLATION .>

  17. Install the intercooler. (Turbo model)

    < Ref. to INSTALLATION .>
