Transmission Control Module (TCM): Installation

  1. Install the TCM.

    Tightening torque:

    7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

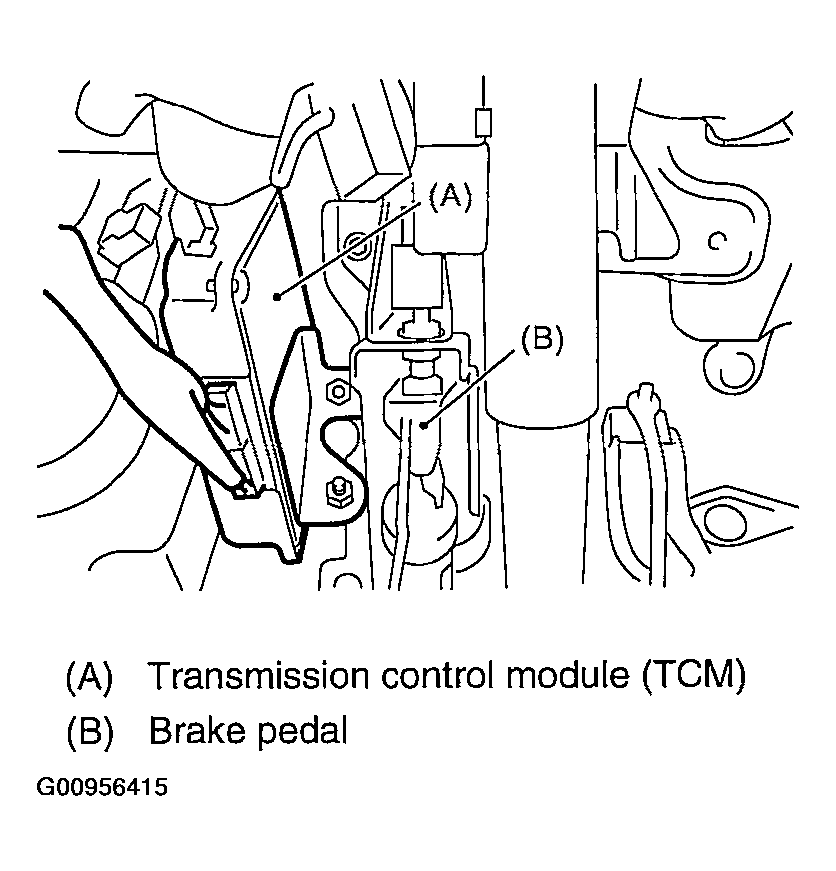

    Fig 1: Installing TCM
    G00956415Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the connectors to TCM.
  3. Install in the reverse order of removal.
