AT Shift Lock System
>>
Electrical Specification
Electrical Specification

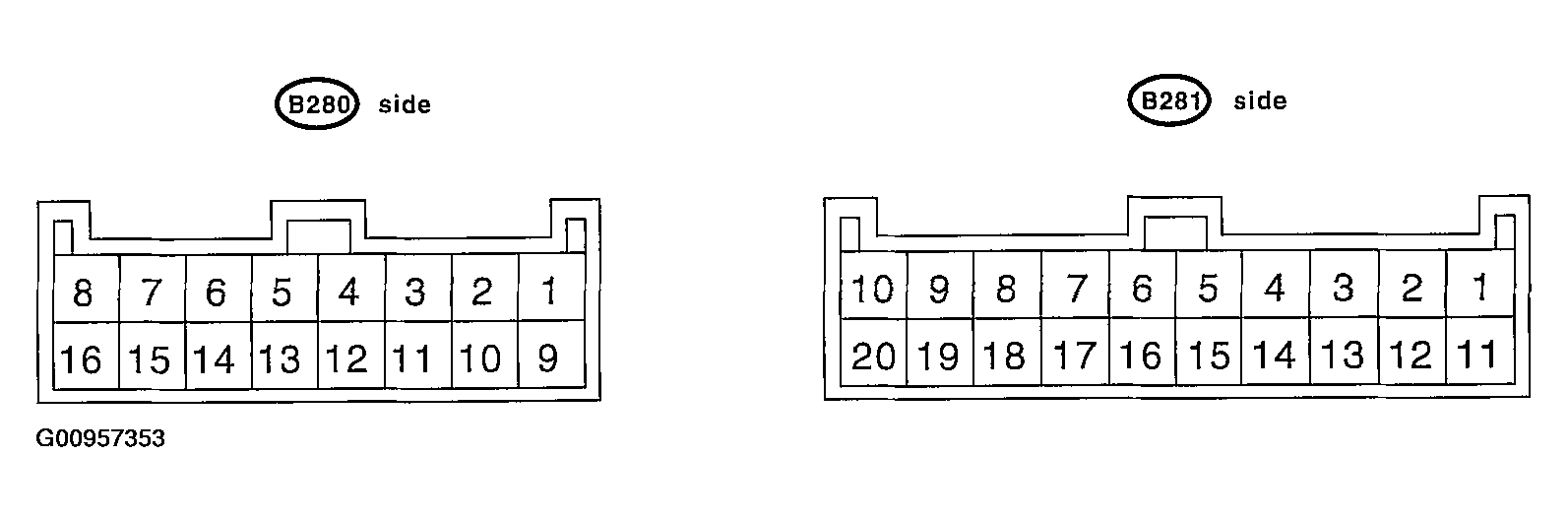

Fig 1: Identifying Connector Terminals
Courtesy of SUBARU OF AMERICA, INC.

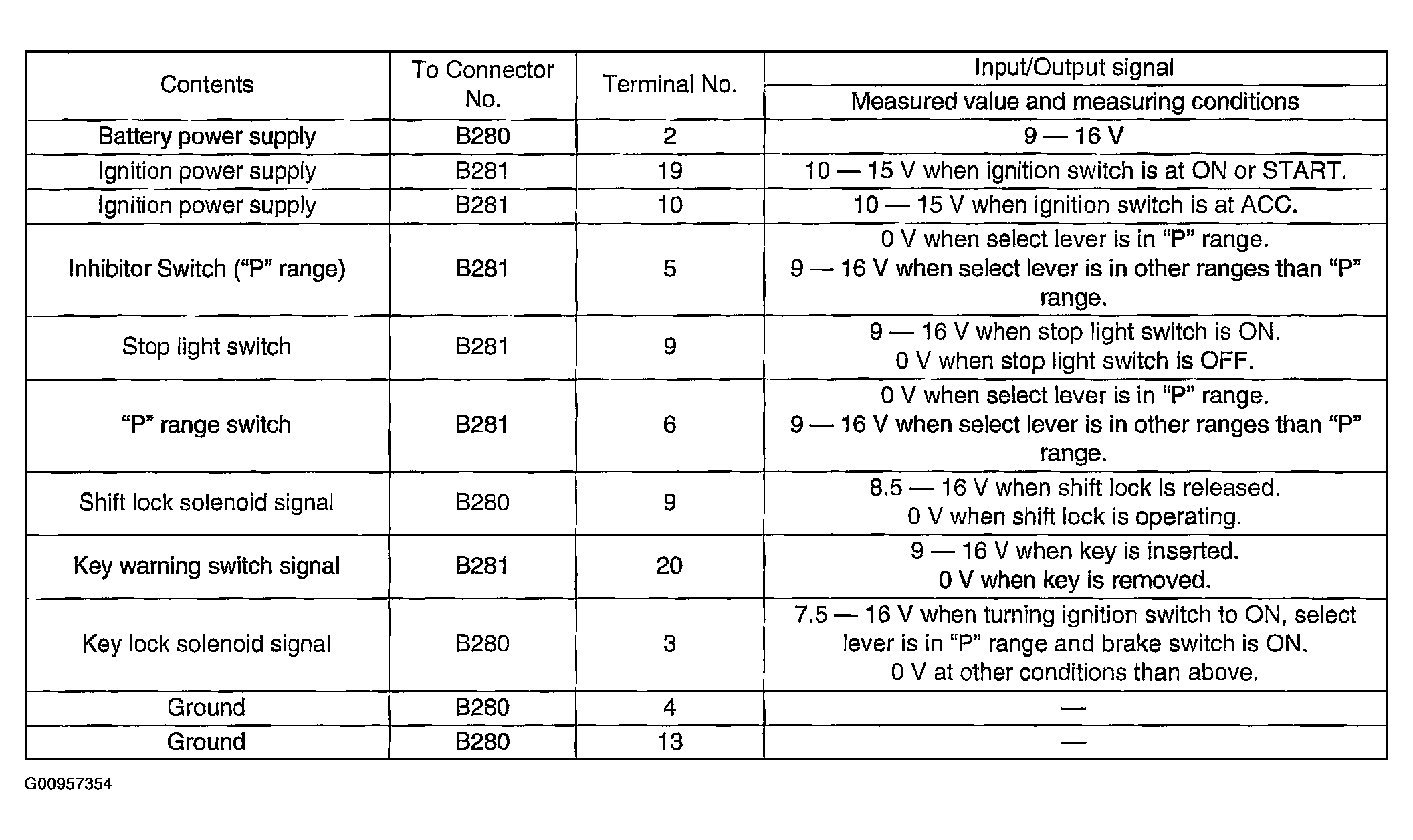

Fig 2: Connector Terminals Specification Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
