Knock Sensor: Installation

  1. Install knock sensor to cylinder block.

    Tightening torque:

    1. 25 N.m (2.5 kgf-m, 18 ft-lb)
    NOTE: For the knock sensor's installation angle, refer to the figure below.

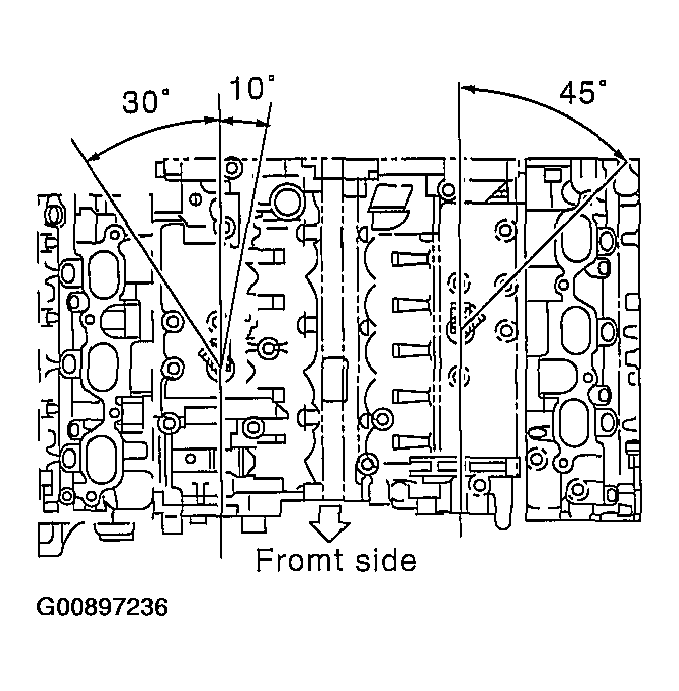

    Fig 1: Identifying Knock Sensor's Installation Angle
    G00897236Courtesy of SUBARU OF AMERICA, INC.
  2. Connect knock sensor connector.
  3. Install intake manifold. Refer to INSTALLATION , Intake Manifolds.
  4. Connect battery ground cable.

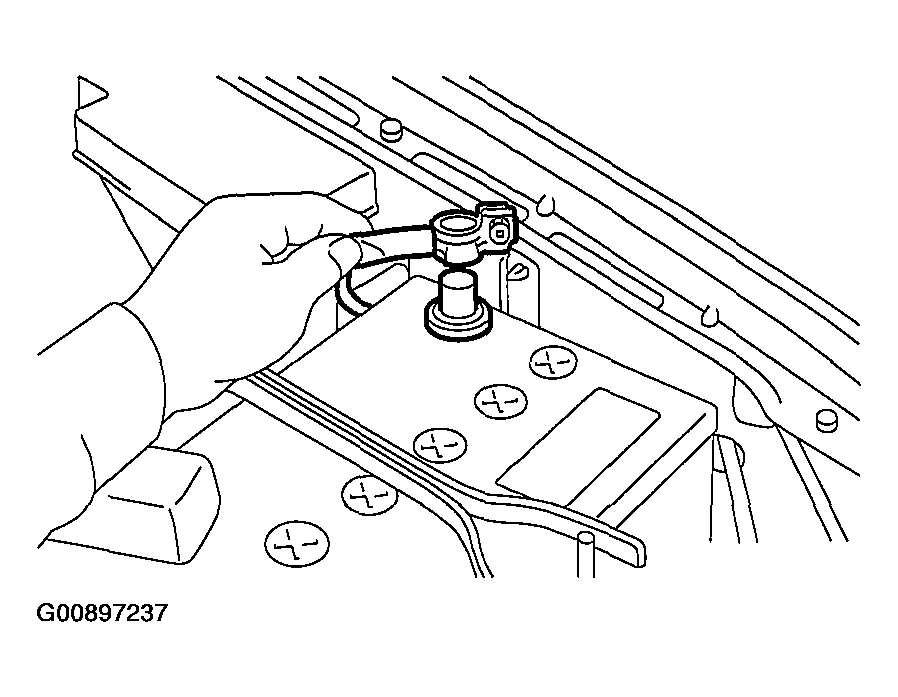

    Fig 2: Connecting Battery Ground Cable
    G00897237Courtesy of SUBARU OF AMERICA, INC.
