Electrical Specification

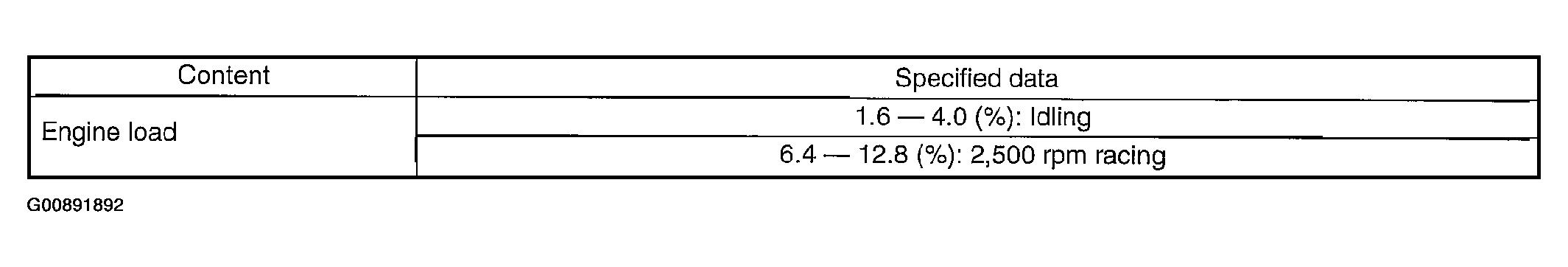

Fig 1: Electrical Specification

G00891892

Courtesy of SUBARU OF AMERICA, INC.

Measuring condition:

After warm-up the engine.
Gear position is in "N" or "P" position.
A/C is turned OFF.
All accessory switches are turned OFF.
