Inspection Mode: Operation: Notes

Carry out trouble diagnosis shown in the following DTC table.

When performing trouble diagnosis which is not shown in the DTC table, refer to the next item Drive cycle.

Refer to DRIVE CYCLE .

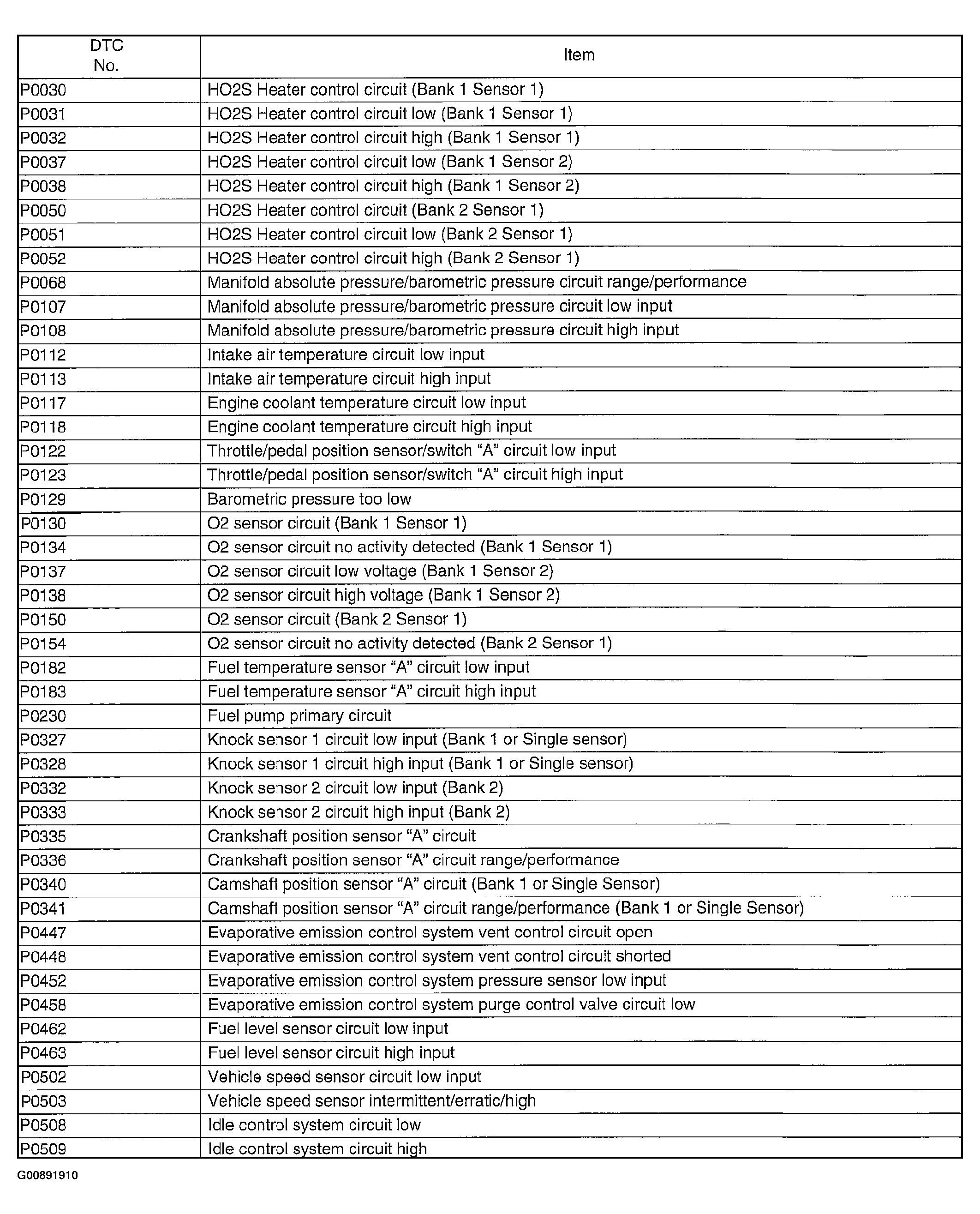

Fig 1: Diagnostic Trouble Code Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

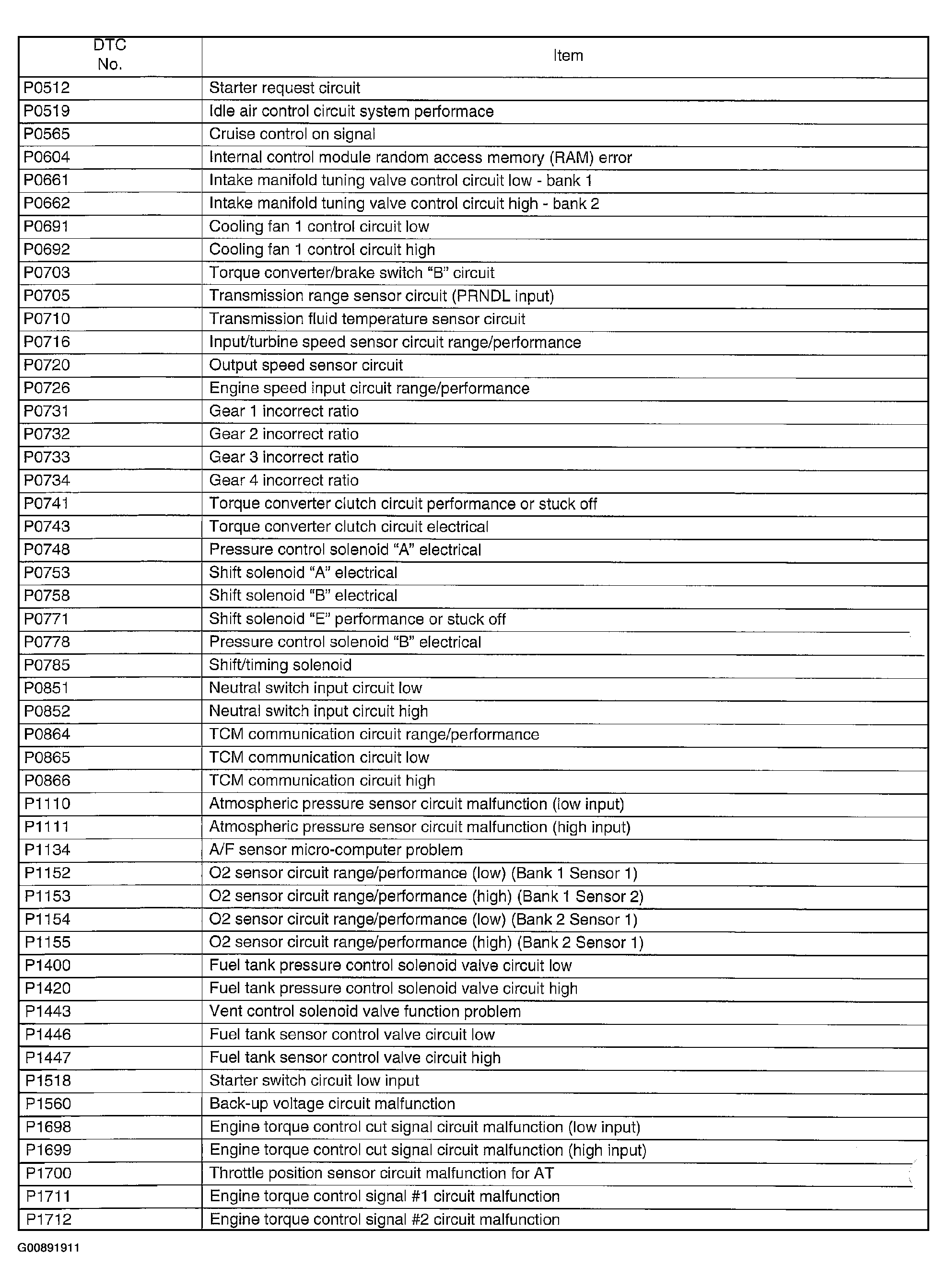

Fig 2: Diagnostic Trouble Code Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
