Datum Dimensions: Measurement: Notes

Refer to LOCATION for details on measurement points. < Ref. to , LOCATION , Datum Points. >

NOTE:

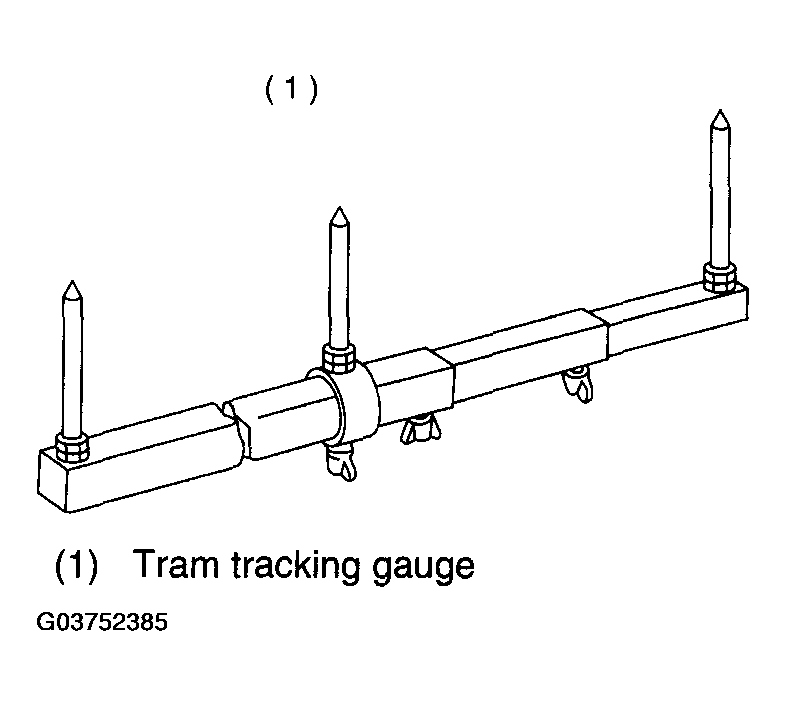

Using a tram tracking gauge, measure all the dimensions.
When using a tape measure, carefully measure dimensions without letting the tape measure sag or twist.
Measure the linear dimensions between cores of holes.
Suffixes "RH" and "LH" indicate right-hand and left-hand.

Fig 1: Measuring Linear Dimensions Between Cores
Courtesy of SUBARU OF AMERICA, INC.

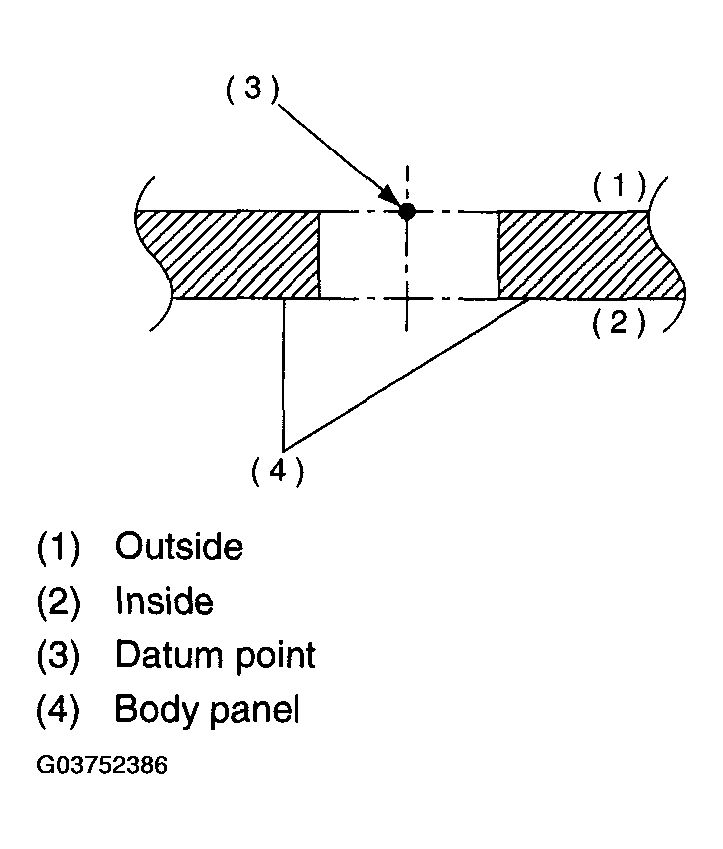

Measure at the center of the circle around the outside of the body panel.

Fig 2: Measuring Center Of Circle Around Outside Of Body Panel
Courtesy of SUBARU OF AMERICA, INC.
