Outer Mirror Assembly: Removal

  1. Remove door trim. < Ref. to REMOVAL , Front Door Trim . >
  2. Pull off sealing cover to disconnect outer mirror harness connector.

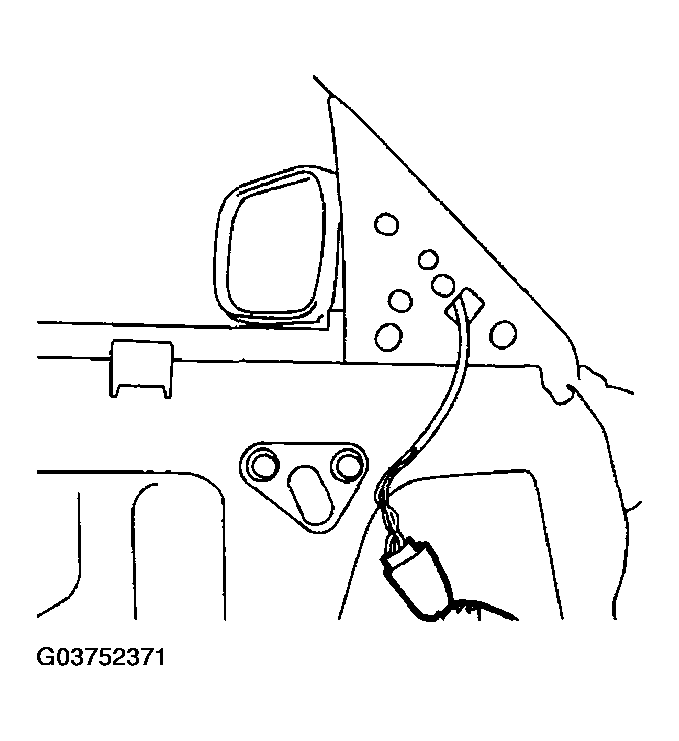

    Fig 1: Identifying Outer Mirror Assembly
    G03752371Courtesy of SUBARU OF AMERICA, INC.
  3. Remove screws to remove outer mirror assembly.

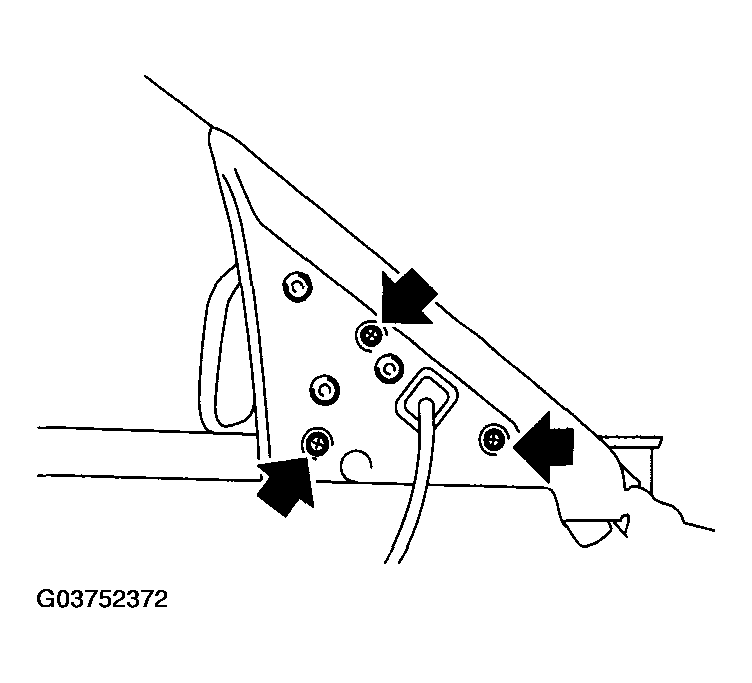

    Fig 2: Removing Outer Mirror Assembly
    G03752372Courtesy of SUBARU OF AMERICA, INC.
