Power Window Control Switch: Removal: Sub-Switch

Remove two hooks (A) of switch panel to remove power window sub-switch and disconnect electrical connector.

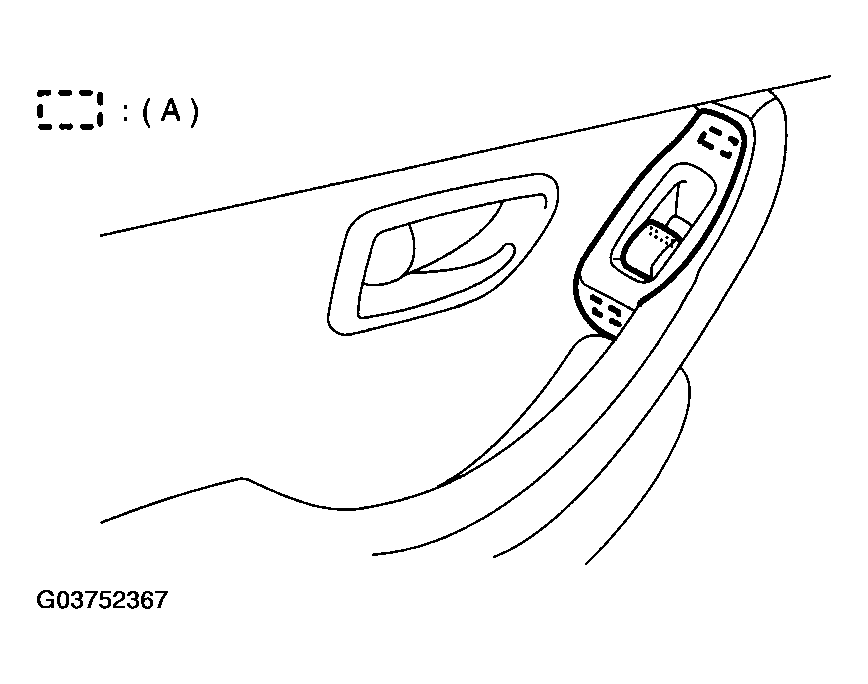

Fig 1: Disconnecting Electrical Connector
G03752367Courtesy of SUBARU OF AMERICA, INC.
