Instrumentation/Driver Info: Speedometer: Inspection

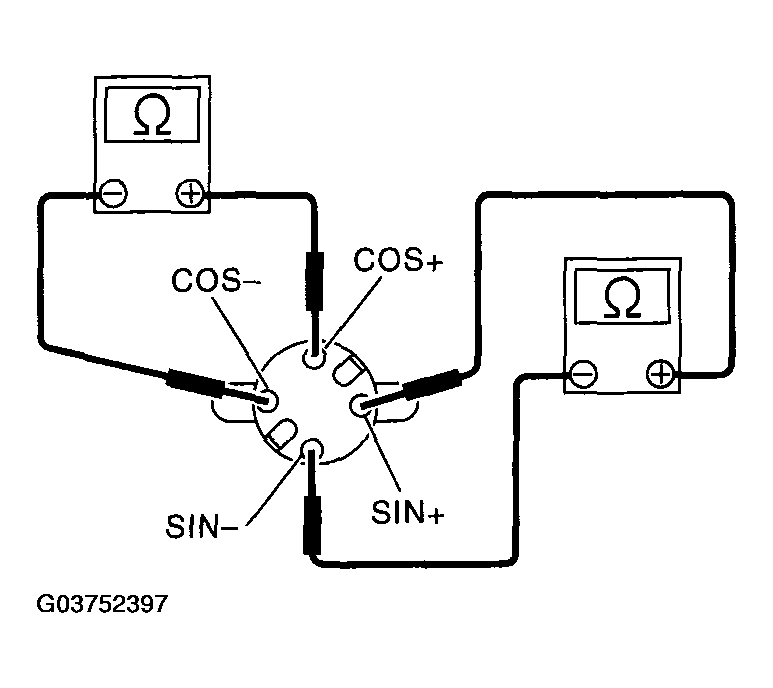

Measure speedometer resistance.
Courtesy of SUBARU OF AMERICA, INC. SPEEDOMETER TERMINAL RESISTANCE
| Terminal |
Resistance |
| Terminals SIN+ and SIN- |
200°8 ohm |
| Terminals COS+ and COS- |
200°8 ohm |
If NG, replace speedometer and fuel gauge assembly.
If OK, replace combination meter printed circuit.
